drew & jonathan P307DJ232 Manual

A
x1 Table Top
x1 Dessus de table
x1 Tablero de mesa
C
∅
x4 Flat Washer 5/16"x19mm
∅
x4 Rondelle plate 5/16"x19mm
∅
x4 Arandela plana 5/16"x19mm
Page 1 of 3

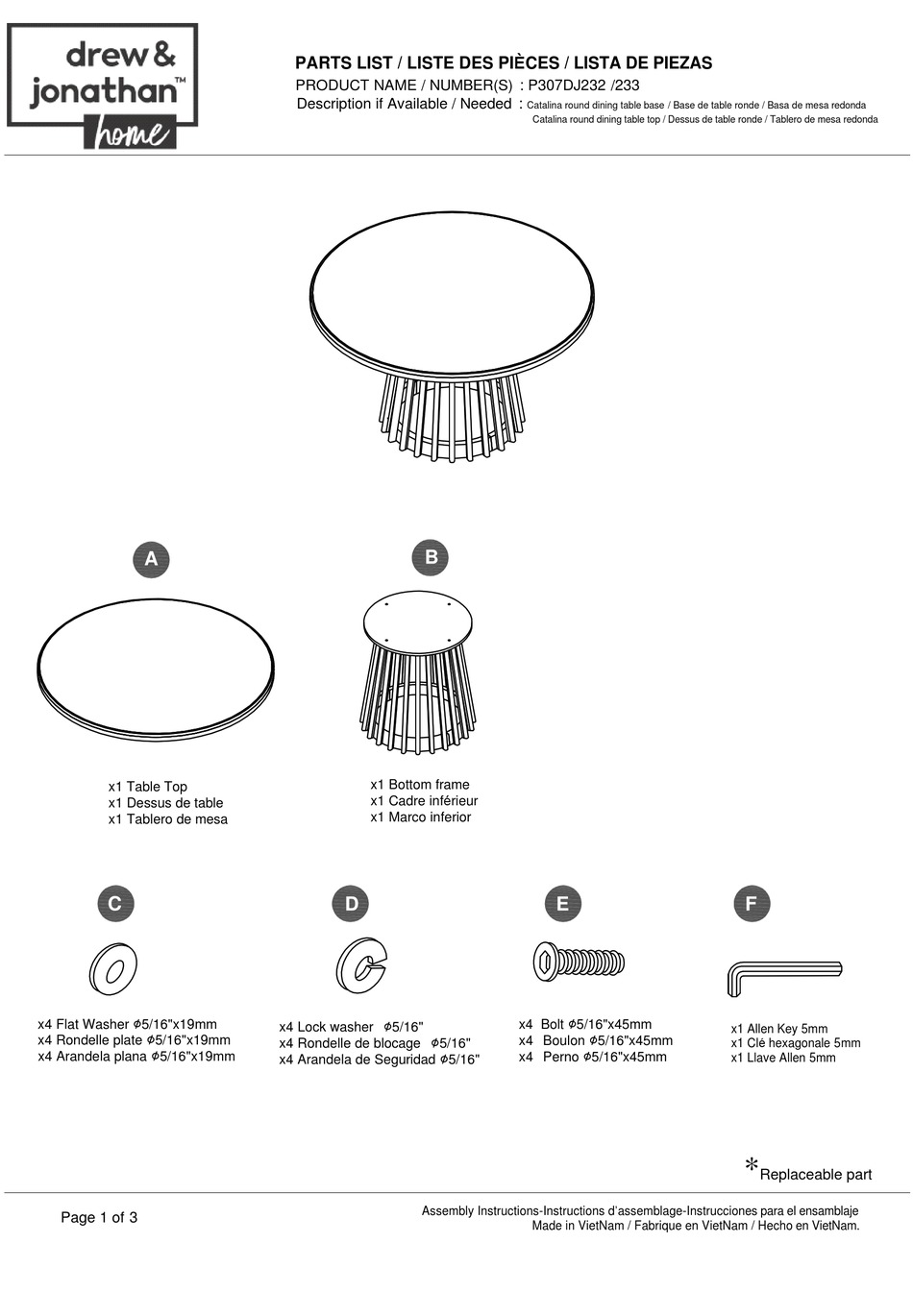

PARTS LIST / LISTE DES PIÈCES / LISTA DE PIEZAS
PRODUCT NAME / NUMBER(S) : P307DJ232 /233
Description if Available / Needed :
B
x1 Bottom frame
x1 Cadre inférieur
x1 Marco inferior
D
∅
x4 Lock washer 5/16"
∅
x4 Rondelle de blocage 5/16"
∅
x4 Arandela de Seguridad 5/16"
Assembly Instructions-Instructions d'assemblage-Instrucciones para el ensamblaje

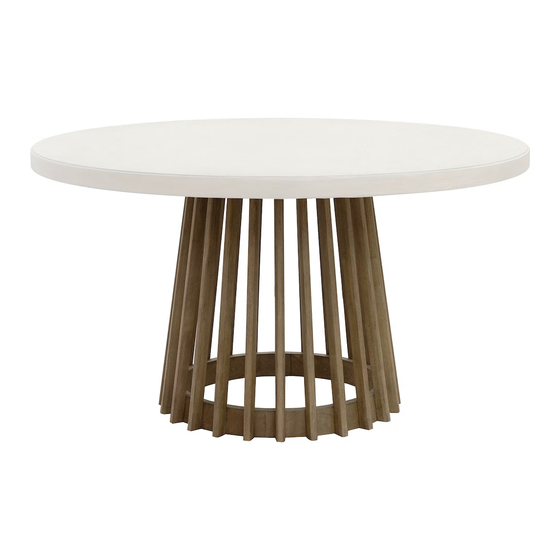

Catalina round dining table base / Base de table ronde / Basa de mesa redonda
Catalina round dining table top / Dessus de table ronde / Tablero de mesa redonda
E
∅
x4 Bolt 5/16"x45mm
∅
x4 Boulon 5/16"x45mm
∅
x4 Perno 5/16"x45mm
Made in VietNam / Fabrique en VietNam / Hecho en VietNam.
F
x1 Allen Key 5mm
x1 Clé hexagonale 5mm
x1 Llave Allen 5mm
*
Replaceable part
