drew & jonathan P307DJ230 Assembly Instructions

A
x1 Top frame
x1 Cadre supérieur
x1 Armazón superior
D
∅
x10 Flat Washer 5/16"x19mm
∅
x10 Rondelle plate 5/16"x19mm
∅
x10 Arandela plana 5/16"x19mm
Page 1 of 3

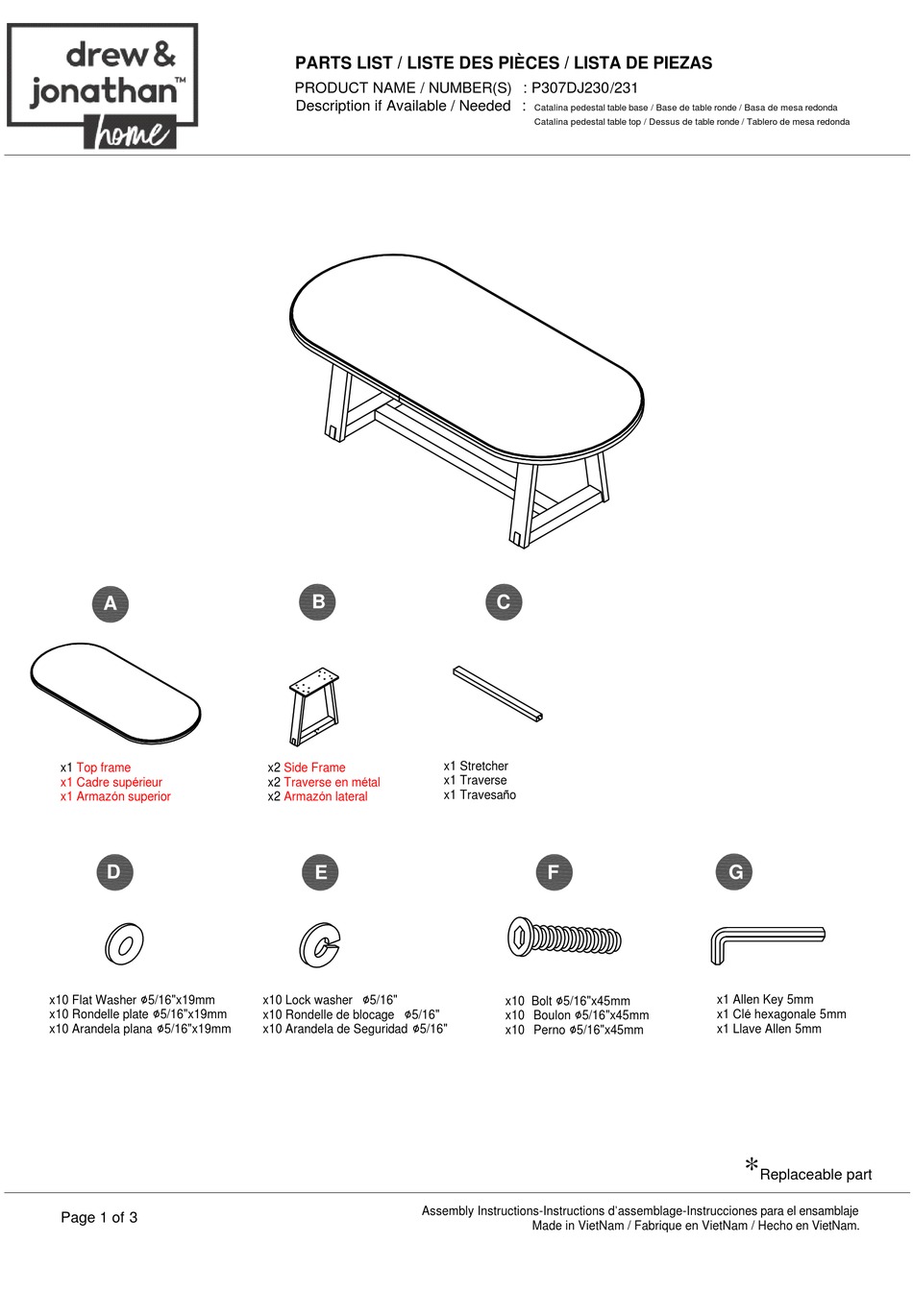

PARTS LIST / LISTE DES PIÈCES / LISTA DE PIEZAS
PRODUCT NAME / NUMBER(S) : P307DJ230/231
Description if Available / Needed :
B
x2 Side Frame
x2 Traverse en métal
x2 Armazón lateral
E
∅
x10 Lock washer 5/16"
∅
x10 Rondelle de blocage 5/16"
∅
x10 Arandela de Seguridad 5/16"
Assembly Instructions-Instructions d'assemblage-Instrucciones para el ensamblaje

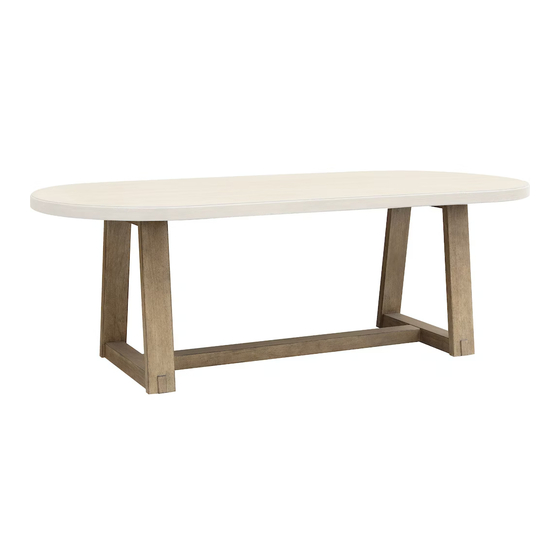

Catalina pedestal table base / Base de table ronde / Basa de mesa redonda
Catalina pedestal table top / Dessus de table ronde / Tablero de mesa redonda
C
x1 Stretcher
x1 Traverse
x1 Travesaño
F
∅
x10 Bolt 5/16"x45mm
∅
x10 Boulon 5/16"x45mm
∅
x10 Perno 5/16"x45mm
Made in VietNam / Fabrique en VietNam / Hecho en VietNam.
G
x1 Allen Key 5mm
x1 Clé hexagonale 5mm
x1 Llave Allen 5mm
*
Replaceable part
