drew & jonathan California P307DJ180 Assembly Instructions

A
x1 Headboard panel
x1 Tête de lit
x1 Panel de la cabecera
E
x10 Center leg
x10 Pattes centrales
x10 Patas centrales
I
∅
x8 Hex nut 5/16"
∅
x8 Écrou hexagonal
5/16"
∅
x8 Tuerca hexagona 5/16"
Page 1 of 3
PARTS LIST / LISTE DES PIÈCES / LISTA DE PIEZAS
PRODUCT NAME / NUMBER(S) : P307DJ180/181/187

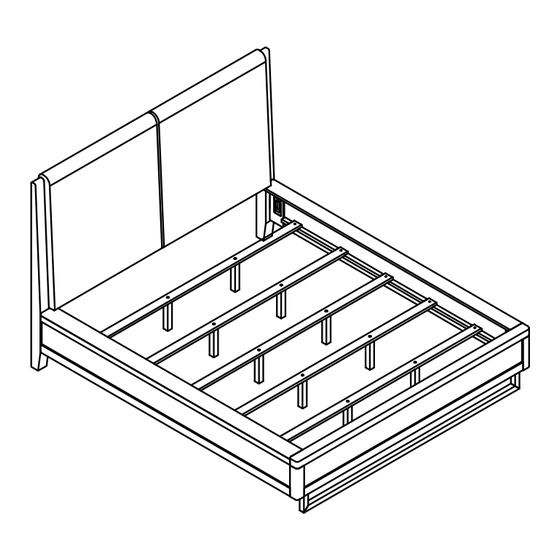

Description if Available / Needed : California king bed
B
x1 Footboard Panel
x1 Pied de lit
x1 Panel de pie de cama
F
∅
x8 Hanger bolt 5/16"x88mm
∅
x8 Boulon-vis 5/16"x88mm
∅
x8 Perno de suspensión 5/16"x88mm
J
∅
x1 Open wrench 5/16"
∅
x1 Clé à fourche
5/16"
∅
x1 Llave de boca 5/16"
Assembly Instructions-Instructions d'assemblage-Instrucciones para el ensamblaje
Très grand lit californien
Cama tamaño california king
C
x2 Side Rail
x2 Traverse
x2 Travesaño lateral
G
∅
x8 Flat Washer 5/16"x16x2mm
∅
x8 Rondelle plate 5/16"x16x2mm
∅
x8 Arandela plana 5/16"x16x2mm
K
x10 Wood Screw #8x25mm
x10 Vis à bois #8x25mm
x10 Tornillo para madera #8x25mm
Made in VietNam / Fabrique en VietNam / Hecho en VietNam.
D
x5 Slats
x5 Bancs de lit
x5 Listones
H
∅
x8 Lock washer 5/16"
∅
x8 Rondelle de blocage 5/16"
∅
x8 Arandela de Seguridad 5/16"
*
Replaceable part
