CALLS
Answering and making calls
Press
to answer an incoming call.
Dial the number and press
to make
a call.
Press an arrow key to open a call list
containing previously dialled numbers.
Call using
.
Press and hold an alphanumeric button
for two seconds to call a contact in the
phonebook.
During a call
Adjust the speaker volume using the
keys
and
.
Press
to turn off the microphone.
Press
to put the call on hold.
Both the microphone and the speaker are
turned off and the call is on hold.
Press the same button again to recon-
nect the call.
Making USB calls
Connect the Konftel 300IPx to a com-
puter using the USB cable provided.
Check that Konftel 300IPx USB Audio
is selected as the sound unit in the
computer's settings.
During a webmeeting, the Konftel
300IPx functions as a speaker and
microphone for the computer and the
LEDs show a steady blue light.
If you are in an active conference call,
incoming USB calls will be included.
MULTI-PARTY CALLS
Making multi-party calls
Press
during the call to get a new
dialling tone.
Calls in progress are put on hold.
Dial the new number.
Press the
(Conference) key to
connect the calls.
The conference guide
You can create groups of up to six people
via
> CONF. GUIDE > ADD GROUP.
Making conference group calls
Press the
(Conference) button and
choose a conference group. Press OK if
you want to see who is in the group and
to make the call.
The Konftel 300IPx dials all the contacts in
the group.
The box in front of a person's name fills as
soon as that person answers.
K O N F T E L . C O M

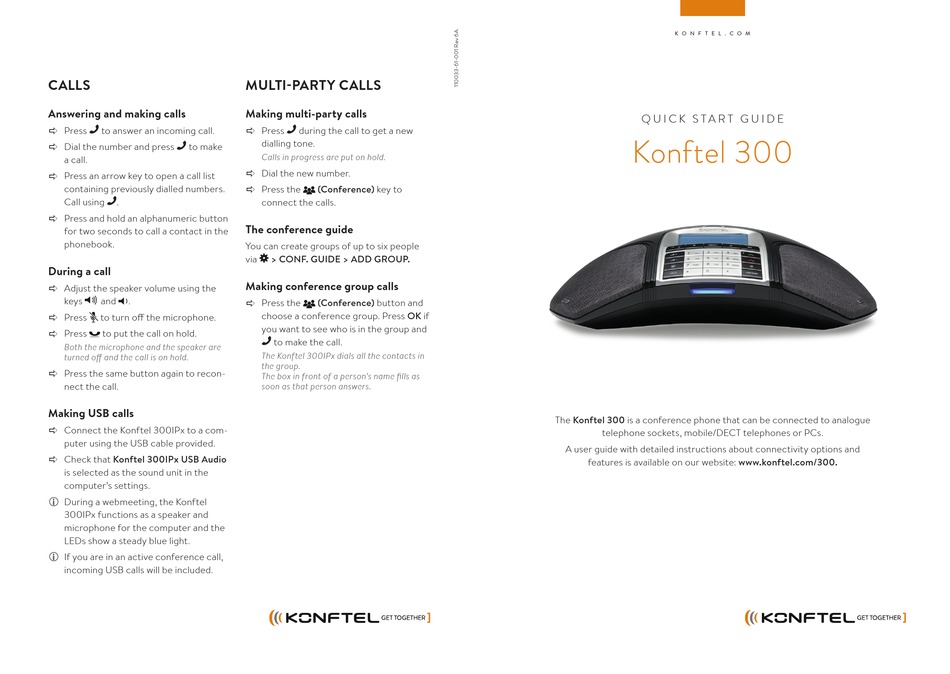

Q U I C K S T A R T G U I D E

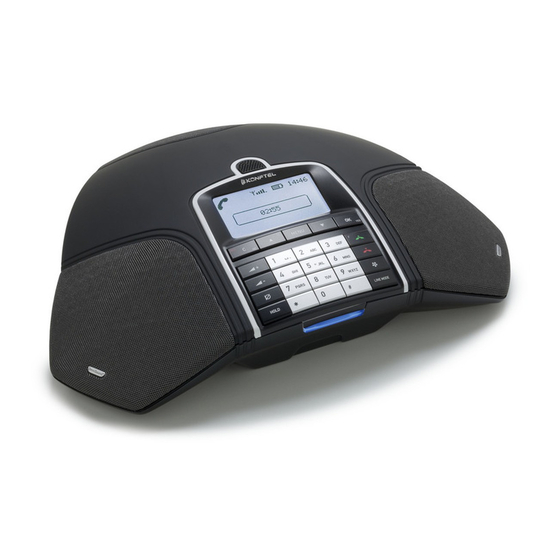

Konftel 300
The Konftel 300 is a conference phone that can be connected to analogue
telephone sockets, mobile/DECT telephones or PCs.
A user guide with detailed instructions about connectivity options and
features is available on our website: www.konftel.com/300.
