1.1
Features

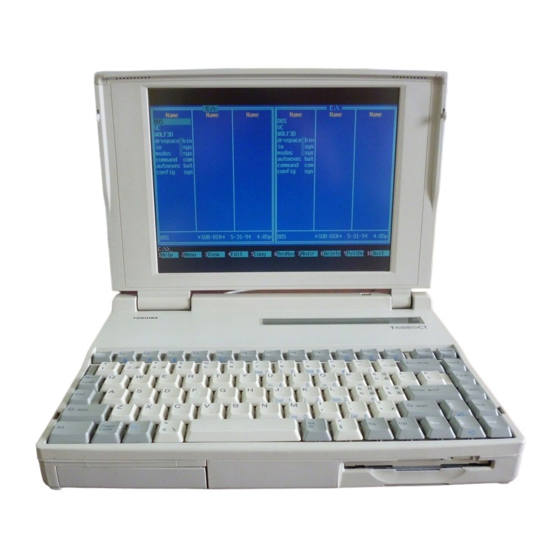

The Toshiba T4850CT is one of the lightest and most advanced portable computers available.
Utilizing advanced technology and high-speed components, the T4850CT offers excellent
color display legibility, battery operation and IBM PC/AT compatibility. The T4850CT
system unit consists of the following features:
Microprocessor
TM
The Intel DX4
3.3 Volts.
Math co-processor
The math co-processor is stored in the DX4.
Cache memory
16 KB of cache memory is stored in the DX4.
Disk storage
The T4850CT has an internal 2.5-inch 500 or 810 MB HDD. The 3.5-inch FDD
supports 2 HD (1.44 MB) floppy disks and 2DD (720 KB) floppy disks.
Memory
The T4850CT comes standard with 8 MB of CMOS Random Access Memory (RAM)
3.3 Volts. This includes 640 KB of conventional memory and 7,360 KB of extended
memory which can be utilized as expanded memory compatible with the Lotus/Intel/
Microsoft Expanded Memory Specifications (LIM-EMS).
TFT color LCD
The T4850CT has a high-resolution 10.4-inch full-color, Thin Film Transistor (TFT)
color LCD that displays 640 x 480 pixels.
The internal display controller supports VGA functions on the internal display and
SVGA functions on an external display.
Keyboard
An easy-to-use 82/84-key enhanced keyboard with full-size keys and standard spacing
is compatible with IBM standard software.
T4850CT
Processor (referred to as DX4 in this manual) operates at 75 MHz,
1-1
