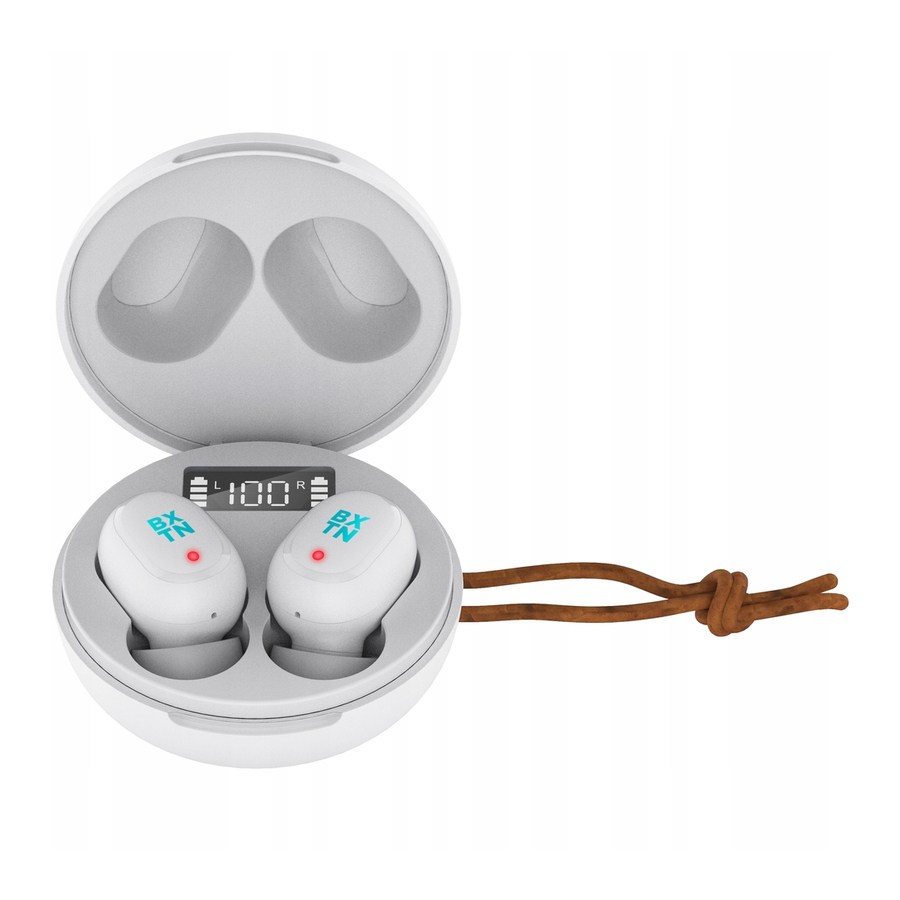

BUXTON REI-TW 051, REI-TW 052 - True Wireless Headphones Manual

Introduction

The Bluetooth headphones can be used with a compatible device that supports Bluetooth wireless technology. The headphones allow you to make up to two phone calls at the same time and enjoy listening to music according to your own taste. Please read this manual carefully before using the headphones, and also read the section of the operating instructions of your Bluetooth device. Observe the safety and maintenance information. Keep the headphones out of the reach of children.

Package contents

• Fully wireless headphones (left and right)
• Charging case
• Charging USB cable
• User's manual

Description

Technical specifications

Premium functions:
FWS – Fully wireless stereo sound
XTR BASS – DSP processing to boost bass

Control

Music playback mode

Call mode

1. Answer call: press any headphone.
2. End call: press any headphone twice.
3. Reject call: press and h0old for 1 second any headphone.

Wearing

Carefully insert the headphones into the ear canal and adjust the angle as needed.

Pairing

1. Remove the headphones from the charging case. The red and blue indicators flash and the headphones pair automatically. After successful pairing, the red and blue indicators of the main headphone will flash alternately, while the indicator of the sub headphone goes out.
2. Turn on the Bluetooth feature of your smartphone and search for available devices. Choose REI ‑TW 051 or REI ‑TW 052 from your list. Confirm the selection for the pairing to be successful.
3. If you no longer need the headphones, store them in the charging case. They turn off automatically.
4. To use again, remove the headphones from the charging case and it will automatically pair with your smartphone if it is within operating distance.

Notes:

• Headphones REI ‑TW 051 / 052 remember the previously connected devices. When you turn them on, the headphones will try to connect to the previously connected devices.
• The REI‑TW 051/052 headphones will automatically disconnect if you exceed the recommended Bluetooth distance from the device. And they will connect automatically if they reach the recommended distance from the device within 3 minutes of disconnection.
• Always follow the procedure to connect the headphones to each other before starting the pairing process with the mobile phone.

Before pairing the headphones, make sure that the volume of your BT device is at a minimum level to prevent possible damage to the headphones.
Do not use headphones for extended periods of time at higher volume. It may cause irreversible hearing damage.
Do not use headphones while driving, cycling, or other situations where rapid reaction is required or where your responses can not be limited by your environment.

Mono mode (using only one headphone)

Note: When using only one headphone, it suffices to remove only headphone from the charging case. If you remove both headphones before connecting, both headphones will be connected and used at the same time.

1. Remove one headphone from the charging case. The headphone turns on automatically and connects to the previously connected device.
2. To replace the headphones while playing music: remove the other headphone from the charging case and both headphones will connect automatically to play music. Then put the headphone you don't need in the charging case. The connection is automatically disconnected and the headphone turns off.
   Note: Receiving calls is fully functional.
3. Follow the instructions above how to operate both headphones for more functions.

Reset to factory settings

If the headphones cannot be paired or disconnect frequently, the factory settings must be restored.

1. Press and hold the buttons / touchpads on both headphones for 5 seconds, then insert both headphones into the charging case.
2. Remove the headphones from the charging case when the indicator light turns red for about 5 seconds. Factory reset is complete.

Charging

The last up to 150 hours in standby mode.

Charging case

When charging: the digits on the display flash.
Full charge: the display shows „100".
Charge time: about 2 hours

Headphones

When charging: the red indicator light is on and the indicators on the case display show the current battery status of each headphone.
Full charge: The red indicator light goes off and the indicators on the display show that the headphones are fully charged. Charge time: about 1.5 hour
Note: When charging the case, use the supplied charging cable and 5 V / 1 A charger.

Special notice: Do ot use adapters with fast charging function (higher than 5 V / 1 A) to prevent damage to the charging case.

Maintenance

• Do not use coarse cleaning agents to clean the headphones.
• Avoid contact with sharp objects, they could scratch or damage the headphones.
• Do not expose the headphones to extreme temperatures, humidity or dust.

Troubleshooting

The manufacturer is not liable for damages caused by incorrect use of the product.

Instructions and information about used packaging

Dispose of used packaging material at a place designated by the municipality for waste disposal.

Disposal of used electrical and electronic devices

This symbol on the products and / or accompanying documents means that used electrical and electronic products must not be disposed of with normal household waste For proper disposal, recovery and recycling, please take these products to designated collection points. Alternatively, in some European Union countries or other European countries, you may return your products to your local retailer when buying an equivalent new product.
The correct disposal of this product will help save valuable natural resources and help prevent potential negative consequences for the environment and human health, which could be caused by inappropriate waste handling. For more details, please contact your local authorities or the nearest collection site.
Penalties may be imposed for incorrect disposal of this type of waste, in accordance with national regulations.

For business entities in European Union countries

To dispose of electrical and electronic equipment, request the necessary information from your dealer or supplier.

Disposal in other countries outside the European Union

This symbol is valid in the European Union. To dispose of this product, request the necessary information about the correct disposal method from your local authorities or from your vendor.
This product complies with EU directives on electromagnetic compatibility and electrical safety.
Changes in text, design and technical specifications are subject to change without notice and we reserve the right to make changes.
Hereby FAST CR, a. s. declares that the type of radio equipment REI‑TW 051 and REI ‑TW 052 complies with Directive 2014/53 / EU.

Internet: www.buxton.eu
