NRS Healthcare S13909 User Instructions

S13909
General Safety Warning
Please make sure that you read and follow these
instructions carefully. Keep these instructions in a
safe place for future reference.
1. INTENDED USE

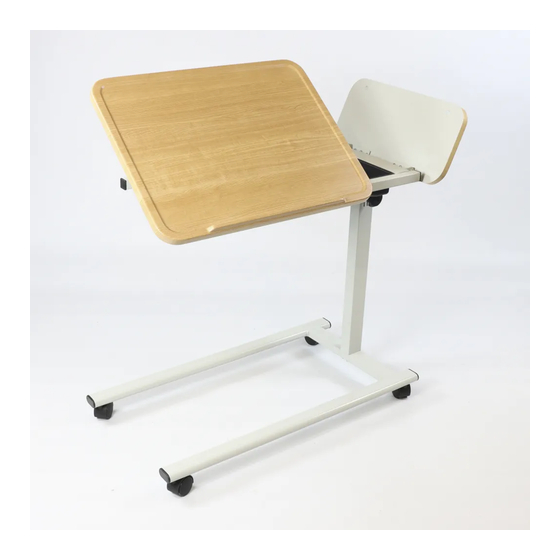

The Easylift Home Over-Bed Table has been designed to provides users with a fi rm, fl at / tilting surface that is suitable
for eating, writing, reading etc. The height can be easily adjusted from 710mm to 1090mm, and the main tabletop can
be tilted from 0° to 40° degrees. The single column construction and adjustable height makes this product suitable for
use with most divan beds, slatted beds, and height adjustable medical beds. A discrete storage tray has been cleverly
hidden under the folding side table.
2. SAFETY
WARNING: The central column is spring loaded.
Make sure the central column hand-wheel is in
position & fully tightened before assembly/
disassembly of the table.
WARNING: Do not exceed the safe working load of
25kg (4st).
WARNING: Do not exceed the safe working load of the
storage tray 1kg.
ALWAYS make sure that the table is correctly
positioned and adjusted to allow it to be used safely and
comfortably.
DO NOT lean or sit on the table.
DO NOT place hot objects directly on the table surface.
Maximum heat resistance 65°C (149°F).
MAKE SURE the area is clear before moving the table.
MAKE SURE the tabletop is clear before tilting the
angle.
TAKE CARE when moving the table over rough or
uneven surfaces. Lift the table over large ridges and
wide gaps.
ENTRAPMENT HAZARD: Do not use this product
within 318 mm of headboard or other similar object.
ENTRAPMENT HAZARD: Take care of fi ngers when
opening and closing the tabletops.
ENTRAPMENT HAZARD: Always move the table to a
safe location when the user is sleeping.
EASYLIFT HOME - HEIGHT ADJUSTABLE
TILTING OVER-BED TABLE
Height Adjustable Tilting Over-Bed Table
USER INSTRUCTIONS
3. UNPACKING
Remove the packaging and check all parts carefully.
Contact your supplier immediately if parts are missing or
damaged and do not try and assemble.
3.1 Contents:
9
1. Table Top Assembly x 1
2. Column Assembly & Inner Rod x 1
Note: Do not remove the PVC anti-rattle sleeves
from either end of the inner rod.
3. Central Column Hand-wheel x 1
4. Storage Tray x 1
5. Base Assembly x 1
6. Mushroom Feet x 4
7. M8 x 20mm Socket-Head Button-Screws x 4
8. M8 x 40mm Socket-Head Button-Screws x 4
9. Castors x 4
10. Allen Key x 1
11. Castor Spanner x 1
1
Safe Working Load
4st
25kg
3
4
6
7
10
1
2
5
8
11
