NRS Healthcare P11334 User Instructions

P11334 LIGHT BROWN

General Warning

Please ensure these instructions are fully read
and implemented. Failure to do so may result in
injury. Retain these instructions in a safe place
for future reference.

1.0 Maintenance

Intended for use when sitting in either a chair,
wheelchair or bed, these over bed tables
provide an adjustable height flat surface for
reading, eating, writing etc.

2.0 Safety

Do not overload the table top, 20Kg Max load.
Check hand wheel is secure at regular intervals.
Before commencing height adjustment place
your hand on the table top to prevent it rising too
quickly as the table-top lift is spring assisted.
Do not attempt to use the table as a walking aid.

3.0 Unpacking

Remove packaging and check all parts carefully
before assembling the product, figure 2. Do not
assemble if any parts are missing or damaged.

4.0 Assembly

Please Note: An M8 or adjustable spanner and
a cross head screwdriver are required to
assemble this product.
Frame Assembly:
 Push the fixed column (Item 3) into the square
boss on the base assembly (Item 2), figure 4.
 Secure in place, on the underside of the base,
using the M8 bolt (Item 8) and washer (Item
9), figures 5 & 6.
A spanner is required for this operation.
User Instructions
NRS Height Adjustable Table - Range
P11346 WHITE
4
P11358

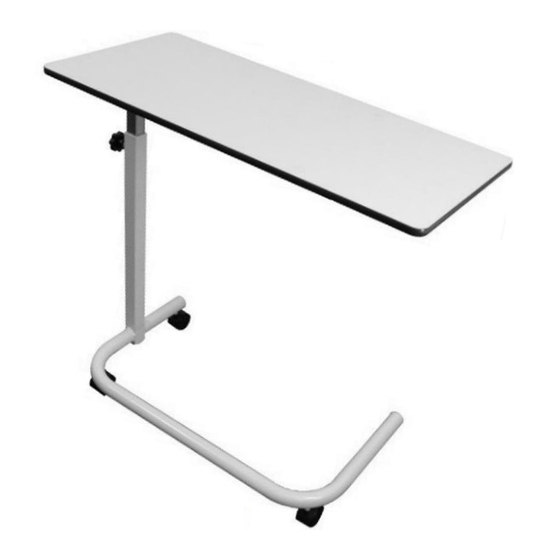

Figure 1 – Model P11346
Pack Contents
1 Table Top
2 Base Assembly
3 Fixed Column
4 Adjustable Column
5 Hand Wheel
Figure 2 – Parts List
3 2 1
Figure 3 – Parts
Figure 4
Figure 5
DARK BROWN
6 M6 Screw X 2
7 M6 Washer X 2
8 M8 Bolt
9 M8 Washer
9 8 5
7 6
Figure 6
