Press POWER once to
turn on or off the
selected device.
CBL/SAT
VCR
DVD
TV
Mode Keys for 4 Devices:
4 DEVICES
Press VCR, DVD, TV, or
CBL/SAT once to select
UNIVERSAL REMOTE CONTROL
a home entertainment
device to control.
Use the keypad (0 ~ 9)
to directly select
SET
POWER
channels (for example,
CBL/SAT
VCR
DVD
TV
09 or 31).
SLEEP
TV/VID
Press MUTE once to
turn sound off
or on.
Press PREV CH once to
recall the last-viewed
channel and to page
CH +
back one screen on the
VOL
VOL
main menu.
MUTE
-
+
CH -
Press ENTER once
after entering channel
REW
PLAY
FF
numbers on some TV
STOP
PAUSE
REC
models.
Use MENU (or EXIT) to
choose options (or
exit) from your
selected device's
menu or guide.
USER'S GUIDE
Use VOL+ (or VOL-)
to raise (or lower) the
sound volume.
Use CH+ (or CH -) to
select the next higher
(or lower) channel.
INTRODUCTION
When controlling a
The One For All 4 Devices Universal
DVD player, use SKIP
Remote Control is designed to operate
FORWARD to next DVD
three (or four) home entertainment
chapter., use SKIP
devices, depending on the model pur-
REVERSE to the last
chased (see Key Charts, Mode Keys on
DVD chapter.
the right).
Press SHIFT and use
The remote control requires four fresh
the Up/Down/Left
AAA alkaline batteries (not included) and
Right cursor keys to
easy programming to control your devices.
move the cursor in the
For best results, please read and perform
program guide and
all instructions listed here.Also, keep
menu screens.
these instructions for future reference.
Press SHIFT and MUTE
to select a menu item.
FEATURES AND FUNCTIONS
Press SLEEP to activate
your device's sleep
Use the Key Charts to learn how to use the
timer (not available
universal functions of the One For All 4
for all devices).
Devices Universal Remote Control.
Use the transport keys

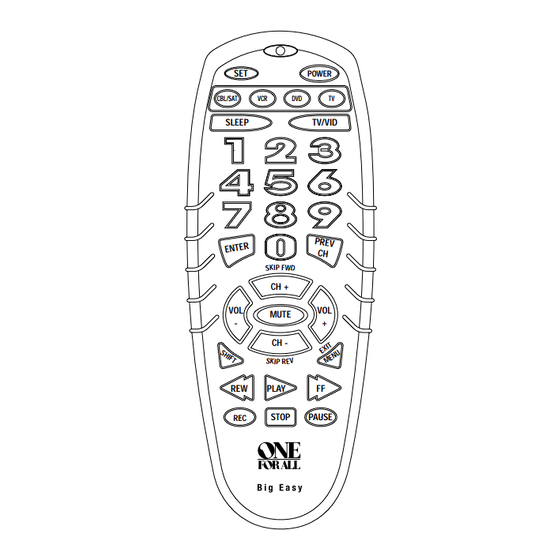

Key Charts
to control your VCR,
Use SET for all
CD or DVD player, or
programming
VOD. To record a
sequences.
program, press the
record key (
The LED (red light)
twice.
blinks to show that
the remote control is
use TV/VID to switch
working and is
the TV's input to view
sending signals.
TV or video program.
INSTALLING BATTERIES
PROGRAMMING
TV/VCR COMBO CONTROL
1. On the remote control's back, push the
tab and lift off the battery cover.
Perform the following instructions to
control a TV/VCR Combo:
2. Obtain four (4) new AAA alkaline
batteries. Match the + and – marks
1. Turn on the TV/VCR Combo and
on the batteries to the + and –
insert a video cassette.
marks in the battery case, then insert
NOTE: Please read steps 2-4 completely
the new batteries.
before proceeding. Highlight or write down
the codes and device you wish to program
3. Press the battery cover back into
before moving on to step 2.
place. The tab should click when the
cover is locked.
2. On the remote control, press VCR.
Press and hold SET until the LED
4. Test the unit by pressing POWER
blinks twice, then release SET.
and any mode key (e.g., TV). If the
batteries are inserted correctly, the
3. Use the Setup Codes For TV/VCR
LED will blink once.
Combos (on the back side) to locate
the brand name and then enter the
NOTE: When batteries need replacement,
first four-digit code for your device.
the remote control will stop operating.
Remove the old batteries and insert new
If performed correctly, the LED will
ones within 30 minutes to ensure all of
blink twice.
your programming information is restored.
NOTE: If the LED did not blink twice, then
repeat steps 2 through 3 and try entering
the same code again.
PROGRAMMING
4. Aim the remote control at the device
DEVICE CONTROL
and press POWER once. It should turn
The One For All 4 Devices remote con-
off. If the device does not respond,
trol is preprogrammed at the factory to
repeat steps 2-3, trying each code for
operate an RCA TV and VCR, a Motorola
your brand until you find one that
(GI) cable box, and a Toshiba DVD play-
works. If it still does not work, try
er. To control devices other than the
Searching For Your Code.
default brands, perform the following
NOTE: If the device does not have a
steps; otherwise skip this section:
POWER key, press the ( PLAY ) key.
NOTE: For TV/VCR Combo control, see the
next section.
SEARCHING FOR YOUR CODE
1. Turn on a device (e.g.,VCR) and, if
applicable, insert media, (e.g.,
If your device does not respond to the
cassette or disc).
remote control after trying all codes
listed for your brand, or if your brand is
NOTE: Please read steps 2-4 completely
not listed at all, try searching for your
before proceeding. Highlight or write down
the codes and device you wish to program
code. For example, to search for a code
before moving on to step 2.
for your TV:
2. On the remote control, press a device
1. On the remote control, press TV once.
key once (i.e., VCR, DVD, TV, or
2. Press and hold SET until the LED
CBL/SAT ). Press and hold SET until
blinks twice, then release SET.
the LED blinks twice, then release
SET.
3. Enter 9 - 9 - 1. The LED will
blink twice.
3. Use the Manufacturer's Codes to
locate the type of device and brand
4. Aim the remote control at the the
name and then enter the first four-
TV and slowly alternate between
digit code for your component. If
pressing POWER and TV. Stop when
performed correctly, the LED will
the TV turns off.
blink twice.
NOTE: In the search mode, the remote
NOTE: If the LED did not blink twice, then
control will send IR codes from its library
repeat steps 2 through 3 and try entering
to the selected device, starting with the
the same code again.
most popular code first.
4. Aim the remote control at the device
5. To lock in the code, press and hold
and press POWER once. The device
SET until the LED blinks twice, then
should turn off. If it does not respond,
release SET.
repeat steps 2-3, trying each code for
6. To search for the codes of your other
your brand until you find one that
devices, repeat steps 1 through 5, but
works. If it still does not work, try
substitute the appropriate device key
Searching For Your Code.
)
REC
for the device you are searching for.
NOTE: If the device does not have a
POWER key, press the ( PLAY ) key.
5. Repeat steps 1 through 4 for each
device you want to control.
CHECKING THE CODES
VCR back to VCR:
SET - 9 - 9 - 2
- VCR - VCR
If you have set up the remote control
DVD as 2nd TV key:
SET - 9 - 9 - 2
using the Searching For Your Code
- TV - DVD
procedure, you may need to find out
which four-digit code is operating your
DVD as 2nd CBL key: SET - 9 - 9 - 2
equipment:
- CBL/SAT - DVD
For example, to find out which code is
DVD as 2nd SAT key: SET - 9 - 9 - 2
operating your TV:
- CBL/SAT - DVD
1. On the remote control, press TV once.
DVD as 2nd VCR key: SET - 9 - 9 - 2
2. Press and hold SET until the LED
- VCR - DVD
blinks twice, then release SET.
DVD back to DVD:
SET - 9 - 9 - 2
3. Enter 9 - 9 - 0. The LED will
- DVD - DVD
blink twice.
When a re-assignment is done, the LED
4. To view the code for the first digit,
will blink twice to confirm your choice.
press 1 once.Wait 3 seconds, count
At that time, you will need to program
the LED blinks (e.g., 3 blinks = 3)
and write down the number.
the remote control for the new device
(see Programming Device Control).
NOTE: If a code digit is "0", the LED will
not blink.
5. Repeat step 4 three more times for
CHANGING VOLUME LOCK
remaining digits. Use 2 for the
second digit, 3 for the third digit,
The One For All 4 Devices is set to
control the volume of your TV in the TV,
and 4 for the fourth digit.
VCR, CBL/SAT, and DVD modes. If you
6. To check for codes of other devices,
want the volume to be controlled by a
repeat steps 1 through 5, but substi-
mode other than TV (e.g., CBL/SAT),
tute the appropriate device key for
change the Volume Lock as follows:
each device you are checking.
To Change Volume Lock To
As before, write down each four-
digit code.
Another Mode:
1. On the remote control, press and
hold SET until the LED blinks twice,
RE-ASSIGNING DEVICE KEYS
then release SET.
The One For All 4 Devices can be set to
2. Enter 9 - 9 - 3 and then press any
control a second TV,VCR, or DVD player.
mode key once (except TV). The LED
will blink twice.
For example, to control two TVs, a VCR,
and a cable box, you will need to re-
3. Now, whenever you press VOL+,
assign the unused DVD key to operate
VOL–, or MUTE, volume will be
the second TV as follows:
controlled by your mode choice.
1. On the remote control, press and
Unlocking Volume Control:
hold SET until the LED blinks twice,
NOTE: Perform these instructions when you
then release SET.
want independent volume control for each
2. Enter 9 - 9 - 2. The LED will
programmed device (e.g., TV volume control
blink twice.
in TV mode, CBL/SAT volume control in
CBL/SAT mode, etc.)
3. Press TV once, then press DVD once.
1. On the remote control, press and
4. The DVD key is now ready to be
hold SET until the LED blinks twice,
programmed for your second TV.
then release SET.
See Programming Device Control.
2. Enter 9 - 9 - 3 and then press VOL+.
To re-assign other device keys, repeat
The LED will blink four times.
steps 1 through 4 by substituting the key
sequence from the below chart for the
3. Volume will again be controlled
according to its default states.
most popular components:
To Re-Assign Key
Sequence
Perform
TROUBLESHOOTING
VCR as 2nd TV key:
SET - 9 - 9 - 2
For assistance, please contact us in any
- TV - VCR
of the following ways:
VCR as 2nd CBL key: SET - 9 - 9 - 2
• Consumer Help Line: (330) 405-8612
- CBL/SAT - VCR
• Internet: http://www.oneforall.com
VCR as 2nd SAT key: SET - 9 - 9 - 2
- CBL/SAT - VCR
PROBLEM:
LED does not blink when
VCR as 2nd DVD key: SET - 9 - 9 - 2
you press a key.
- DVD - VCR
SOLUTION: Replace batteries with
four new AAA alkaline
LIFETIME WARRANTY
batteries.
One For ALL ("OFA") warrants this
PROBLEM:
LED blinks when you
product to be free from defects in mate-
press a key, but home
rials and workmanship, under normal
entertainment component
use, throughout the period of the prod-
uct's ownership by the original purchas-
does not respond.
er. This warranty does not cover damage
SOLUTION: Make sure the remote
or failures caused by products or ser-
control is aimed at your
vices not supplied by OFA, or which
home entertainment
result from accident, misuses, abuse,
neglect, mishandling, misapplication,
device and is not farther
faulty installation, set-up adjustment,
than 15 feet away.
improper maintenance, alteration, mal-
PROBLEM:
The unit does not control
adjustment of consumer controls, modi-
home entertainment
fications, commercial use, or that is
attributable to acts of God.
devices or commands are
not working properly.
There are no express warranties except
as listed above. OFA SHALL NOT BE
SOLUTION: Try all listed codes for the
LIABLE FOR INCIDENTAL OR CONSE-
component brands being
QUENTIAL DAMAGES RESULTING
set up. Make sure they
FROM THE USE OF THIS PRODUCT
can be operated with an
OR ARISING OUT OF ANY BREACH OF
infrared remote control.
WARRANTY,ALL EXPRESS AND
IMPLIED WARRANTIES, INCLUDING
PROBLEM:
TV/VCR combo does not
THE WARRANTIES OF MER-
respond properly.
CHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE,ARE LIMIT-
SOLUTION: Use the VCR codes for
ED TO THE WARRANTY PERIOD SET
your brand. Some combo
FORTH ABOVE. Some states do not
units may require both a
allow the exclusion or limitation of inci-
TV code and a VCR code
dental or consequential damagers, or
for full operation.
limitations on how long an implied war-
ranty lasts, so the above exclusions or
PROBLEM:
Changing channels does
limitations may not apply to you. This
not work properly.
warranty gives you specific legal rights
and you may also have other rights
SOLUTION: If original remote control
which vary from state to state.
required pressing ENTER
to change channels, press
To obtain warranty service for a defec-
ENTER on the remote
tive product, please return the product,
preferably in the original carton, along
control after entering the
with your purchase receipt, to the store
channel number.
of original purchase for the first 90 days.
PROBLEM:
Tried "Search Method"
A note detailing the complaint would be
and still could not find a
helpful. The store, at its option, will
replace or repair this product if found to
working code.
be defective.
SOLUTION: Clear the device key as
If the unit has been purchased more
follows: Press and hold
than 90 days ago, pls return it to Impact
SET until the LED
Distribution Services, 6262 Patterson
blinks twice, then release.
Pass Road, Suite C, Livermore, CA 94550
Next enter 9 - 9 - 2. Then
together with the original receipt and
press the device key to be
$3.95 to cover postage and handling. It
cleared twice. Now repeat
will be repaired or replaced at the manu-
the "Search Method. "
facturer's option. The manufacturer
reserves the right to substitute a current-
PROBLEM:
CH and CH do not
ly manufactured model with equal or
work for your RCA TV.
superior features.
SOLUTION: Due to RCA design (1983-
ADDITIONAL INFORMATION
1987), only the original
remote control will oper-
ONE FOR ALL® is the registered trade-
mark of Universal Electronics Inc.
ate these functions.
Computime International Ltd. is the
PROBLEM:
Remote control does not
Licensee of the ONE FOR ALL® brand
turn on Sony or Sharp
for USA and Canada.
TV/VCR Combo.
Copyright 2001 by Universal Electronics
Inc. No part of this publication may be
SOLUTION: For power on, these prod-
reproduced, transmitted, transcribed,
ucts require programming
stored in any retrieval system, or trans-
TV codes. For Sony, use
lated to any language, in any form or by
TV code 0000 and VCR
any means, electronic, mechanical, mag-
code 0032. For Sharp, use
netic, optical, manual, or otherwise,
TV code 0093 and VCR
without the prior written permission of
code 0048.
Universal Electronics Inc.
One For All® 4 Devices is compatibile for
use in North America excluding Mexico.
URC-4330
12/01
Advertisement
