INTRODUCTION The One For All DVD Expert Universal Remote Control (URC-4041) is designed to remotely operate up to four home entertainment devices and features intuitive and easy-to use buttons to operate a DVD component. Its sophisticated technology will allow you to consolidate your original home entertainment remote controls into one easy-to-use product.

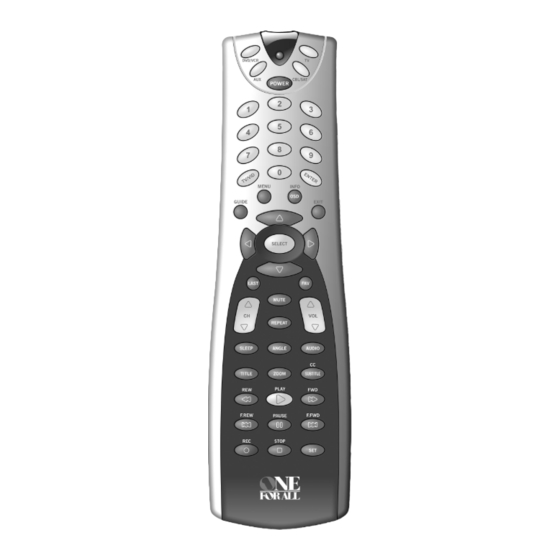

FEATURES AND FUNCTIONS Use the illustration below to locate features on the One For All DVD Expert Universal Remote Control (URC-4041) and then study the Key Charts (on the next two pages) to learn how they function. To find out what type of devices can be controlled by each device key after programming, see the Device Table on page 7.
Key Charts When the (red light) blinks, the remote control is working and (after programming) is sending signals. Press , or DVD/VCR CBL/SAT once to select a desired home entertainment device to control. Also see the Device Table on page 7. Press once to turn on or off POWER...
Page 6
FEATURES AND FUNCTIONS Key Charts (continued) ) to select the next higher (or lower) channel. Press once to turn the sound MUTE off or on. In the DVD mode, press REPEAT once to replay a selected chapter (after pressing - see below). TITLE ) to raise (or lower) the sound volume.
Device Table NOTE: Please refer to the table below when performing the instructions in “Programming Device Control” on page 9. After programming, the One For All DVD Expert Universal Remote Control will be able to control the following types of devices:...
INSTALLING BATTERIES ❶ ❷ ❷ ❸ On the remote control’s back, push the tab and lift off the battery cover. Obtain two (2) new AAA alkaline batteries. Match the + and – marks on the batteries to the + and – marks in the battery case, then insert the new batteries.
PROGRAMMING DEVICE CONTROL The One For All DVD Expert Universal Remote Control is preprogrammed at the factory to operate an RCA TV, a Toshiba DVD player, a Motorola cable box, and a Pioneer audio receiver/amplifier. To control devices other than the default brands, perform the following steps;...
PROGRAMMING DEVICE CONTROL (continued) Aim the remote control at the device and press once. The device should turn POWER off. If it does not, repeat steps 2 through 5 (starting on the previous page), trying each code for your brand until you find one that works.
Aim the remote control at the TV and slowly alternate between pressing POWER . Stop when the TV turns off (after pressing POWER NOTE: In the search mode, the remote control will send IR codes from its library to the selected device, starting with the most popular code first.
PROGRAMMING A MASTER POWER MACRO In its default state, the key on the One For All POWER DVD Expert Universal Remote Control will individually power your home entertainment devices on or off. However, you can also program a Master Power Macro onto the...
. The Master Power Macro is now cleared. USING KEYMOVER The One For All DVD Expert Universal Remote Control includes a Keymover feature that allows you to map (or copy) keys from one mode (i.e., source mode) to another mode (i.e., destination mode).
Programming Keymover (continued) Upon completion of the above procedure, you can now use your One For All DVD Expert Universal Remote Control to control the TV’s volume and mute in the DVD mode, as well as in the TV mode.
Press once, then press once. DVD/VCR will blink twice. key is now ready to be set up to control your second DVD player. See Programming Device Control on page 9. To re-assign other device keys to the key, repeat steps 1 through 4 with a sequence from the below chart: NOTE: Only one device can be assigned to an unused device key at a time.
PROGRAMMING FAVORITE CHANNEL SCAN In the , or mode, you can store a list DVD/VCR CBL/SAT of up to 10 favorite channels, in any order, that will be immediately scanned when is pressed (see Using Channel Scan on the previous page). NOTE: Favorite channels can only be programmed for one mode.
CHANGING VOLUME LOCK The One For All DVD Expert Universal Remote Control is set at the factory for independent volume control of each selected device. However, you may change the Volume Lock setting to Global Volume Lock so that a device’s volume will be locked to one mode (e.g., to control TV volume in all...
CHANGING VOLUME LOCK (continued) Unlocking All Volume Control (Restoring Default Setting) NOTE: Performing these instructions will restore independent volume control for all programmed devices (e.g., TV volume control in TV mode, VCR volume in DVD/VCR mode, etc.). On the remote control, press and hold until the (red light) blinks twice,then release...
TROUBLESHOOTING PROBLEM: (red light) does not blink when you press a key. SOLUTION: Replace batteries with two new AAA alkaline batteries. PROBLEM: blinks when you press a key, but home entertainment device does not respond. SOLUTION: Make sure the remote control is aimed at your home entertainment device and is not farther than 15 feet away.
INSTRUCTIONS TO THE USER This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide a reasonable protection against harmful inter- ference in a residential installation.
LIFETIME WARRANTY One For ALL ("OFA") warrants this product to be free from defects in materials and workmanship, under normal use, throughout the period of the product’s ownership by the original purchaser. This warranty does not cover damage or failures caused by products...
