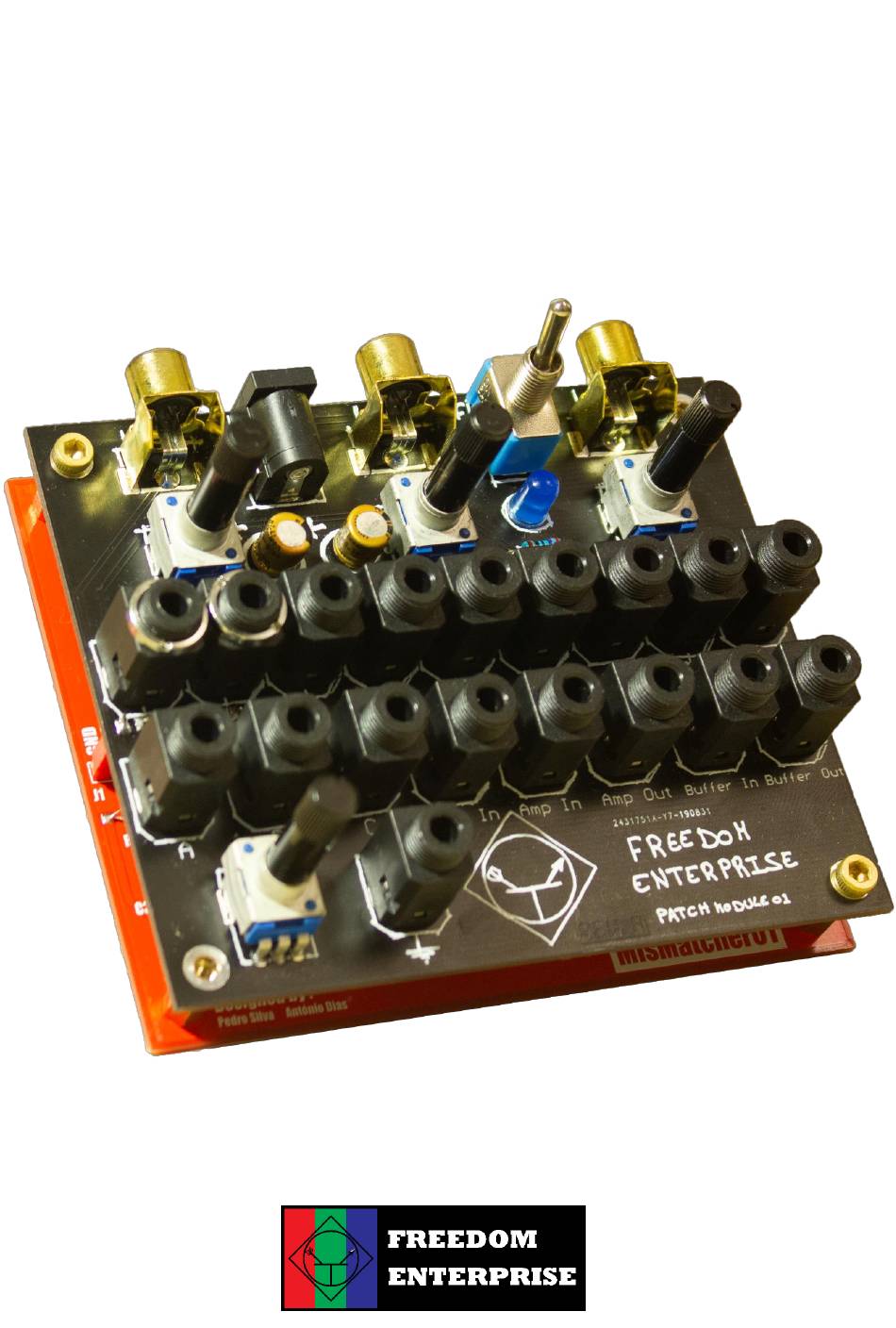

- Page 1 MISMATCHER01 PATCHMODULE01 OWNER’S MANUAL...
- Page 2 FREEDOM ENTERPRISE MISMATCHER01 PATCHMODULE01 OWNER’S MANUAL Revision A October 2019 Written by Pedro Silva Special thanks to Gieskes and LZX Industries for inspiring me to follow this project. www.freedomenterprise.pt geral@freedomenterprise.pt Analog Audio and Video Effects...
-
Page 3: Table Of Contents
FREEDOM ENTERPRISE Contents MisMatcher01 ........................ 1 About ........................1 Specifications ......................1 Block Diagram ....................... 2 Bill of Materials ....................... 3 Assembly ........................ 3 PatchModule01 ......................4 About ........................4 Bill of Materials ....................... 4 Assembly ........................ 5 User Interface ......................5 Patching Examples .................... -
Page 4: Mismatcher01
MisMatcher01 About The MisMatcher01 is an analog video effects unit comprised of a sync mixer and an amplifier. It’s intended to work in tandem with another control board trough a connection header. The sync mixer extracts the sync pulses from a video signal and mixes them with another video signal. -
Page 5: Block Diagram
FREEDOM ENTERPRISE Block Diagram... -
Page 6: Bill Of Materials
FREEDOM ENTERPRISE Bill of Materials Description Value Reference Nichicon Electrolytic Capacitor 220 F 6.3 V C3, C4, C5, C6, C7, C13 Electrolytic Capacitor 110 F 25 V Ceramic Capacitor 0.1 F C12, C14, C15, C16, C17 Diode... -
Page 7: Patchmodule01

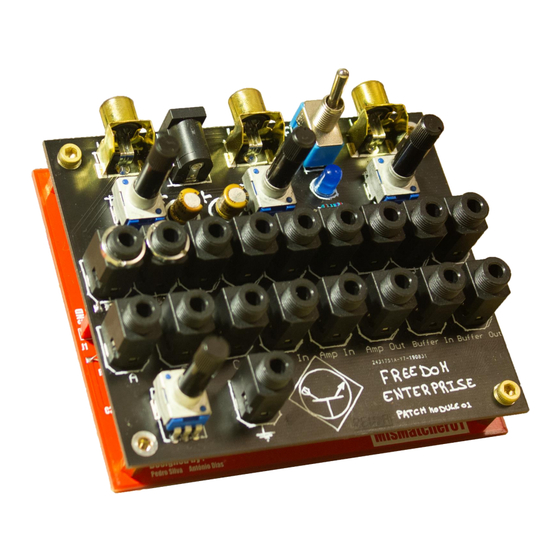

About The PatchModule01 is a 3.5 mm patch cable control module for the MisMatcher01. It works as the user interface, providing input and output RCA jacks, 3 mixers and an easy way to combine different video signals with the different functions of the MisMatcher01. The 3.5 mm stackable patch cables are needed but not included. -
Page 8: Assembly
Clean the flux residue left behind. Finish off by soldering the two 12 mm spring loaded SMD pin on the back. Make sure they are centred on the pad and that they make contact with the resistor underneath on the MisMatcher01 board when assembled. - Page 9 FREEDOM ENTERPRISE 4 On/Off Switch 5 RCA Connector C 5.1 RCA Access Point C 6 1.5 K Potentiometer A 6.1 Potentiometer Fixed Access Point 6.2 Potentiometer Wiper Access Point 6.3 Potentiometer Fixed Access Point 7 20 K Potentiometer B 7.1 Potentiometer Fixed Access Point 7.2 Potentiometer Wiper Access Point...
-
Page 10: Patching Examples
FREEDOM ENTERPRISE Patching Examples Cross Dissolve Video Input: A and B Video Output: C Connect source A to the fixed end of potentiometer A. Connect source B to the other fixed end of the same potentiometer. Connect the potentiometer wiper to the output C. Rotate the potentiometer and the video output will cross fade between A and B, loosing sync in between. -
Page 11: Cross Dissolve With Sync Lock
FREEDOM ENTERPRISE Cross Dissolve with Sync Lock Video Input: A and B Video Output: C Connect source A to the fixed end of potentiometer B. Connect source B to the other fixed end of the same potentiometer. Connect the potentiometer wiper to Buffer In. -
Page 12: Negative Black And White With Sync Restoration
FREEDOM ENTERPRISE Negative Black and White with Sync Restoration Video Input: A Video Output: C Connect A to Amp In. Connect Amp Out to Buffer In. Connect Buffer Out to C. Connect A to Sync In. Turn the Threshold potentiometer to control the picture contrast. -
Page 13: Creative Commons License
The PCBs layout, artwork and names are the property of Freedom Enterprise and may not be cloned or replicated for commercial purposes. Read the full license at creativecommons.org/licenses/by-sa/4.0...
