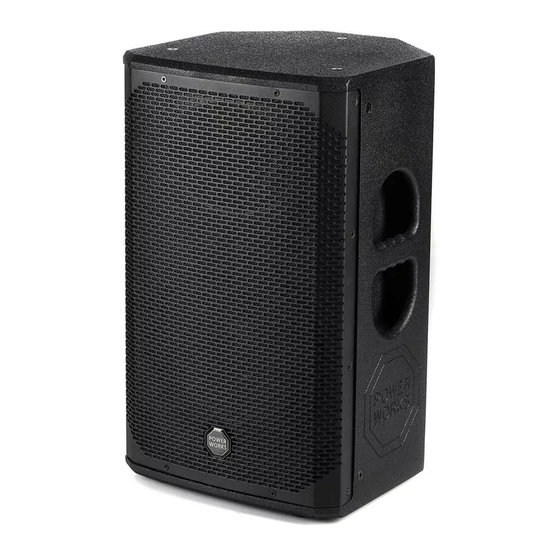

- Page 1 USER MANUAL ARTEMIS 08PD ARTEMIS 10PD ARTEMIS 12PD ARTEMIS 15PD ARTEMIS 12P SUB ARTEMIS 15P SUB ARTEMIS 18P SUB...
-
Page 2: Safety Introduction
SAFETY INTRODUCTION 1.Please read the manual carefully and keep it for future reference. 2.All safety instructions and warnings must be adhered to. They are par t of the manual and must be kept with the manual. 3.Any guarantee claims are rendered invalid if damage occurs due to non-observance of these operating instructions. - Page 3 19.Electrical appliances must be kept out of the reach of children. Be par ticularly careful if children are pre- sent. Children are not aware of the hazards involved in handing electrical appliances improperly. Children could attempt to poke objects into the appliance. There is a life-threatening danger of electrocution. 20.Do not leave the appliance unattended while operating it.
- Page 4 ARTEMIS 8PD ARTEMIS 10PD ARTEMIS 12PD ARTEMIS 15PD...
-
Page 5: Lcd Dsp Controls
1.[DSP]-backlit display for DSP functions. 2.[ INPUT 1/INPUT 2]-Mic / Line input 1, designed as XLR / 1/4" combo socket, balanced. 3.[ AUX IN]-3.5 mm jack socket for connecting line level devices such as MP3 or CD players. Stereo signals are combined. 4.[ OUTPUT]-Line output, designed as XLR chassis plug. - Page 6 ARTEMIS 12SUB ARTEMIS 15SUB ARTEMIS 18SUB...
- Page 7 1.[DSP]-backlit display for DSP functions. 2.[ INPUT 1]-Line input 1, designed as XLR / 1/4" combo socket, balanced. 3.[ INPUT 2]-Line input 1, designed as XLR / 1/4" combo socket, balanced. 4.[ MASTER / PUSH FOR DSP]-Rotary control for the overall volume, push button for activating the DSP functions. 5.[ OUTPUT 1]-Line output, designed as XLR chassis plug.
-
Page 8: Stand Flange
STAND FLANGE ARTEMIS 8PD ARTEMIS 10PD ARTEMIS 12PD ARTEMIS 15PD 0° 7° DUAL TILT FLANGE The speakers have a stand flange with a 0° angle socket (rear position) and a socket with a 7° tilt angle (front posi- tion). Examples of use:Use the socket with a 0° angle for standing audiences and the socket with a 7° tilt angle for seated audiences. -
Page 9: Technical Specifcations
TECHNICAL SPECIFCATIONS Model: ARTEMIS 8PD ARTEMIS 10PD Type: Active PA Speaker Active PA Speaker Frequency response: 70Hz-19kHz 65Hz-19kHz Power output(RMS/peak): 300W/600W 350W/700W Amplifier Type Class D + Class AB Class D + Class AB Coverage Angle 90° x 60° 90° x 60° Max.SPL (Peak) 120dB 122dB... - Page 10 TECHNICAL SPECIFCATIONS Model: ARTEMIS 8 ARTEMIS 10 Type: 2-Way passive speaker 2-Way passive speaker Frequency response: 70Hz-19kHz 65Hz-19kHz Power output(RMS/peak): 350W/700W 400W/800W Coverage Angle 90° x 60° 90° x 60° Max.SPL (Peak) 122dB 124dB LF transducer 8"Woofer 2"Voice coil 10"Woofer 2"Voice coil 1"...
- Page 11 TECHNICAL SPECIFCATIONS Model: ARTEMIS 12SB ARTEMIS 15SB ARTEMIS 18SB Type: Active PA Subwoofer Active PA Subwoofer Active PA Subwoofer Frequency response: 40Hz-150Hz 35Hz-150Hz 30Hz-150Hz Power output(RMS/peak): 800W/1600W 1000W/2000W 1000W/2000W Amplifier Type Class D Class D Class D Max.SPL (Peak) 128dB 132dB 134dB LF transducer...
- Page 12 Version 1.0...
