Neousys Nuvis-534RT Quick Installation Manual

Quick Installation Guide
Warning
• Only qualified service personnel should install and service this
product to avoid injury.
• Observe all ESD procedures during installation to avoid damaging
the equipment.
1 Preparing tools
Unpack the equipment and make sure the following tools are
available and delivered contents are correct before you begin the
installation procedure.
1-1. User-provided tools
• Anti-static wrist wrap
1-2. Packing List
Item Description
01 Nuvis-534RT system
Drivers & utilities disc
02
03 3-pin pluggable terminal block
DIN-rail mount clip
04
05 Screw package
06 TB-10
07 SCIS-68 male to SCSI-68 male 100cm cable
3-pin Remote On/ Off
4
The "Remote On/ Off" 3-pin connection allows for external switch
extension. It is useful when the system is placed in a cabinet or a
not easily accessed location.You may connect an external
remotewith an external status LED indicator(15mA) by
connecting toPWR LED and GND.

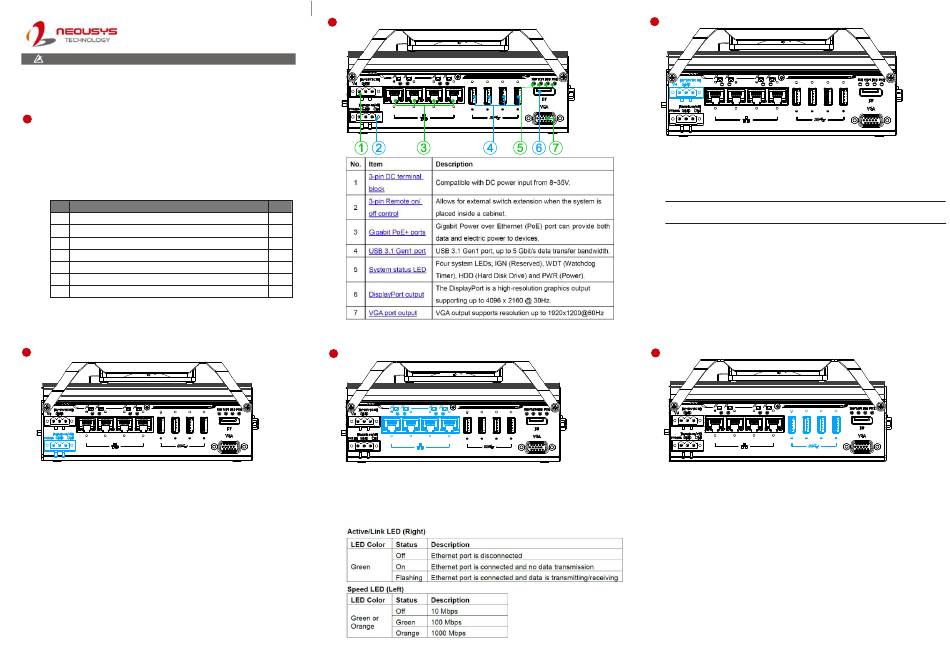

2 Nuvis-534RT Front Panel
Nuvis-534RT
Qty
1
1
2
1
1
1
1
5 IEEE 802.3at Power over Ethernet Port
The Gigabit Power over Ethernet(PoE) port supply power and data on a
standard CAT-5/CAT-6 Ethernet cable. Acting as a PSE (Power
Sourcing Equipment), compliant with IEEE 802.3at,each port delivers
up to 25W to a Powered Device(PD). PoE automatically detects and
determine if the connected device is PoE PD or not before supplying
power, making it compatible with standard Ethernet devices as well.
3-pin DC Terminal Block
3
The system accepts a wide range of DC power input from 8 to 35Vvia
a 3-pin pluggable terminal block, which is fit for field usage where DC
power is usually provided. The screw clamping mechanism on the
terminal block offers connection reliability when wiring DC power.
Warning
Please make sure the voltage of DC power is correct before you connect
it to the system. Supplying a voltage over 35V will damage the system.
6 USB3.1 Gen1
The system offers four USB 3.1 Gen1(SuperSpeed USB) ports on its
front panel. They are backward compatible with USB 2.0, USB 1.1 and
USB 1.0 devices. Legacy USB support is also provided so you can use
USB keyboard/mouse in DOS environment while USB3.1 Gen1 driver
is supported natively in Windows10.
