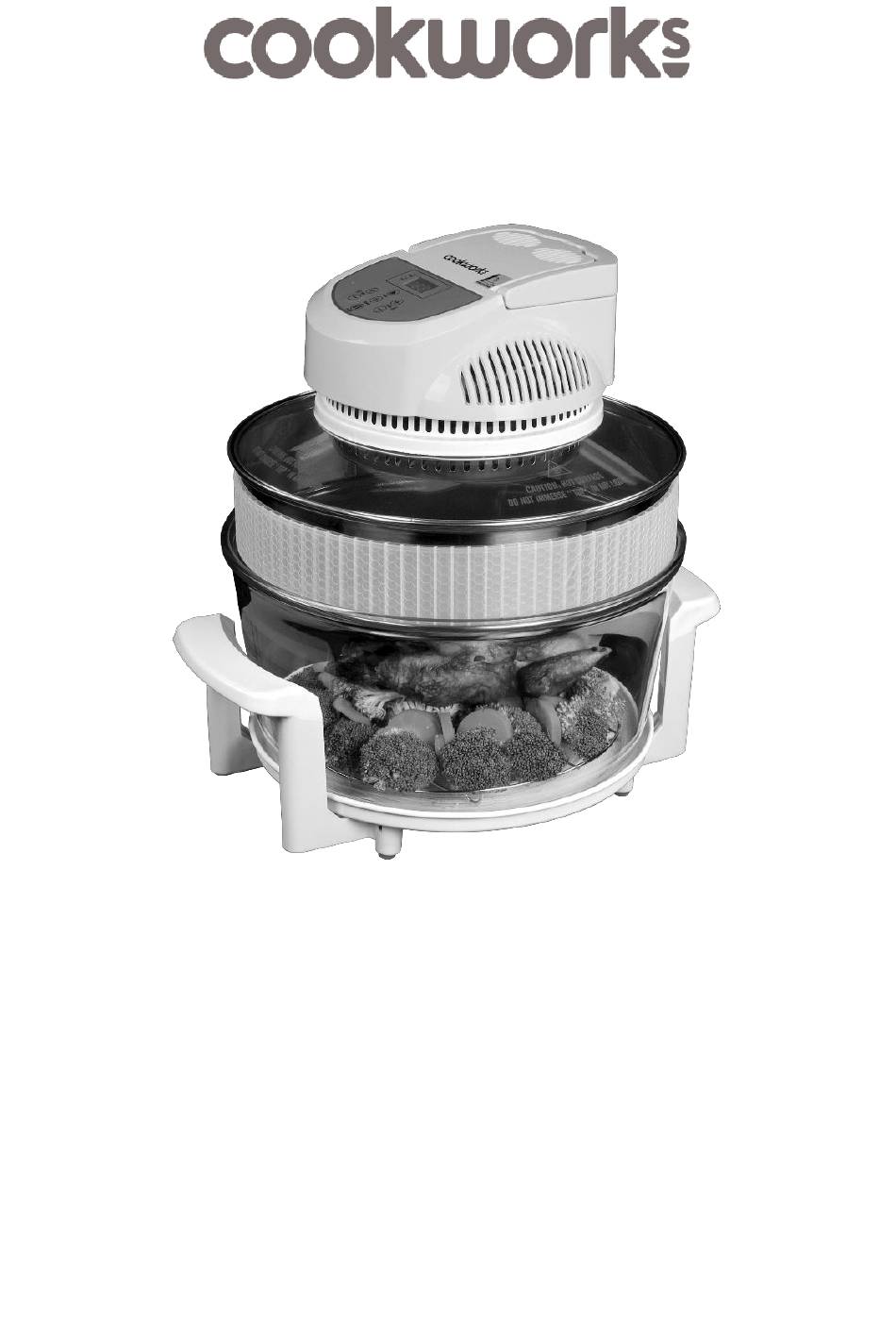

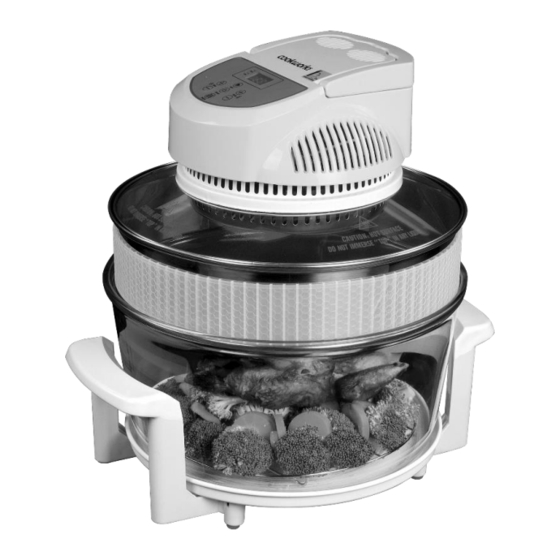

DIGITAL HALOGEN OVEN
Model No.: KHC-617D
Care & Instruction Manual
WARNING: This appliance is operating at high
temperatures. To ensure your safety and the safety
of others, please ensure you read these instructions
paying particular attention to the Safety Warnings
before you operate this product and retain for future
reference.
A replacement copy of this manual can be obtained from www.argos-support.co.uk
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cookworks KHC-617D
Summary of Contents for Cookworks KHC-617D
- Page 1 DIGITAL HALOGEN OVEN Model No.: KHC-617D Care & Instruction Manual WARNING: This appliance is operating at high temperatures. To ensure your safety and the safety of others, please ensure you read these instructions paying particular attention to the Safety Warnings before you operate this product and retain for future reference.
-
Page 2: Important Safety Precautions
IMPORTANT SAFETY PRECAUTIONS You should only plug the appliance into a 220V- 240V AC, 50Hz earthed socket outlet. Connect it to other power sources may damage the appliance and will invalidate the guarantee. Please read through the instruction manual before your first use and keep it for future use. Do not use an extension cord with this appliance. - Page 3 Unplug from outlet when not in use and before cleaning. Allow to cool before attaching or removing parts or cleaning. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Take it to a qualified service engineer for examination and repair.
- Page 4 Do not store any item on the oven during operation. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 5 A fire may occur if the oven is covered by or placed near the flammable material, including curtains, draperies, walls, and the like, when in operation. Never leave the product unattended while in use. Do not place any of the following materials in the oven: cardboard, plastic, paper, or anything similar.
- Page 6 Please use the appliances with supplied containers and supports. The handle of the appliance should not be pushed down when the lid is not on the container. DO NOT operate the Halogen Oven near to where aerosol products are being used. NOTE - This product may emit some odour when it is first used.
- Page 7 WARNING! – The lid should be unplugged when cooking is done and before it is lifted from the pot as accidental closure of the handle will re-energise the heating element. Never cook stews casseroles or any liquid based food such as soup directly in the Halogen oven bowl as the unit can become damaged by liquid splashes and vapour”...
-
Page 8: Know Your Appliance
KNOW YOUR APPLIANCE Product Accessories Digital control panel 1. Tongs Lid unit 2. Low rack Lid handle with safety switch 3. High rack Glass pot 4. Lid holder Extender ring Base support stand Digital Control Panel 1. Temperature indicator Time indicator Power button Time button (+/-) Pause button... -
Page 9: Before First Use
BEFORE FIRST USE 1. DO NOT operate the Halogen Oven with other household appliances plugged into the same power socket as there may be a risk of fusing the circuit. 2. Remove the lid, glass pot, base and accessories from the retail box. 3. - Page 10 OPERATION INSTRUCTIONS Caution: Always operate this product on a flat horizontal surface. Do not operate under or near curtains or other combustible materials. Using the appliance Remove the lid unit and put it on the Lid holder. Then put the most suitable rack into the glass pot before placing the food inside.
- Page 11 4. Set cooking time and temperature (in ON mode): • Press the Time button (+/-), the Timer indicator will flash, press the (+) or (-) button lightly to increase or reduce the time selected in increments of 1 minute from 0 to 3 hours. Holding the (+) or (-) button will help the increment change faster.
- Page 12 Pause Press PAUSE button to pause the cooking cycle, press the START button to resume and continue the cooking cycle. Pull the lid handle up into the vertical position to switch the oven into OFF position. Push the lid handle down again and then press the START button again to resume and continue the cooking cycle.
- Page 13 COOKING WITH EXTENDER RING While the size of the food is larger than the glass pot, the extender ring should be used to enlarge the internal capacity of the oven, the extender ring fits between the glass pot and the lid. The set-up of the oven with the extender ring fitted is the same as the normal set-up procedure.
-
Page 14: Cooking Hints
COOKING HINTS • The cooking time depends on the size and weight etc. of the food to be cooked. Most meat, for example, comes with a recommended cooking time. This should be used as a guide only as the Halogen Oven cooks faster than conventional ovens so you may need to allow less time to cook the food. -
Page 15: Cleaning And Maintenance
CLEANING AND MAINTENANCE • WARNING: Cleaning and user maintenance shall not be made by children. • CAUTION: Always unplug and allow the oven to cool down before cleaning. • WARNING: To avoid electric shock, never immerse the lid in water or other liquid. - Page 16 COOKING TIME SUGGESTIONS Note: Always remember that cooking instructions are intended only as a guide. If you have followed the instructions and the food is still not piping hot throughout, simply return it to the oven and cook it until it is. Food Time Temperature...
-
Page 17: Troubleshooting
TROUBLESHOOTING Check problems using the chart below. If the oven still does not work properly, contact a qualified serviceperson. PROBLEM POSSIBLE CAUSE Burnt food Temperature set too high, or time set too long. Undercooked food Temperature set too low, or time set too short. Handle not pushed down in order to activate the safety switch. -
Page 18: Technical Data
TECHNICAL DATA Model no. KHC-617D Voltage AC 220-240V 50-60Hz Power 1200-1400 W Oven capacity Nominally 10 litres, extendable to 15 litres using extender ring Thermostat 60-250 °C Timer 0-120 minutes Overall Dimension (With Base Stand) (H) 330 mm (W) 410 mm Glass Container Dimensions (H) 165 mm (Ø)330 mm... - Page 19 Argos Limited, 489-499 Avebury Boulevard, Milton Keynes, MK9 2NW. Argos (N.I.) Ltd, Forestside Shopping Centre, Upper Galwally, Belfast, United Kingdom, BT8 6FX. Argos Distributors (Ireland) Limited, Unit 7, Ashbourne Retail Park, Ballybin Road, Ashbourne, County Meath, Ireland www.argos.co.uk/cookworks Tel: 0345 640 3030 Issue 4 22/2/2022...
- Page 20 Issue 4 22/2/2022...
