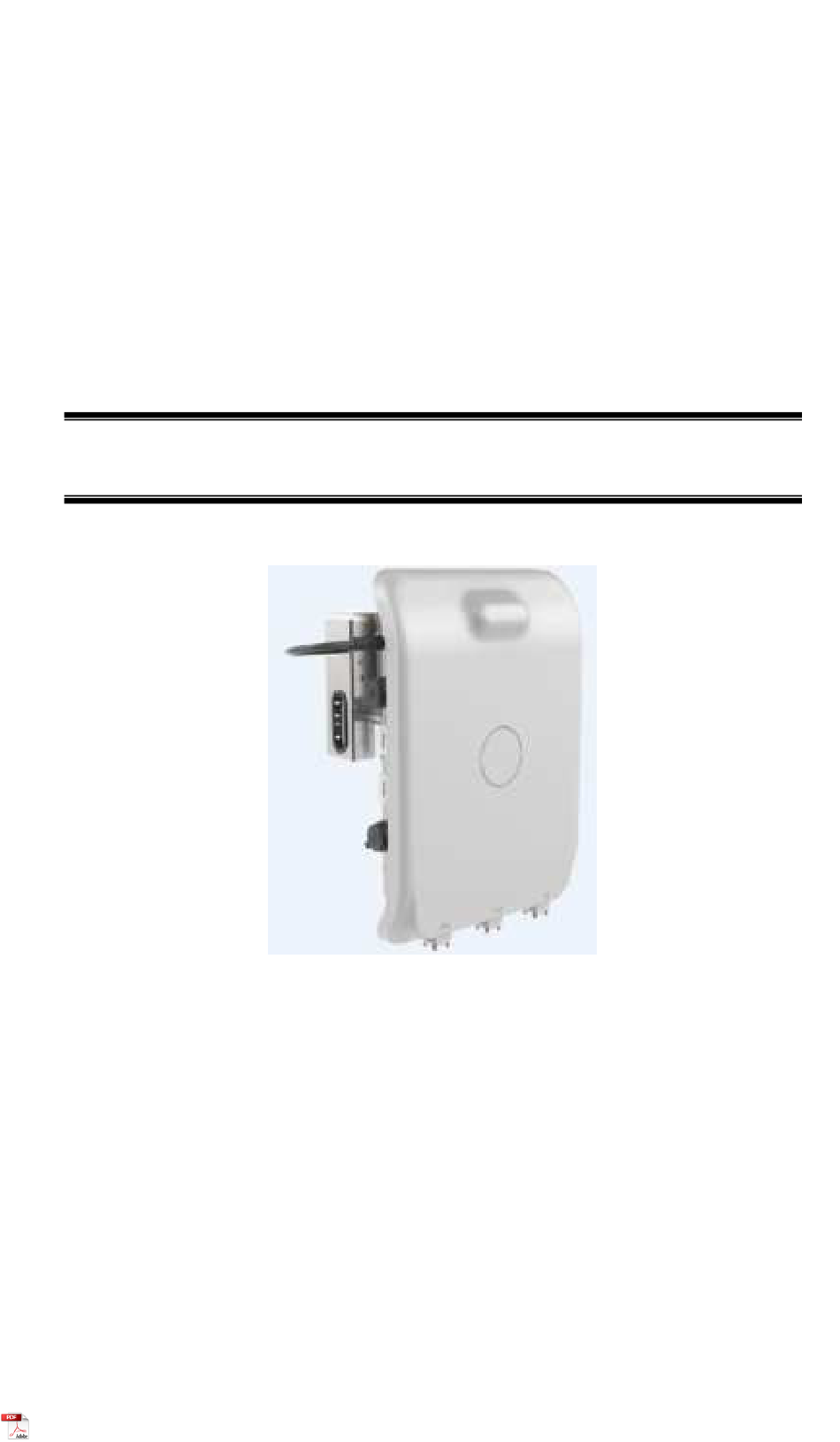

- Page 1 Englewood HGO Small Cell Model: SCO4255P-BC-A10 Quick Installation Guide Manufacture By: Sercomm Corporation 8F, No. 3-1, YuanQu Street, Nankang, Taipei 115, Taiwan, R.O.C...
-
Page 2: Table Of Contents
Table of Contents CHAPTER 1 INTRODUCTION....................1 PACKAGE CONTENTS....................1 KEY FEATURE........................1 INTERFACE I/O........................ 2 CHAPTER 2 INITIAL INSTALLATION................3 INSTALLATION........................ 3 CHAPTER 3 SPECIFICATIONS..................... 7 GENERAL SPECIFICATION..................7 RF CHARACTERISTICS....................7 FCC STATEMENT......................8 SAFETY INFORMATION....................9 DEVICE SURFACE CLEANING...................11 ACCESSORIES........................ 12... -
Page 3: Chapter 1 Introduction
Chapter 1 Introduction Englewood HGO is an outdoor Small Cell, self-configuring small cell device that will be used to CBRS network and LTE coverage at the customer premises. Package Contents Package will include following items: 1 x Englewood HGO Device... -
Page 4: Interface I/O
Interface I/O Interface Panel Power Input DC 12V/2.5A Lan port input for console configuration Wan port for backhaul connect and support PoE+ input... -
Page 5: Chapter 2 Initial Installation
Chapter 2 Initial Installation This mobile broadband base station RF device will provide high quality wireless broadband network coverage It has an Ethernet port and WAN Internet connection.Follow the steps below to install it. Device is outdoor Access Point and must need special trained professional in configuring and installing the product. - Page 6 Step2: Place the power adapter On the power bracket (The connector of the Power adapter corresponds with the power port ) Step3: Assemble fixing bracket, lock with M8*16 screws...
- Page 7 Initial Installation Step4: Assemble the base station bracket, and lock the bolts and screws after adjusting the Angle required by the device. Step5: Install the RJ45 cable...
- Page 8 Step6 Inst the ground cable Connect to here...
-
Page 9: Chapter 3 Specifications
Chapter 3 Specifications General Specification Connectivity 4x Internal LTE Antennas 2x Ethernet connection Power Supply External Power Adapter: Input: AC100～240V, 50Hz/60Hz, 1.2A Max. Output: 12 Vdc, 2.5A Operating Requirement Operating Temp. -40ºC to 55ºC Storage Temp. -40ºC to 70ºC Operating Humidity 5% to 90% Non-Condensing Storage Humidity 5% to 95% Non-Condensing Housing 410mmx286mmx115 mm... -
Page 10: Fcc Statement
Regulatory Requirements FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 11: Safety Information
Safety Information All instructions, warning and caution statements that accompany this equipment must be strictly followed at all times to ensure its safe use. Observe all warning and caution symbols that are fixed to this equipment. This electrical equipment is designed with the utmost care for the safety of those who install and use it. - Page 12 This second person must be trained in first aid for emergency purposes Some parts of all electrical installations are energized. Failure to follow safe work Practices and the safety warnings may lead to bodily injury and property damage. For this reason, only trained and qualified personnel (electrical workers as defined in IEC 60215 or EN 60215 + A1 or in the National Electrical Code or in ANSI/NFPA No.
-
Page 13: Device Surface Cleaning
Device Surface Cleaning You may clean the device case using a cloth dampened with mild liquid detergent (such as Dawn) and water. Always unplug/disconnect power before apply any cleaning to Device. Warning Do not submerse the Device or its accessories in water or allow water to enter into the case;... -
Page 14: Accessories
Accessories Item Description Power adapter Fixing bracket Ethernet water proof connector Power bracket Bracket (pole mount ) Mounting screws Mounting spring washers Mounting washers Grounding cable Fix grounding cable srews Fix grounding washers Power Adaptor Mounting Plate Screws Fixing bracket Screw...
