- Page 1 RP131 Wireless PoE Adapter Installation Guide Ver.1.1...

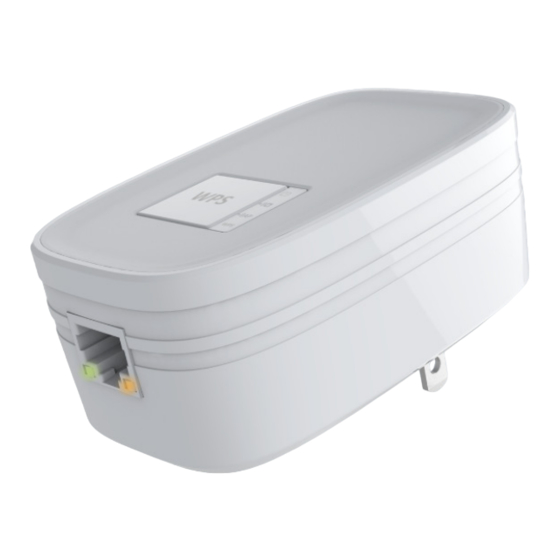

- Page 2 ,QWURGXFWLRQ ,QWURGXFWLRQ ,QWURGXFWLRQ ,QWURGXFWLRQ Overview The RP131 (Wireless Adapter) is Wireless client with power supply, it supply the power to the IP camera, it also connect the IP camera to your existing Wireless network. Page 1...
-
Page 3: Physical Details
Physical Details Figure 1: RP131(Wireless PoE Adapter) Page 2... - Page 4 LEDs Power On - Normal operation. (Green) Off - No power. Wireless/ Green On - Associate to WiFi AP Off - Not associate to WiFi AP Flashing - Transmitting/Receiving Data On - WPS failed (30 sec) Amber Off - No WPS action or WPS Succeed Flashing - WPS is processing (<...
- Page 5 Press and hold the WPS button, but not no more than 3 seconds PIN Method - Press the WPS button and hold for greater than 3 seconds Use a standard LAN cable to connect the RP131 LAN Port to the IP Camera Page 4...
- Page 6 6HWXS 6HWXS 6HWXS 6HWXS The installation allows the RP131 to directly connect to a wireless router (or Wireless Access Point). You can extend the range of your wireless network. Page 5...
- Page 7 (The LED on the AP will blink and active for 2 minutes.) 7. Push and hold the WPS button on the RP131 for more than 3 seconds. The WPS LED on the device will start blinking for 2 minutes. The RP131 will automatically associate to the Wireless Access Point with the strongest signal and make connections.)
- Page 8 6SHFLILFDWLRQ 6SHFLILFDWLRQ 6SHFLILFDWLRQ 6SHFLILFDWLRQ 56.9 91.7(L) x 57(W) x 61.2(H) mm Dimensions Wireless IEEE 802.11 b/g/n Standards Antenna Internal x 2 LEDs 1 * Power 1 * Wireless / WPS 1 * Ethernet 1 * PoE IEEE802.3 af Class 3 Maximum outpout power : 10 Watts DC 48V, 208mA(maximum) Over current protection...
- Page 9 Humidity Certifications FCC Part 15 Class B Safety UL Listed (UL60950-1)/cUL CSA No.22- Approvals 60950-01-03 Page 8...
- Page 10 1RWLILFDWLRQ RI &RPSOLDQFH 1RWLILFDWLRQ RI &RPSOLDQFH 1RWLILFDWLRQ RI &RPSOLDQFH 1RWLILFDWLRQ RI &RPSOLDQFH FCC Information to User FCC Information to User This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device complies with part 15 FCC rules. (1)this device may not cause harmful interference (2)this device must accept any interference received, including interference that Operation is subject to the following two conditions:...
