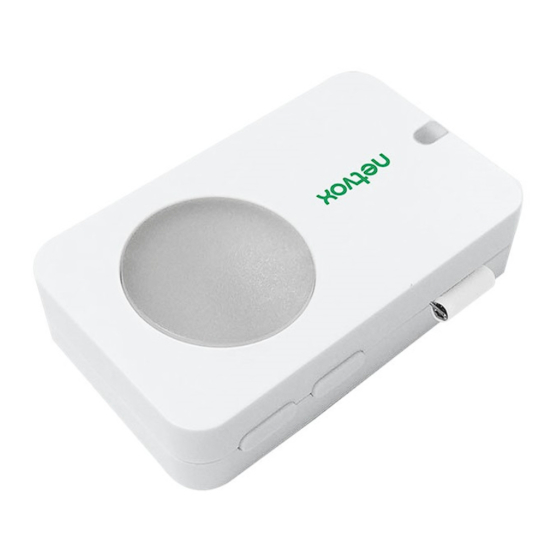

- Page 1 R311B Model： Wireless Light Sensor Wireless Light Sensor User Manual MiDo Srl FERRARA Via Poledrelli 21 - 44121 (Fe) +39 0532 1640011 LAURIA Via Vico II Cairoli, 4 - 85044 (Pz) +39 0971 1680051 EMAIL info@midomet.com...
-
Page 2: Table Of Contents
Table of Content 1. Introduction ..................................................2 2. Appearance ................................................... 3 3. Main Features ..................................................3 4.Set up Instruction .................................................. 4 5. Data Report ..................................................5 6. Control Command ................................................7 7. Installation .................................................... 8 8. Important Maintenance Instruction ............................................9... -
Page 3: Introduction
1. Introduction R311B is a long-distance Wireless Light Sensor based on the LoRaWAN open protocol (Class A). LoRa Wireless Technology: LoRa is a wireless communication technology dedicated to long distance and low power consumption. Compared with other communication methods, LoRa spread spectrum modulation method greatly increases to expand the communication distance. Widely used in long-distance, low-data wireless communications. -
Page 4: Appearance
2. Appearance 3. Main Features Compatible with LoRaWAN ⚫ 2 sections of 3V CR2450 button battery power supply ⚫ Detect current ambient illumination ⚫ Simple operation and setting ⚫ Compatible with LoRaWANTM Class A ⚫ Frequency hopping spread spectrum technology ⚫... -
Page 5: Set Up Instruction
4.Set up Instruction On/Off Insert batteries. Power on (users may need a flat blade screwdriver to open); insert two sections of 3V CR2450 button batteries and close the battery cover.) Turn on Press any function key till green and red indicator flash once. Turn off Press and hold the function key for 5 seconds till green indicator flashes for 20 times. -
Page 6: Data Report
5. Data Report When the device is turned on, it will immediately send a version package. Data will be reported by default setting before any configuration. Maximum time: 3600s Minimum time: 900s Default reportchange: Battery ---- 0x01 (0.1V) Default illuminance threshold: 0x00FF The device samples the illuminance according to the minimum time period. - Page 7 MaxTime Users push the button, Wakes up and collects data REPORTS 2.7V. Wakes up and collects data 2.7V |2.7-2.8|=0.1 Recalculate MaxTime. 2.7V Does not report REPORTS 2.7V sleeping sleeping 1H 10 1H 25 1H 40 1H 55 2H 10 Wakes Wakes Wakes Wakes...
-
Page 8: Control Command
0x01 (2Bytes,Fixed ReportReq (2bytes Unit:s) (2bytes Unit:s) (1byte Unit:0.1v) (2bytes 0x00) Unit： 1Lux) Config Status Reserved 0x81 ReportRsp (0x00_success) (8Bytes,Fixed 0x00) R311B 0x4B ReadConfig 0x02 Reserved (9Bytes,Fixed 0x00) ReportReq Illuminance Reserved ReadConfig MinTime MaxTime BatteryChange 0x82 threshold (2Bytes,Fixed ReportRsp (2bytes Unit:s) (2bytes Unit:s) (1byte Unit:0.1v) -
Page 9: Installation
This figure shows the scene where the light sensor (R311B) is applied in the office. It can also be applied to the following scenarios: Family ⚫... -
Page 10: Important Maintenance Instruction
All of the above suggestions apply equally to your device, battery and accessories. If any device is not working properly. Please take it to the nearest authorized service facility for repair. MiDo Srl FERRARA Via Poledrelli 21 - 44121 (Fe)
