Wireless Soil Moisture Sensor
1. Introduction .......................................................................................................................................................................................................................................................... 0
2. Appearance ........................................................................................................................................................................................................................................................... 1
3. Main Features ....................................................................................................................................................................................................................................................... 1
4.Set up Instruction .................................................................................................................................................................................................................................................. 1
5. Data Report .......................................................................................................................................................................................................................................................... 3
6. Installation ............................................................................................................................................................................................................................................................ 4
7. Important Maintenance Instruction ...................................................................................................................................................................................................................... 6
Introduction
1.
RA0713_R72613_RA0713Y is a ClassA type device based on the LoRaWAN open protocol.
The RA0713_R72613_RA0713Y can be connected to the EC_5 sensor, and the value collected by the sensor is reported to the corresponding gateway.
LoRa Wireless Technology:
LoRa is a wireless communication technology dedicated to long distance and low power consumption. Compared with other communication methods,
LoRa spread spectrum modulation method greatly increases to expand the communication distance. Widely used in long-distance, low-data wireless
Wireless Soil Moisture Sensor
User Manual
Table of Content
Firmware:V1.3
Hardware:V0.4
Model：RA0713_R72613_RA0713Y
Via Poledrelli 21 - 44121 (Fe)
+39 0532 1640011
Via Vico II Cairoli, 4 - 85044 (Pz)
+39 0971 1680051
info@midomet.com
MiDo Srl
FERRARA
LAURIA
EMAIL
Advertisement
Table of Contents
Related Manuals for Mido RA0713
Summary of Contents for Mido RA0713
- Page 1 Model：RA0713_R72613_RA0713Y Wireless Soil Moisture Sensor Wireless Soil Moisture Sensor User Manual Firmware:V1.3 Hardware:V0.4 MiDo Srl FERRARA Via Poledrelli 21 - 44121 (Fe) +39 0532 1640011 LAURIA Via Vico II Cairoli, 4 - 85044 (Pz) +39 0971 1680051 EMAIL info@midomet.com Table of Content 1.

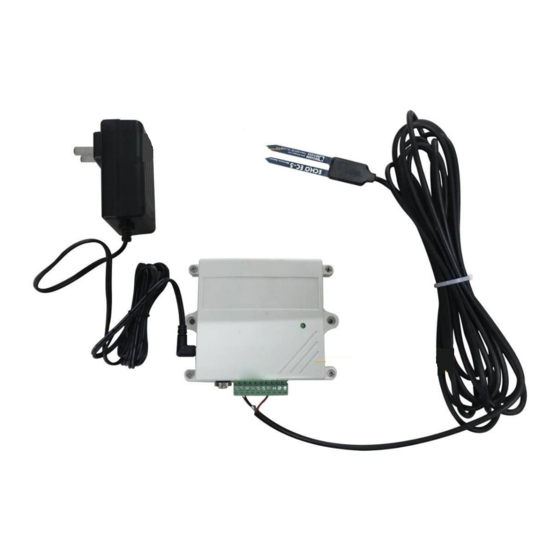

- Page 2 LoRaWAN uses LoRa technology to define end-to-end standard specifications to ensure interoperability between devices and gateways from different manufacturers. Appearance Figure 1. RA0713 External soil moisture sensor (subject to the actual object) 3. Main Features Compatible with LoRaWAN RA0713 和 RA0713Y apply DC 12V adapter ...
- Page 3 Engineering test modes require the burning engineering test software. On/off interval is suggested to be about 10 seconds to avoid the interference of capacitor inductance and other energy storage components. Note: Network Joining Turn on the device to search the network. Never joined the network The green indicator stays on for 5 seconds: success (Or at factory setting )
- Page 4 Series ReadConfigRepo 0x82 MinTime(2 MaxTime(2by Reserved rtRsp tes Unit:s) bytes Unit:s) (1) Configure RA0713 device parameters MinTime = 30s, MaxTime = 120s (120>30*1+10) Downlink: 0105001E00780000000000 Device returns: 8105000000000000000000 (configuration is successful) 8105010000000000000000 (configuration failed) (2) Read RA0713 device parameters Downlink:...
- Page 5 Whenever the device sends a report, no matter resulting from data variation, button pushed or MaxTime interval, another cycle of MinTime/MaxTime calculation is started. 6. Installation does not have a waterproof function. After the network joining is completed, please place it indoor. Please pay attention to the direction RA0713 when installing the sensor, keep the pickup ring facing down.
- Page 6 2. The R72613 product is waterproof. After the network-joining is completed, please leave it outdoors. (1) In the position to be installed, loosen the U-shaped screw of the bottom of the R72613 and the mating washer nut, and fix the U-shaped screw through the appropriate size cylinder on the R72613 fixed strut piece.
- Page 7 7. Important Maintenance Instruction Your device is a product of superior design and craftsmanship and should be used with care. The following suggestions will help you use the warranty service effectively. • Keep the equipment dry. Rain, moisture, and various liquids or moisture may contain minerals that can corrode electronic circuits.
