- Page 1 R718PA4 Model： Wireless H2S Sensor Wireless H S Sensor R718PA4 User Manual MiDo Srl FERRARA Via Poledrelli 21 - 44121 (Fe) +39 0532 1640011 LAURIA Via Vico II Cairoli, 4 - 85044 (Pz) +39 0971 1680051 EMAIL info@midomet.com...
- Page 2 Table of Content 1. Introduction................................................... 2 2. Appearance ................................................... 2 3. Main Features ..................................................2 4.Set up Instruction ................................................... 2 5. Data Report ................................................... 3 6.Installation ..................................................... 4 7.Important Maintenance Instruction ............................................5...

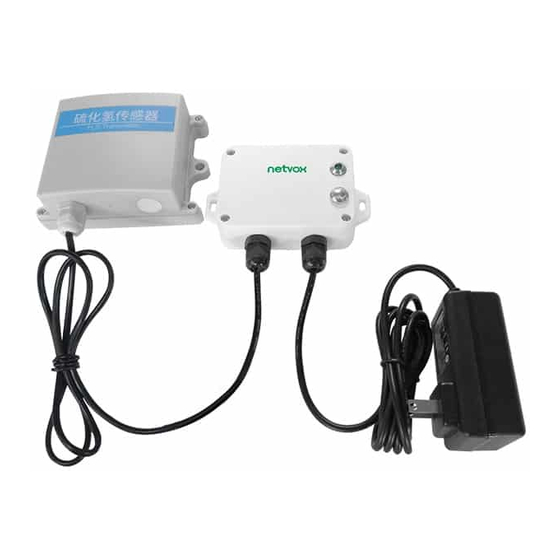

- Page 3 R718PA4is a long-range wireless occupancy detection device for MiDoMet Class A type devices based on LoRaWAN open protocol. The R718PA4 can be connected to a hydrogen sulfide sensor with RS485 to report the concentration of hydrogen sulfide collected by the device to the corresponding platform.
- Page 4 Maximum time: Max Interval Note: The real data sending cycle is programmed before shipment. There is no minimum time supported. R718PA4 defaults Max Interval = 60min. R718PA4 reports the hydrogen sulfide H S concentration value. The data parsing reported by the device is referenced by the MiDoMet LoraWAN Application Command document and www.midosmart.com...
- Page 5 MinTime = 1min, MaxTime = 1min Downlink: 0157003C003C0000000000 Device returns: 8157000000000000000000 (configuration is successful) 8157010000000000000000 (configuration is failed) (2) Read configuration parameters Read device parameters Downstream: 0257000000000000000000 Device returns: 8257003C003C0000000000 ( To read current report configuration parameter) 6.Installation This product comes with a waterproof function. When using it, users can attach the back side to the iron surface, or use screws to fix both ends to the wall.
- Page 6 7.Important Maintenance Instruction Your device is a product of superior design and craftsmanship and should be used with care. The following suggestions will help you use the warranty service effectively. • Keep the equipment dry. Rain, moisture, and various liquids or moisture may contain minerals that can corrode electronic circuits. In case the device is wet, please dry it completely.
