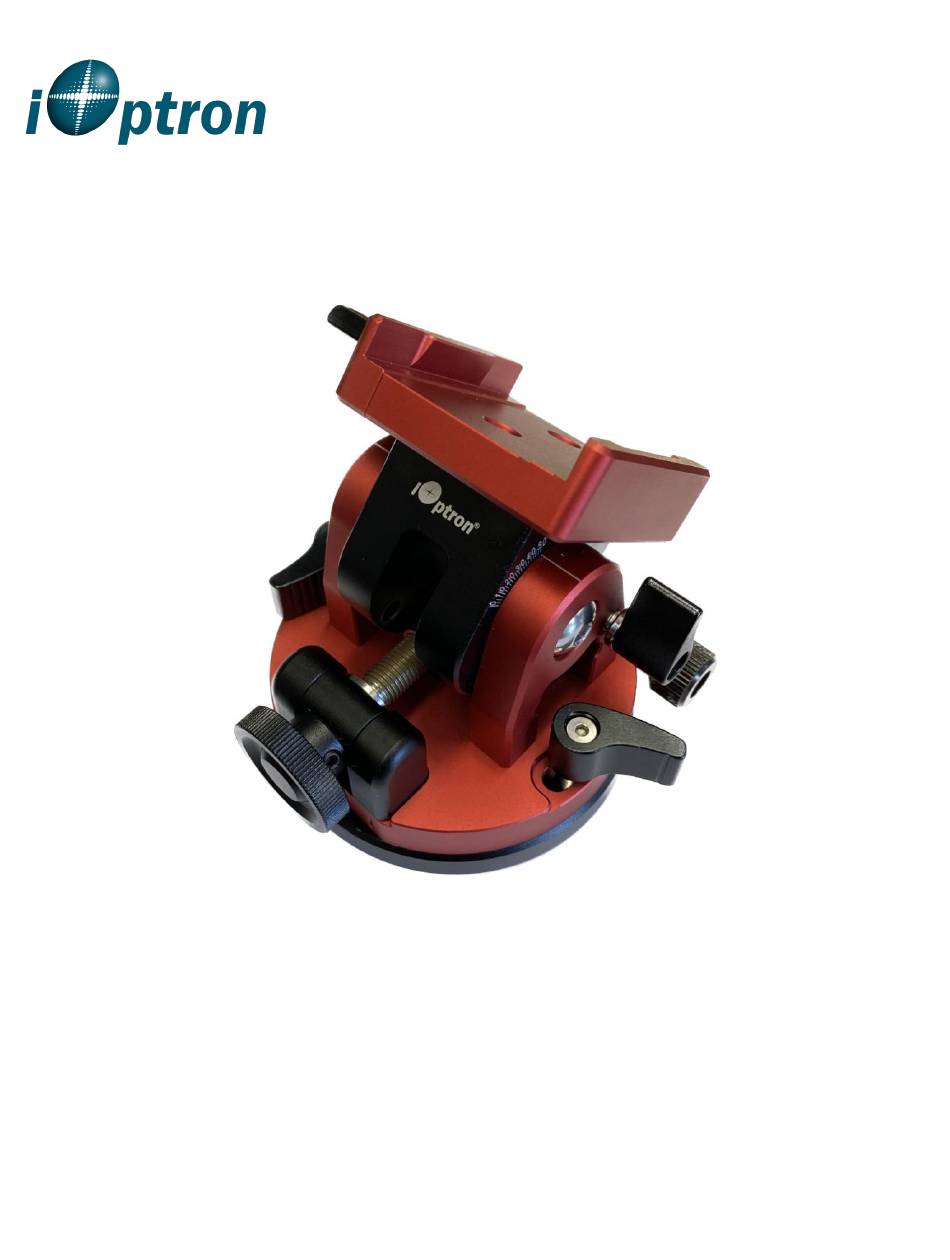

- Page 1 ® ® iOptron Precision AZ/EQ Base Instruction Manual Product #3328...
- Page 2 (AZ/EQ) base is designed for SkyHunter GOTO mount, SkyGuider Pro and SkyTracker Pro tracking mount. The base has a built-in bubble level. It accepts Vixen-type dovetail bar. The altitude adjustment range is from 0° to 90°.
- Page 3 Each scale has two adjustment ranges: Low Latitude Range 0° ~ 50° and High Latitude Range 40° ~ 90°. The low latitude range for SH is the high latitude for SGP, vice versa. Please check your local latitude number and the mount you’ll attach onto it.
- Page 4 4. Push from the threaded hole on the other side to push the Locking Pin out; 5. Now you can adjust the mounting block. Turn the mount block so the higher position hole on the yolk is aligned to the hole on the brass altitude adjuster; 6.
- Page 5 7. Fully tighten the Locking Pin. Now you’ve changed the AZ/EQ base from SGP low latitude range to SGP high latitude rage. Attach a Mount The AZ/EQ base has a 3/8”-16 threaded hole on the mounting base. It can be threaded onto any tripod with a3/8” threaded post.
- Page 6 Mounting Examples SkyGuider Pro at 57 degree SkyGuider Pro at 35 degree SkyHunter at 90 degree (AA) SkyHunter at 0 degree SkyHunter at 42 degree...
