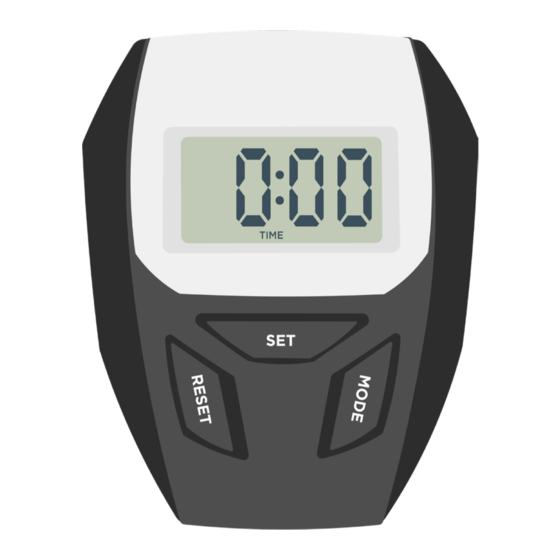

- Page 1 INSTRUCTION GUIDE RE100 MONITOR...
- Page 2 The contents of this manual are subject to change without notice to improve quality. © 2023 JLL Fitness Ltd JLL Fitness Ltd owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of JLL Fitness Ltd is prohibited.
-
Page 3: Table Of Contents
CONTENTS - Safety precautions p. 4 - Cleaning p. 5 - Installation p. 6 - Operation p. 7 p. 7 Exiting scan mode p. 7 Setting target programs p. 7 Resetting your monitor - Data readouts p. 8 - Troubleshoot p. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS The monitor on this machine has been tested to the required standards, each of those passed regulations are shown via the following symbols: WEEE - Waste Electrical and Electronic Equipment Recycling. ABS - Acrylonitrile Butadiene Styrene often referred to as ABS is a type of plastic that is an opaque thermoplastic. CE - The product conforms with relevant EU directives regarding health and safety or environmental protection. -
Page 5: Cleaning
CLEANING Please take care when cleaning this monitor as the LCD screen can easily be scratched. You will need a soft dry cloth Do not spray cleaning chemicals directly onto the monitor Do not apply water to the monitor as it is electrical and may damage the internal components... -
Page 6: Installation
INSTALLATION STEP 1 STEP 2 Insert the batteries, making sure they are the Remove the two screws from the back of the correct way round. monitor. STEP 3 STEP 4 Connect the male to female wires from the base Attach the monitor to the base using the two to the monitor. -
Page 7: Operation
OPERATION The RE100 monitor has a total of 6 readouts, displaying: Time Speed Distance Heart Rate Calories Odometer When first powered on, the monitor will automatically be in ‘Scan’ mode. This means the digits in the largest segment on the screen will change every few seconds between time, distance, speed etc. This will allow you to have an overview while training without pressing any buttons. -
Page 8: Data Readouts
DATA READOUTS Readout Measurement Time Minutes : Seconds Speed KM/H Distance Kilometres Pulse PPM (Pulsations Per Minute) Odometer Kilometres... -
Page 9: Troubleshoot
TROUBLESHOOT Issue Resolutions No power to the monitor • Make sure the batteries are fully inserted and the correct way round. • Check your connection wires from the monitor to the base. They must not be trapped, fully connected and the pins must be straight. -
Page 10: Contact Details
CONTACT DETAILS Tel: 0121 328 7507 Email: info@jllfitness.co.uk Live Chat: WWW.JLLFITNESS.CO.UK... - Page 12 @JLLFITNESS...
