BGS technic 7729 Instruction Manual

CONTENT

1 Twin head (2-legged puller)
2 Triple head (3-legged puller)
3 100 mm leg
4 150 mm leg
5 200 mm leg
6 Cross head
7 Hydraulic ram
8 Threaded sleeve
9 Main shaft
10 Separator 14 – 62 mm
11 Extension rod
12 Plunger
ATTENTION
Read the operating instructions and all safety instructions contained therein carefully before using the
product. Use the product correctly, with care and only according to the intended purpose. Non-
compliance of the safety instructions may lead to damage, personal injury and to termination of the
warranty. Keep these instructions in a safe and dry location for future reference. Enclose the
operating instructions when handing over the product to third parties.
Safety Informations
Do not use this tool set for other purpose for which it is designed.
•
• Observe the general safety instructions for garages.
Keep your work area tidy and clean. Areas or corridors which are untidy increase the risk of
•
injury.
• The following safety precautions are necessary because breaking and hurling pieces of the
pulled components can lead to serious injuries. Always wear safety goggles gloves.
Ensure a secure and well-gripped stance during fitting.
•
• Check the condition of the tool regularly and do not use it if it is damaged.
• Make sure the tool is properly mounted.
Do not over tighten the spindle or apply excessive force, as this may damage both the tool and
•
the component.
• The tool is not suitable for impact wrenches. The use of an impact wrench can rupture tool parts
and flying tool fragments can cause injury.
BGS technic KG
Bandwirkerstr. 3
D-42929 Wermelskirchen

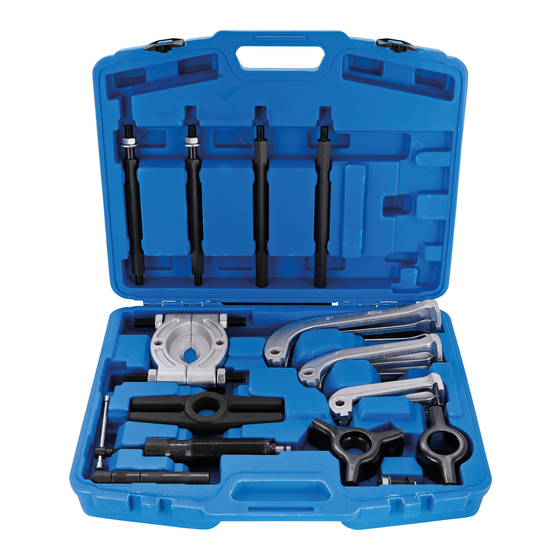

Hydraulic Puller Set, 10 t.
Tel.: 02196 720480
Fax.: 02196 7204820
mail@bgs-technic.de
BGS 7729
www.bgstechnic.com
© BGS technic KG, Copying and further use not allowed
