BGS technic 7750 Instruction Manual

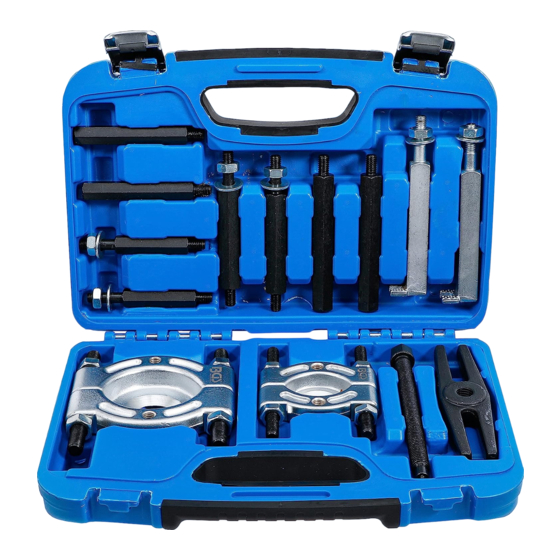

Mechanical puller for removing bearings, gears and bushes from shafts.
Suitable for engineering, automotive, marine and agricultural applications.

Included

2 / 2 circular puller halves made of forged steel
with the dimensions:
1 1/4 "- 2 1/4 " (30 mm - 50 mm)
Bolt: 9,5 mm x L 125 x 3 / 8 "x 24UNF
Extention: 3/8" x 16UNC
The product consists of a chromium-vanadium alloy and meets the highest quality standards.

Notes:

The manufacturer is not liable for damage to the shells of A, caused by the operation of the pressure
screw E, with a hammer instead of a wrench.
The L-shaped brackets F may be only used in pairing. The use of brackets as crowbar is strongly
discouraged.
Do not use the puller for pulling bearings and / or gear with too small outer diameters. All damage by
improper use of the tool, falling out of the guarantee facility of the manufacturer.
When assembled
SW-Stahl und Werkzeugvertriebs GmbH
L e v e k r u s r e t S a r s s e 6 5
D 4 - 2 8 9 7 R e m s c h e d i
Bearing and Gear Puller
Tel. +49 (0) 2191 / 46438-0
F ax +49 (0) 2191 / 46438-40
- E
2 / 2 circular puller halves made of forged steel
with the dimensions:
2 1/4" - 3 1/2" (30 mm - 75 mm)
Bolt: 12,7 mm x L 135 mm x 1 / 2 "x 20UNF
Extention: 3/8" x 15UNC
M a : l i n i o f @ s w s a t l h d . e
Art. 7750
