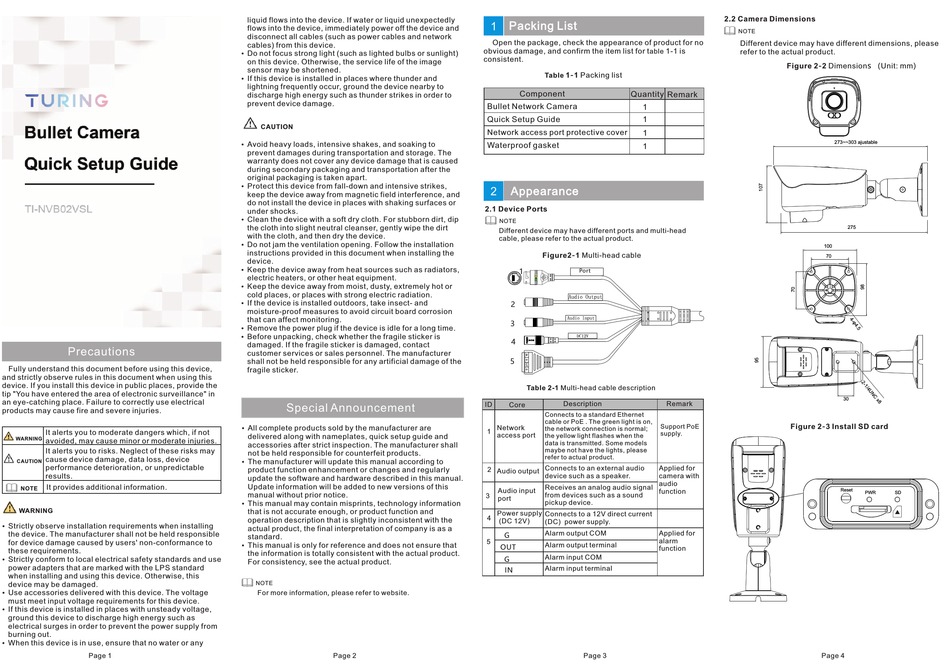

Turing TI-NVB02VSL Quick Setup Manual

Precautions
Fully understand this document before using this device,
and strictly observe rules in this document when using this
device. If you install this device in public places, provide the
tip "You have entered the area of electronic surveillance" in
an eye-catching place. Failure to correctly use electrical
products may cause fire and severe injuries.
It alerts you to moderate dangers which, if not
WARNING
avoided, may cause minor or moderate injuries.
It alerts you to risks. Neglect of these risks may
cause device damage, data loss, device
CAUTION
performance deterioration, or unpredictable
results.
It provides additional information.
NOTE
WARNING
Ÿ Strictly observe installation requirements when installing
the device. The manufacturer shall not be held responsible
for device damage caused by users' non-conformance to
these requirements.
Strictly conform to local electrical safety standards and use
Ÿ
power adapters that are marked with the LPS standard
when installing and using this device. Otherwise, this
device may be damaged.
Ÿ Use accessories delivered with this device. The voltage
must meet input voltage requirements for this device.
Ÿ If this device is installed in places with unsteady voltage,
ground this device to discharge high energy such as
electrical surges in order to prevent the power supply from
burning out.
When this device is in use, ensure that no water or any
Ÿ
Page 1
liquid flows into the device. If water or liquid unexpectedly
flows into the device, immediately power off the device and
disconnect all cables (such as power cables and network
cables) from this device.
Do not focus strong light (such as lighted bulbs or sunlight)
Ÿ
on this device. Otherwise, the service life of the image
sensor may be shortened.
If this device is installed in places where thunder and
Ÿ
lightning frequently occur, ground the device nearby to
discharge high energy such as thunder strikes in order to
prevent device damage.
CAUTION
Avoid heavy loads, intensive shakes, and soaking to
Ÿ
prevent damages during transportation and storage. The
warranty does not cover any device damage that is caused
during secondary packaging and transportation after the
original packaging is taken apart.
Protect this device from fall-down and intensive strikes,
Ÿ
keep the device away from magnetic field interference, and
do not install the device in places with shaking surfaces or
under shocks.
Clean the device with a soft dry cloth. For stubborn dirt, dip
Ÿ
the cloth into slight neutral cleanser, gently wipe the dirt
with the cloth, and then dry the device.
Do not jam the ventilation opening. Follow the installation
Ÿ
instructions provided in this document when installing the
device.
Ÿ Keep the device away from heat sources such as radiators,
electric heaters, or other heat equipment.
Keep the device away from moist, dusty, extremely hot or
Ÿ
cold places, or places with strong electric radiation.
If the device is installed outdoors, take insect- and
Ÿ
moisture-proof measures to avoid circuit board corrosion
that can affect monitoring.
Remove the power plug if the device is idle for a long time.
Ÿ
Before unpacking, check whether the fragile sticker is
Ÿ
damaged. If the fragile sticker is damaged, contact
customer services or sales personnel. The manufacturer
shall not be held responsible for any artificial damage of the
fragile sticker.
Special Announcement
All complete products sold by the manufacturer are
Ÿ
delivered along with nameplates, quick setup guide and
accessories after strict inspection. The manufacturer shall
not be held responsible for counterfeit products.
Ÿ The manufacturer will update this manual according to
product function enhancement or changes and regularly
update the software and hardware described in this manual.
Update information will be added to new versions of this
manual without prior notice.
This manual may contain misprints, technology information
Ÿ
that is not accurate enough, or product function and
operation description that is slightly inconsistent with the
actual product, the final interpretation of company is as a
standard.
This manual is only for reference and does not ensure that
Ÿ
the information is totally consistent with the actual product.
For consistency, see the actual product.
NOTE
For more information, please refer to website.
Page 2

Packing List

1
Open the package, check the appearance of product for no
obvious damage, and confirm the item list for t able
consistent.
Table 1-1 Packing list
Component
Quantity Remark

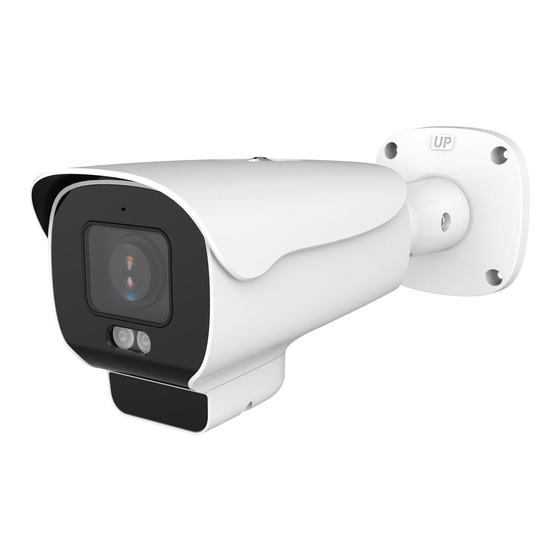

Bullet Network Camera
1
Quick Setup Guide 1
Network access port protective cover
1
Waterproof gasket
1
Appearance
2

Device Structure

2.1 Device Ports

NOTE
Different device may have different ports and multi-head
cable, please refer to the actual product.
Figure2-1 Multi-head cable
1 Port
2
3
4
5
Table 2-1 Multi-head cable description
Description
ID Core
Connects to a standard Ethernet
cable or PoE . The green light is on,
Support PoE
Network
the network connection is normal;
1
supply.
access port the yellow light flashes when the
data is transmitted. Some models
maybe not have the lights, please
refer to actual product.
Connects to an external audio Applied for
2
Audio output
device such as a speaker. camera with
audio
Receives an analog audio signal
Audio input
function
from devices such as a sound
3
port
pickup device.
Power supply Connects to a 12V direct current
4
(DC 12V)
(DC) power supply.
Alarm output COM Applied for
G
alarm
5
Alarm output terminal
OUT
function
Alarm input COM
G
Alarm input terminal
IN
Page 3

2.2 Camera Dimensions

NOTE
Different device may have different dimensions, please
1-1 is
refer to the actual product.
Figure 2-2 Dimension
273~~303 ajustable
100
70
30
Remark
Figure 2-3 Install SD card
Reset
Page 4
s （Unit: mm）
275
PWR SD
