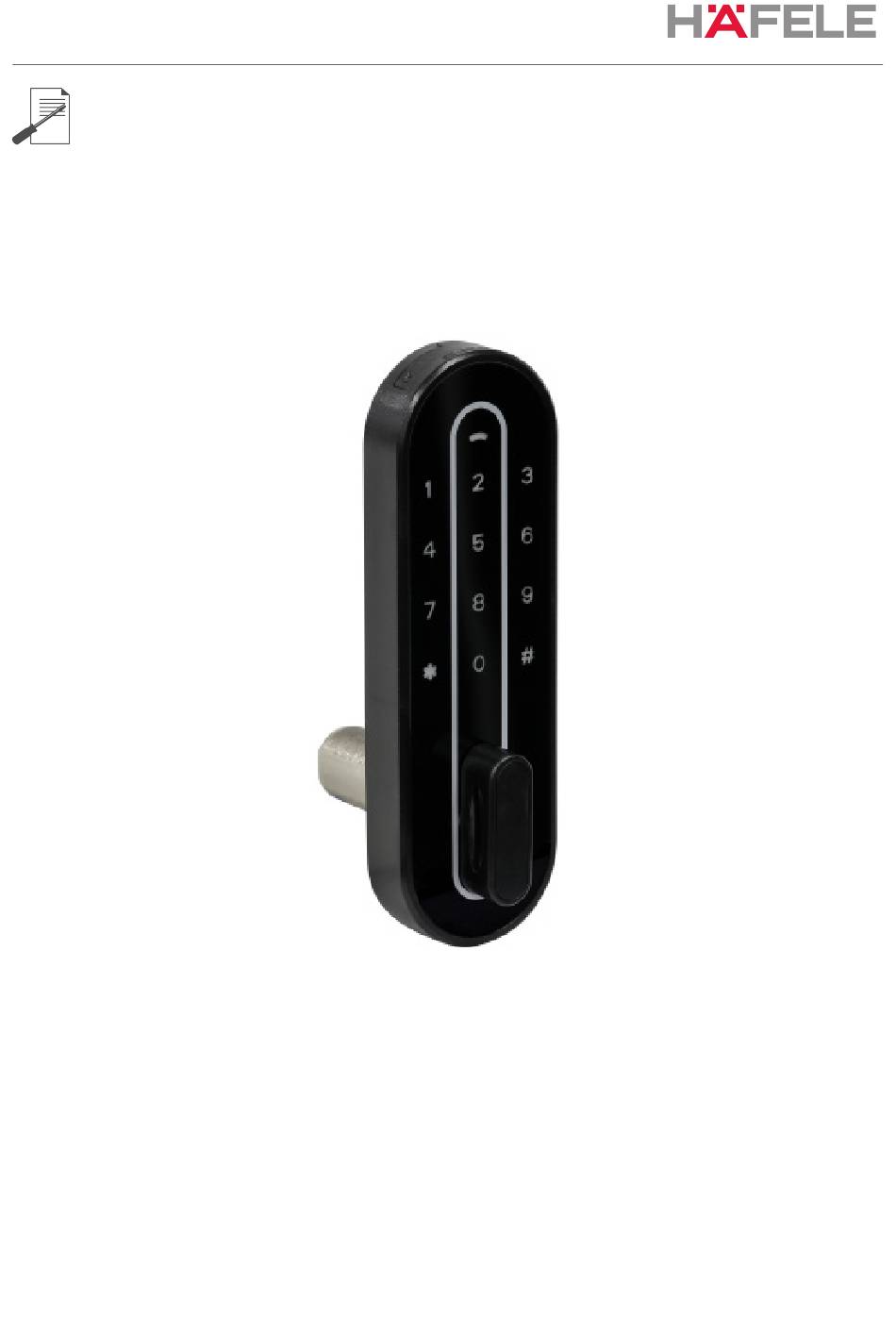

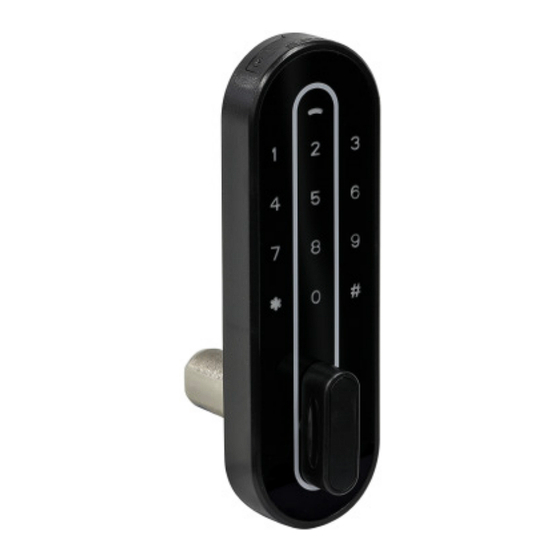

- Page 1 HLS100 - USER MANUAL HLS100 USER MANUAL...
-
Page 2: Table Of Contents
CONTENTS 1. PRODUCT DIMENSIONS PAGE 3 2. PRODUCT FUNCTIONS PAGE 4 PAGE 4 2.1 PARAMETERS 2.2 FUNCTIONS & FEATURES PAGE 4-5 3. OPERATIONS PAGE 6 3.1 MULTI USER MODE PAGE 6 3.1.1 MODE INTRODUCTION PAGE 6 3.1.2 SET LOCK INTO MULTI USER MODE PAGE 7 PAGE 7 3.1.3 CHANGE THE MANAGER CODE... -
Page 3: Product Dimensions
HLS100 - USER MANUAL 1. PRODUCT DIMENSIONS... -
Page 4: Product Functions
HLS100 - USER MANUAL 2. PRODUCT FUNCTIONS 2.1 PARAMETERS Material ABS for lock body shell, Zinc alloy for panel Power consumption Stand-by power consumption<10mA Static power consumption <25uA Load current <300mA Working voltage DC3V (2x CR2032 button cell battery) Estimated working life 1 year... - Page 5 HLS100 - USER MANUAL Functions Features Sound prompt Lock will prompt with sound when input correct/incorrect code and when battery is in low voltage. Light prompt Green: correct operation Red: wrong operation Blue: low voltage Alarming function Input the incorrect code and lock will shine in red three times and prompt with “beep beep beep”.
-
Page 6: Operations
HLS100 - USER MANUAL 3. OPERATIONS 3.1 MULTI USER MODE 3.1.1 MODE INTRODUCTION Lock remains unlocked under multi user mode. Any 4-8 digit code can be used to lock and unlock. Important: Manager code should be programmed first as the manager code can be used for emergency unlock. -
Page 7: Set Lock Into Multi User Mode
HLS100 - USER MANUAL 3.1.2 SET LOCK INTO MULTI USER MODE *#2# > manager code # > 1# INPUT 1#, INPUT MANAGER MOTOR REVERSE, INPUT *#2#, SET TO MULTI CODE #, LIGHT AND GREEN LIGHT GREEN LIGHT USER MODE WILL... -
Page 8: Single User Mode
HLS100 - USER MANUAL 3.2 SINGLE USER MODE 3.2.1 MODE INTRODUCTION Lock remains locked under single user mode. Input the user code to unlock, 5 seconds later, motor reverse and lock will prompt with a “beep” to close. Turn the knob to the locked position. -
Page 9: Change The Manager Code
HLS100 - USER MANUAL 3.2.3 CHANGE THE MANAGER CODE (FACTORY SETTING: 456789) *#1# > old manager code # > new manager code # > new manager code # INPUT THE LOCK WILL INPUT *#1#, INPUT THE PROMPT WITH MANAGER GREEN LIGHT MANAGER “BEEP”... -
Page 10: Limited Single User Mode
HLS100 - USER MANUAL 3.3 LIMITED SINGLE USER MODE 3.3.1 MODE INTRODUCTION Lock remains unlocked under limited single user mode. Input the user code to unlock and it will stay unlocked until user code is used to lock. Important: Manager code and user code should be set first. -
Page 11: Change The Manager Code
HLS100 - USER MANUAL 3.3.3 CHANGE THE MANAGER CODE (FACTORY SETTING: 456789) *#1# > old manager code # > new manager code # > new manager code # LOCK WILL INPUT THE PROMPT WITH INPUT *#1#, INPUT THE SET MANAGER “BEEP”... -
Page 12: Reset Lock
HLS100 - USER MANUAL 4. RESET LOCK OPTION 1: LOCK WILL PROMPT WITH PRESS THE “RESET” BUTTON “BEEP BEEP BEEP” RESET THE LOCK ON THE BACK OF THE LOCK AND GREEN LIGHT SUCCESSFULLY FOR 2 SECONDS WILL BLINK TWICE OPTION 2: Input “*#5#”, the lock will prompt with a “beep beep”... - Page 13 HLS100 User Manual - 11.21 Häfele Australia Pty. Ltd. | 8 Monterey Road | Dandenong | Victoria 3175 Phone: 1300 659 728 | Fax: (03) 9212 2001 | Email: info@hafele.com.au | www.hafele.com.au Häfele New Zealand Ltd. | 16 Accent Drive | East Tamaki | Auckland 2013 Phone: 0800 442 335 | Email: info@hafele.co.nz |...
