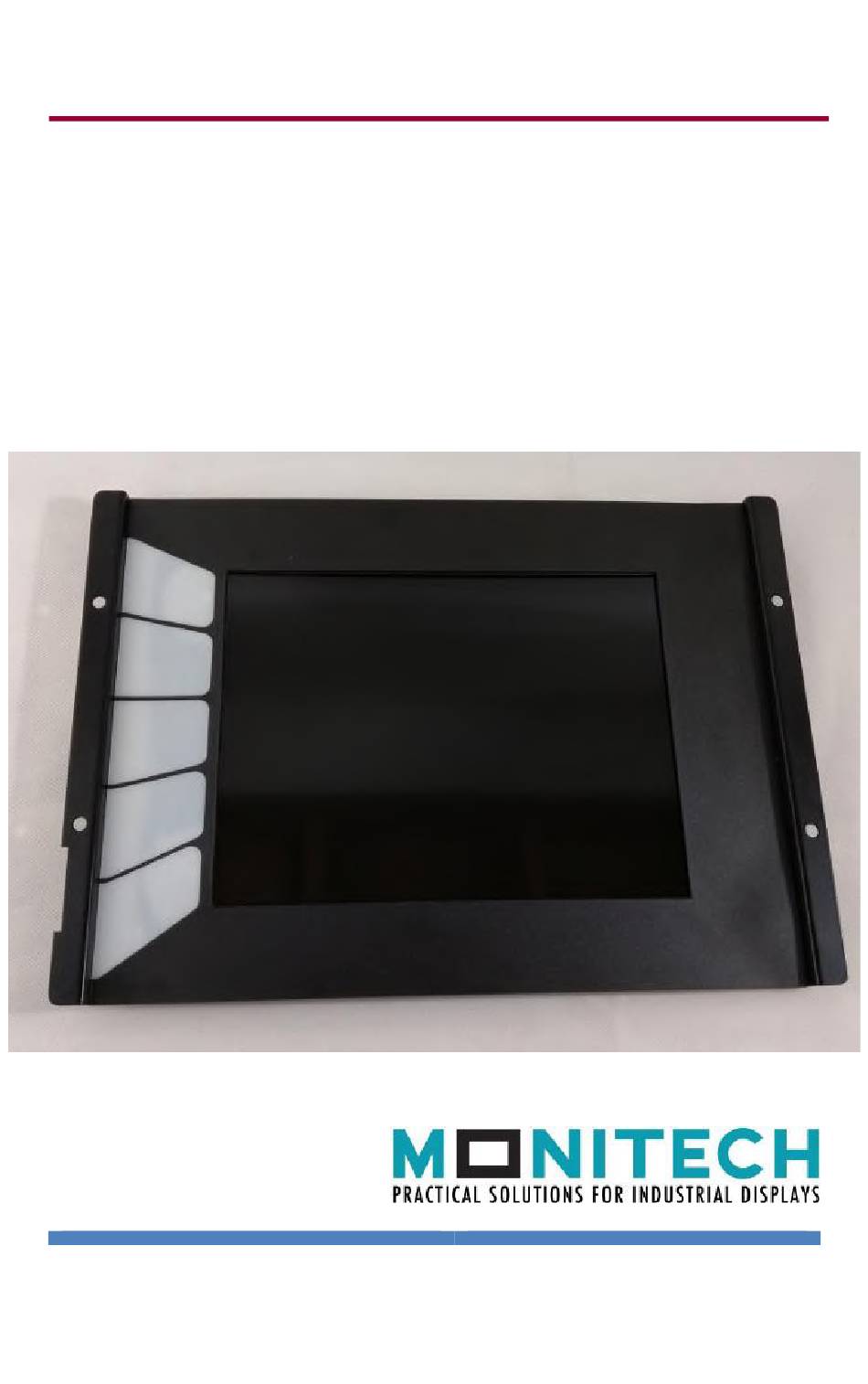

- Page 1 INSTALL GUIDE M P 1 0 4 P 5 7 8 5 Replacement LCD For Flat Panel Assembly for Panel mate Power Pro 5785 - Panel mate Power Pro Eaton / Cutler Hammer Model 5785K - Replaces Sharp LQ130V3DZ31 M21A06-MP104P5785...
-
Page 2: Warranty
IMPORTANT: WARRANTY Before using any MONITECH product please carefully review this Manual as well as any additional documentation provided with your shipment. Attempting any of the following will void product warranty: • unauthorized repairs or parts replacement • inappropriate use or placement: exposing product to liquids, harmful gases, electrical shock, physical shock, temperatures beyond the range of -4°F to... - Page 3 REMOVALE: Step #1) Turn off turn off main power, turn off machine. Step #2) Unplug the 24 VDC Power Plug, Serial Ports and other plugs. Unplug these cables Step #3) Remove the HMI out of the machine by Unscrewing the mounting nuts around the HMI. Keep nuts for re-installation.
- Page 4 Step #4) Remove the back metal & the board from the HMI by unscrewing the following screws. Keep screws from re-installation. Unscrew these screws to remove the back metal Remove the board, by unscrewing the board. M21A06-MP104P5785...
- Page 5 Step #5) Unplug the power connector, the LVDS cable & the Touchscreen Connector Unplug the Touchscreen Connector Unplug the LVDS Cable Unplug the Power Connector Step #6) Unscrew the screws holding the middle metal to take it off. Unscrew surrounding screws to remove the middle metal off M21A06-MP104P5785...
-
Page 6: Installation
INSTALLATION: Step #8) Get your Monitech Monitor MP104P5785 & cables proved to you in the box. Place the Monitech LCD Replace into this Screw the nuts into position. And fasten the LCD with the nuts to the studs to hold... - Page 7 Step #9) Get the board removed in Step # 4. Get the LVDS Cable from our box. Plug it into the LCD and the Board. Step #10) Place the middle metal piece back on. Screw in the middle metal and on with the screws.
- Page 8 Step #11) Cut the RED & Black wires from the power supply to the board. then connect the red and black into our white terminal as shown. OR Use MAV098 instead. M21A06-MP104P5785...
- Page 9 Step #12) Mount the board back onto the middle metal. Then connect your touch screen cable back on the board. Mount the power supply back on the middle metal. Step #13) Mount the back cover back with the screws and then power up the HMI with 24 VDC. Then mount your HMI back in your machine.
- Page 10 Enjoy your rejuvenated display!!! From the Monitech Family we thank you for business. M21A06-MP104P5785...
- Page 11 For Technical Support, Call 1-877-493-6105 Support@Monitech.com M21A06-MP104P5785...
- Page 12 20 Howard Place Kitchener, Ontario N2K 4Z4 CANADA 519.725.222 M21A06-MP104P5785...
