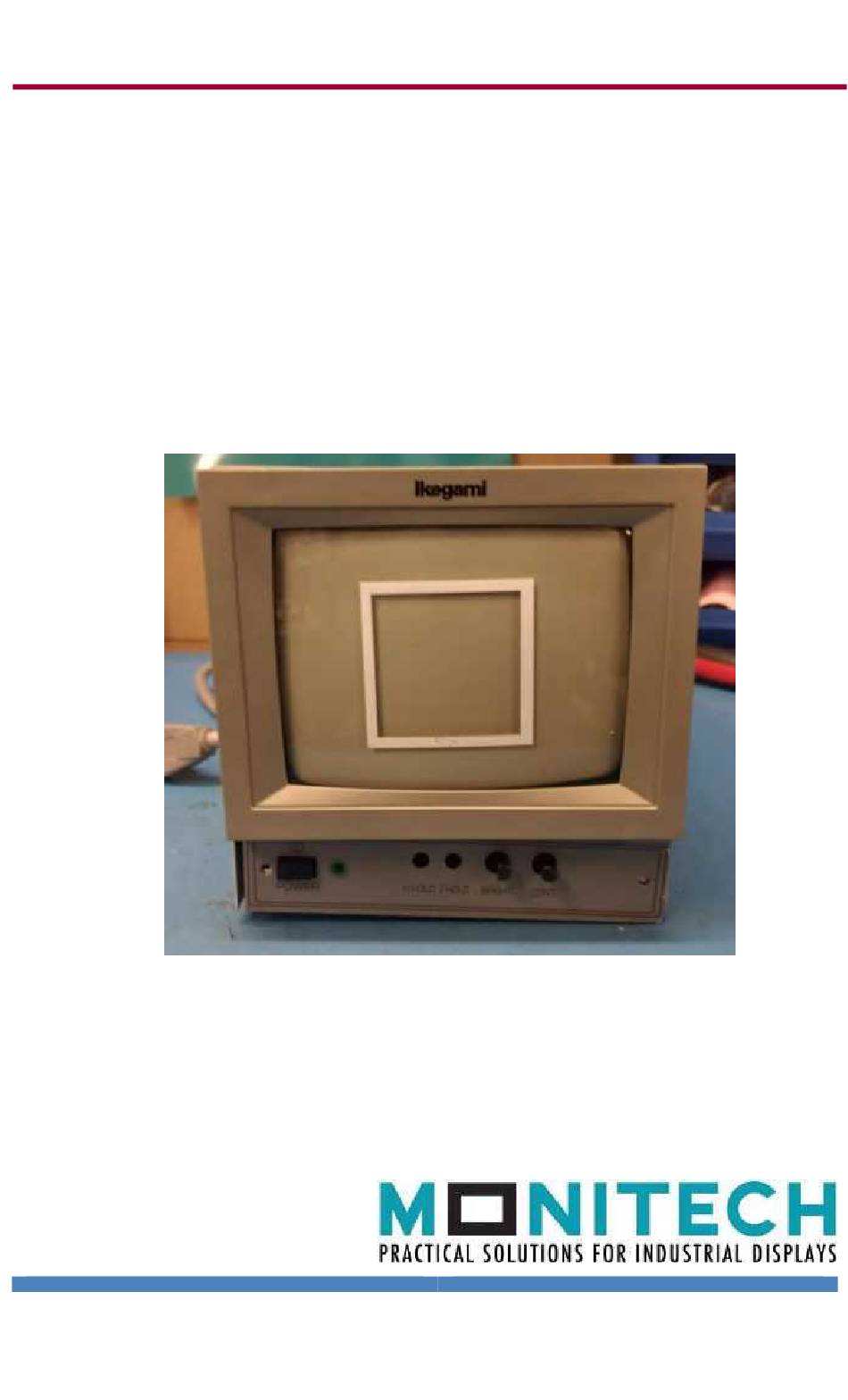

- Page 1 INSTALL GUIDE M L 0 5 0 C T 5 0 9 LCD upgrade kit FOR YOUR IKEGAMI PM-509 M20A03-CT509...
- Page 2 IMPORTANT: WARRANTY Before using any MONITECH product please carefully review this Manual as well as any additional documentation provided with your shipment. Attempting any of the following will void product warranty: • unauthorized repairs or parts replacement • inappropriate use or placement: exposing product to liquids, harmful gases, electrical shock, physical shock, temperatures beyond the range of -4°F to...
- Page 3 Step #3) Remove the CRT out of the chassis by unfastening the 4 mounting nuts that hold the CRT in place. Keep the nuts because you are going to need them to put your Monitech LCD Upgrade back into your machine. Nuts that are to...
- Page 4 Step #4) Remove CRT out of chassis by, first grounding out CRT by placing a flathead screwdriver underneath the anode lead, and make sure the screwdriver is touching the metal in the middle of the anode lead and the other end is touching the ear of the CRT and have another screw driver cross with your flat head screw driver.
- Page 5 ASSEMBLE: Step #5) Now you have an open chassis. Place Monitech’s LCD Upgrade on to the chassis by using the same holes that held your CRT. Use the nuts previously removed to hold the LCD in place. Screw in the User Controls.
- Page 6 Step #6) Remove the board off the back cover by snipping the metal wires. Remove the IN BNC and replace it with our BNC (MAV051). Cut the wire attaching the power to the boards. Crimp and fasten MAP204 to power wires.
- Page 7 INSTALLATION: Step #8) Plug in the power cord. Plug BNC to a DVD player using our test cable. Press power button on user controls. Check if monitor is working. If you want to double check, turn power off then unplug BNC connector and plug MAV050 into board shown in picture below.
- Page 8 Call us to order more replacement parts. Keep your Panelview 550 up and running! Fiber optic MB550FOS Fiber optic MB55FOL LED backlight MB550E Keypad MF550K Touchscreen MF550T Keypad-touchscreen MF550B For Technical Support, Call 1-877-493-6105 Support@Monitech.com 20 Howard Place Kitchener, Ontario N2K 4Z4 CANADA 519.725.222 M20A03-CT509...
