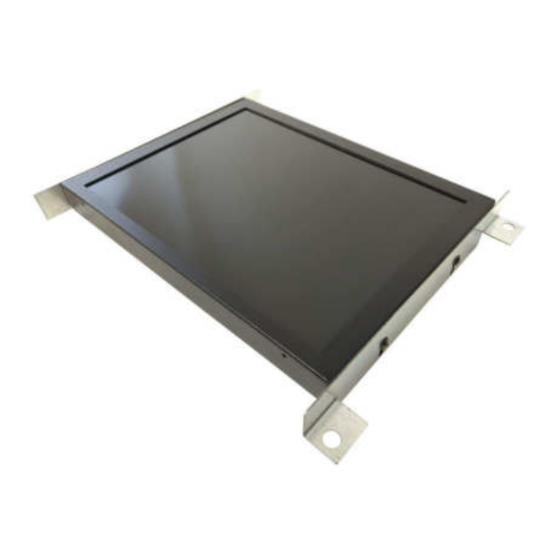

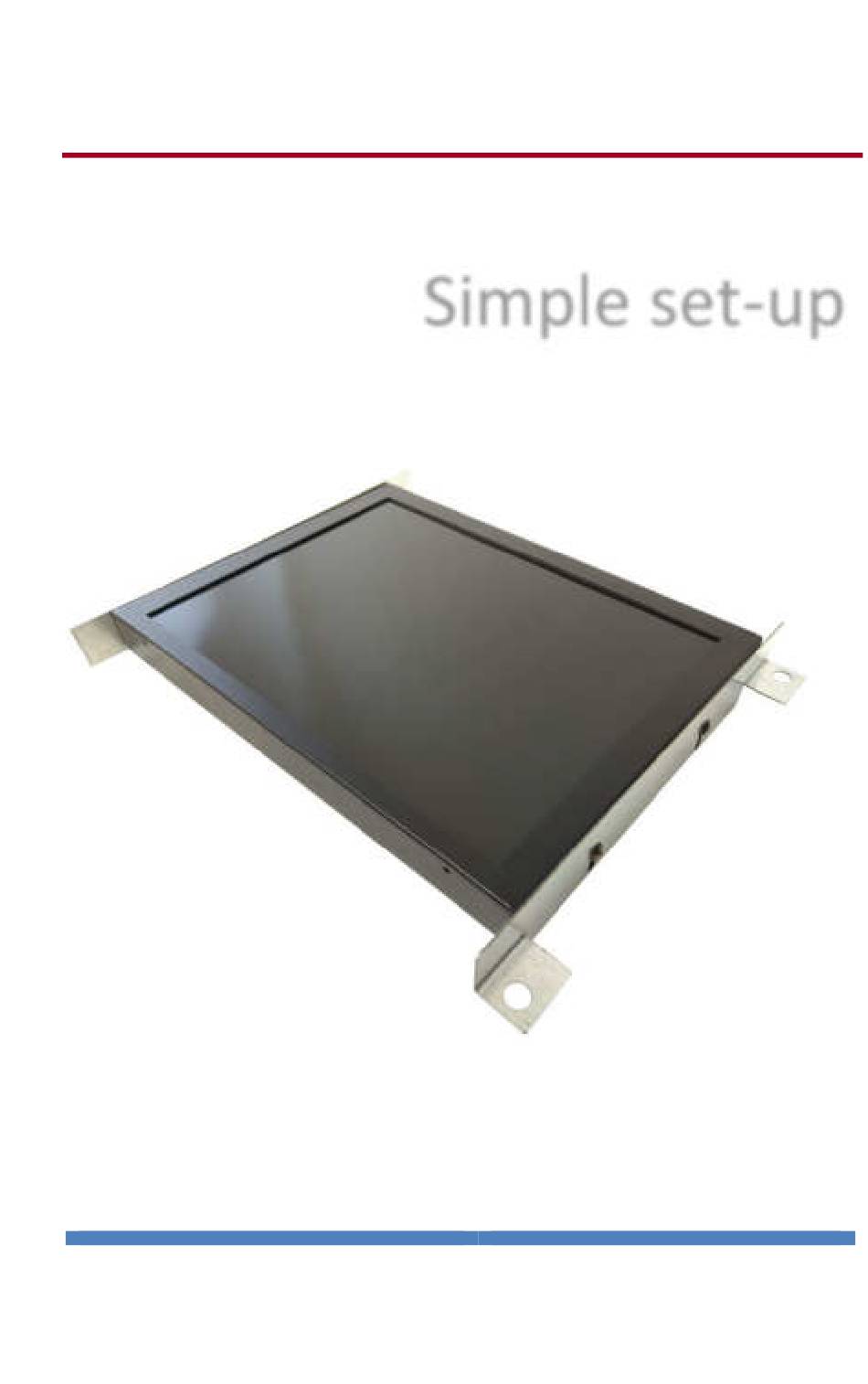

- Page 1 USER MANUAL LLS SERIES 12.1-INCH LCD Simple set-up M20B09-ML121LL00S...
- Page 2 IMPORTANT WARRANTY Before using any MONITECH product please carefully review this Manual as well as any additional documentation provided with your shipment. Attempting any of the following will void product warranty: • unauthorized repairs or parts replacement • inappropriate use or placement: exposing product to liquids, harmful gases, electrical shock, physical shock, temperatures beyond the range of -4°F to 140°F...
-
Page 3: Mounting Brackets
1.Mounting Brackets This line of Monitech Product has Mounting brackets that you will attach onto the side of our monitor by unscrewing the screws on the side and placing the brackets on by screwing in the screws that you just removed. These brackets help you mount the monitor to the old CRT frame of your application. - Page 4 2. Secure a video signal. Once you have mounted your new Monitech LCD into your control panel with the video and power cables attached, the monitor will power up automatically. It should also start receiving the video signal from your machine.
- Page 5 Press MENU to open the menu. Press MENU again to select an item. When the item is selected, it will turn red. Press to adjust values. Press MENU again to go back to the list, then use the arrows to move up and down in the list.
- Page 6 The picture shows the default values for each item. The bottom line (Info) shows specific values for your machine’s video signals. NOTE: If the Info values show 00.00, there is no video signal. Again, verify that the video cable is secured before you do anything else. 4.
- Page 7 SYNC This setting automatically detects what you are using. You can adjust to Separate (UV), Composite (S) or SOG (sync on green). RESISTANCE 750 Ω is the default. If your video is saturated or text is “blooming” like the image on the left, change it to 75 Ω. BEFORE AFTER SCANNING...
- Page 8 MENU and the PICTURE menu will RESET.) Press appear: Now press the up or down buttons to select what feature you would like to change. Press MENU to enter. Then use the up or down to adjust the value of ...
-
Page 9: Adjust Picture
your selection. To exit, press AUTO until it goes away. 6. Adjust Picture Fine-tune the image by adjusting the horizontal (H) and vertical (V) positions as well as the phase & clock. Video connector This picture shows the value for six pins on the video M20B09-ML121LL00S... - Page 10 connector at the back of the monitor. (The other pins are not used. M20B09-ML121LL00S...
- Page 11 Tips to optimize your image My screen is blue. This means the LCD is getting no video signal from the machine. Reseat the video connector and secure it. I cannot see a right or left edge of the image. In the 3-button menu, select WIDTH and adjust down until you can see the right edge of your video.
- Page 12 Ensure the video cable does not run close to high-power devices or cables. Ensure all cables are securely seated and free of damage. For Technical Support, Call 1-877-493-6105 Support@Monitech.com 20 Howard Place Kitchener, Ontario N2K 2Z4 Canada 519-725-2222 www.monitech.com sales@monitech.com...
