GreenTec LRS Quick Start

Saw

LRS saw Quick start.

This Quick Start shows and describes how to unpack and mount an LRS saw on HXF tool

carrier.

Mounting on other tool carrier is often done in the same way – always use user manual from

current tool.

The following sections will show step by step images with explanations:

Mounting the LRS saw on the tool carrier.

Mounting the branch guides under the saw blades and adjusting the black plastic rejecter

The mounting of the tool carrier and saw must be carried out safely and wisely.

• Make sure that the tractor and the front loader can carry the tool

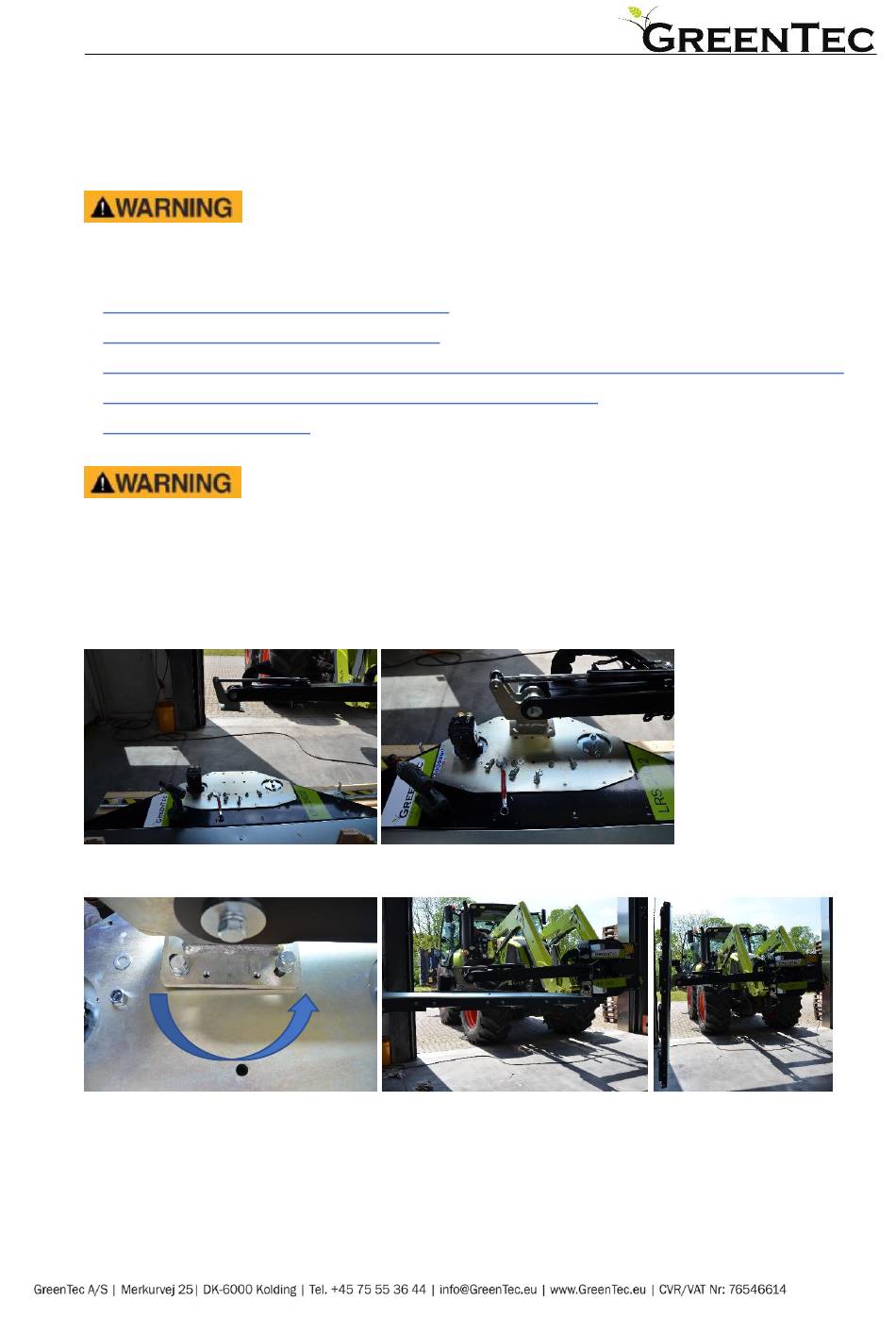

Mounting the LRS saw on the HXF Multi carrier.

Gently move the arm to the mounting plate of the saw. You may use a pallet loader to fine-

tune the position of the saw. Mount 4 bolts and 2 nuts and tighten them loosely on the saw.

Before tightening, turn the entire saw anticlockwise so that the top saw blades cut the hedge first; tighten the bolts

with 140 Nm.

Please remember, this Quick Start does not replace the user manual.

Always carefully read the user manual.

carrier and the LRS saw in a safe and stable way, even if the saw

hangs on the side.

• Assembly must only be carried out on a flat and firm surface, with

ample space so that the tractor and the tools can be freely

manoeuvred without risk of getting caught.

Table of Contents

Do you have a question about the LRS and is the answer not in the manual?

Page 1 LRS saw Quick start. This Quick Start shows and describes how to unpack and mount an LRS saw on HXF tool carrier. Mounting on other tool carrier is often done in the same way – always use user manual from current tool.
Page 2 (return and drain must not be coupled in the same tank connection). See the user manual for the LRS saw. Mounting saw blades and branch guides • Beware of the sharp saw blades. Avoid cuts - always use heavy leather gloves.
Page 3 Mounting the branch guides under the saw blades and adjusting the black plastic rejecter Dismount the 2 bolts and place the branch guide under each saw blade and tighten the bolts by hand. As close as The "plastic possible, without rejecter"...
Page 4 • Is the Belt for the saw blades still properly aligned? Adjust the Belts Now the HXF and the LRS saw are ready for use. Always remember to use safeguards on the blades for transport and storage. Mounting the safeguards •...
