Summary of Contents for Aputure amaran PT

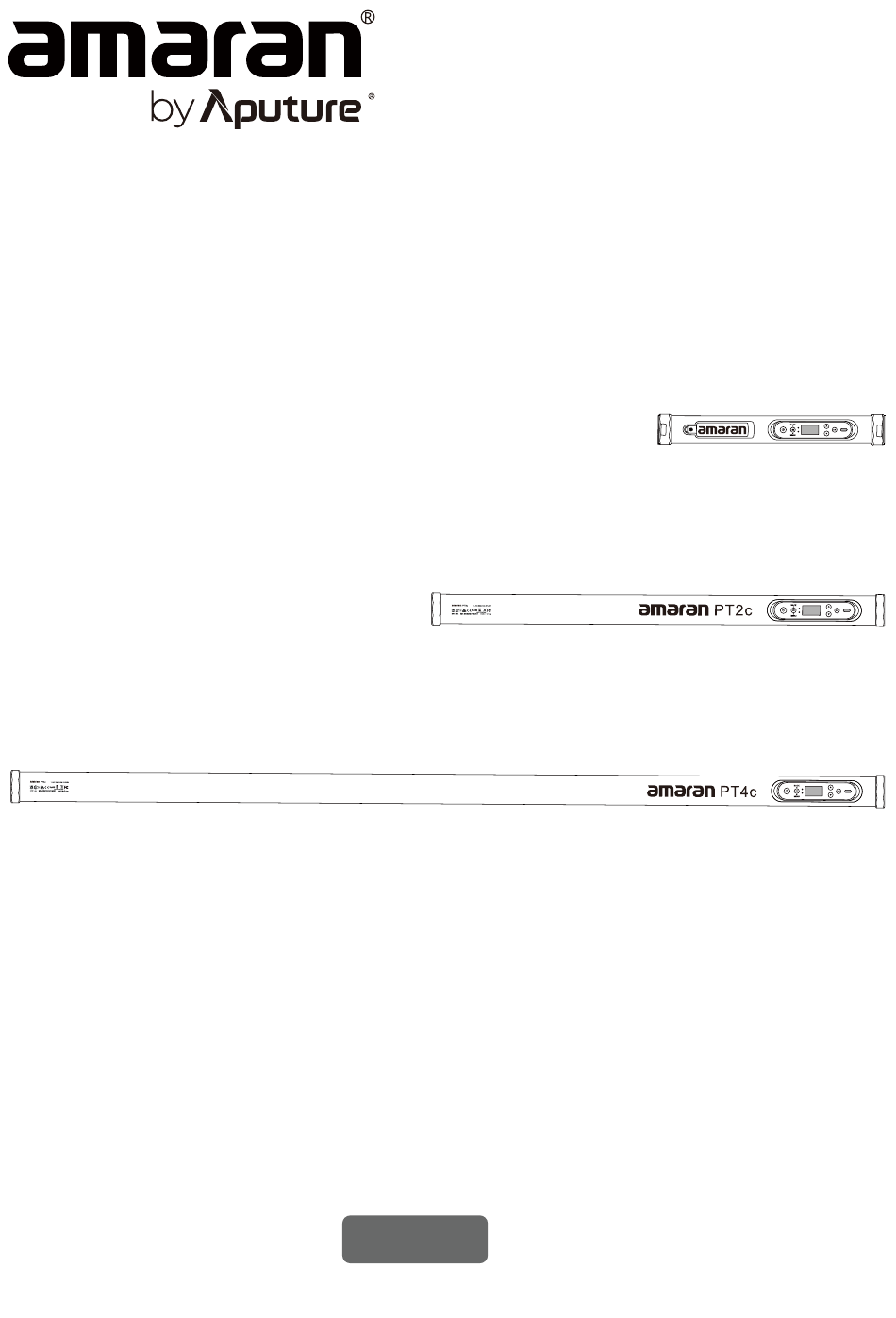

- Page 1 PT Product Manual English...
-
Page 2: Important Safety Instructions
10. To reduce the risk of electric shock, do not immerse this fixture in water or any other liquids. 11. To reduce the risk of fire or electric shock, do not disassemble this fixture. Contact cs@aputure.com or take the lighting fixture to qualified service personnel when service or repair is required. -
Page 3: Fcc Compliance Statement
FCC Compliance Statement WARNING Changes or modications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 4 PT2c Magnetic T12 Bracket x 2 PT2c x 1 Power Adapter x 1 Carrying Bag x1 3/8”-16 Eyebolt x 1 PT4c PT4c x 1 Carrying Bag x1 Power Adapter x 1 Magnetic T12 Bracket x 2 3/8”-16 Eyebolt x 1 Note: The illustrations in the manual are only diagrams for reference.
-
Page 5: Product Details
OK (Enter) Button USB-C Charging/DMX port 3/8”-16 Female Threaded Holes PT2c / PT4c Note: PT2c shown as an example Operations 1. Power ON/OFF Press and hold the power button fo 3 seconds to turn the amaran PT on or off. -
Page 6: Manual Control
2. USB Type-C Charging 100 - 240 V Note: PT1c only supports 5V /2A power adapter or mobile power charging. Note: Charging rate will slow down when the light is powered on. Turn the light off for optimal charging. 3. Manual Control 3.1 Root Menu Screen Bluetooth status Battery remaining time... -
Page 7: Light Mode
3.2 Menu Press MENU to access the system menu, press the Up/Down buttons and press the OK button to select the Light Mode / Bluetooth Settings / DMX Settings / System Settings. 3.3 Light Mode 3.3.1 CCT Press the Up/Down buttons and press the OK button to select CCT in Light Mode. INT (Intensity): 0 - 100 % CCT (Correlated Color Temp.): 2700 K - 10000 K G/M (Green / Magenta adjustment): -1.0 ~ ＋1.0... - Page 8 3.3.3 SYS FX Press the Up/Down buttons and press the OK button to select SYS FX in Light Mode. Press the Up/Down buttons and press the OK button to select one of the 9 available lighting effects. SYS FX Sub-menu control screen layout: Control Parameter Lighting Effect Name Battery Level...
-
Page 9: Dmx Settings
Press the Up/ Down buttons to select DMX Settings. DMX Address : Set the DMX address of amaran PT, press and hold the OK button for 2 seconds to lock / unlock the DMX address (To prevent accidental touch to exit DMX mode). -
Page 10: Dmx Address
Note: The fade-out time decreases as the percentage of brightness decreases. When the brightness output is 100%, the fade-out time is 60 seconds, which decreases in sequence. Note: If the signal is reconnected, the DMX console will continue to maintain the signal output as same as before. DMX Address DMX Profiles 1: CCT&RGB 8-bit... -
Page 11: Screen Saver
Screensaver 120s Product Info: Press the Up / Down buttons and press the OK button to select Product Info to see the Firmware Version. Product Info Firmware Power Mode : Press the Up/Down buttons and press the OK button to select a Power Mode. Power mode With battery No battery... - Page 12 Factory Settings: Light Mode: Intensity 50%, CCT 5600K, GM 0 BT Status: ON DMX: Address 001, Profile CCT&RGB, Hold Last Setting. System setting: Language English, screensaver off. 4. Wired DMX Control 4.1 Connect a standard DMX controller Connecting DMX to the first PT fixture OUTPUT DMX512 Daisy chaining multiple lights using DMX...
- Page 13 4.4 Controlling Device Via DMX The amaran PT offers a variety of DMX modes. Please find a detailed overview of all DMX modes in the document, DMX Chart is available for free download on the Aputure official website https://www.aputure.com. 5. Using the Sidus Link APP You can download the Sidus Link app from the iOS App Store or Google Play Store for enhancing the functionality of the light.
-
Page 14: Specifications
Specifications Maximum Power Draw PT1C: 8W PT2C: 16W PT4C: 32W Maximum Power Output PT1C: 6W PT2C: 11.5W PT4C: 23W 2,700 - 10,000K CCT Range CRI (@5600K) TLCI (@5600K) CQS (@5600K) SSI (Tungsten) SSI (D56) TM-30 Rf (@5600K) TM-30 Rg (@5600K) PT1C: 4 Pixel Mapping PT2C: 8... - Page 15 Operating Temperature -10 C ~ 40 C / 14 F ~ 104 F Control Methods On-board, Sidus Link App, DMX via USB Type-C Firmware Upgrade Method Sidus Link < _ < _ Wireless Operating Range (Bluetooth) 80m / 262.5ft Screen Type IP Rating IP20 Cooling Method...
- Page 16 PT2c 0.5 m 2700K 586 lux 180 lux 3200K 595 lux 181 lux 4300K 613 lux 185 lux 5600K 647 lux 195 lux 6500K 643 lux 194 lux 7500K 612 lux 185 lux 10000K 563 lux 83 lux PT4c 0.5 m 2700K 867 lux 303lux...
- Page 17 Detailed Parameters of FX Control System FX 0% - 100% 2700K - 10000K Paparazzi -1.0 - 1.0 1 - 10, Random Stop / Loop Status 0% - 100% 2700K - 10000K Lightning -1.0 - 1.0 1 - 10, Random Stop / Trigger /Loop Status 0% - 100% Warmer...
- Page 18 0% - 100% 1 - 10, Random 2700K - 10000K -1.0 - +1.0 Faulty Bulb Mode 1 - 10, Random - ° ° 9 0% - 100% Stop / Loop Status 0% - 100% 1 - 10, Random 2700K - 10000K -1.0 - +1.0 Pulsing Mode...
- Page 19 0% - 100% Mode Firework CCT+HUE 1 - 10, Random Stop / Loop Status Pixel FX 0% -100 % 2/ 3/ 4 Color No Color 1 HUE: 30° /60°/90°/120°/150°/180°/210°/240°/ Color 2 270°/300°/330°/360° Color 3 Color Fade CCT: 2500K/3200K/4300K/5600K/6500K/7500K Color 4 1 - 640 cm/s Speed Left / Right...
- Page 20 0%- 100% Pixel INT 0%- 100% Bkgd INT S/M/L Pixel Size 1 Way/ 2 Way Departure HUE: 30° /60°/90°/120°/150°/180°/210°/240°/ One Pixel Chase Pixel 1 Blackground 270°/300°/330°/360° CCT: 2500K/3200K/4300K/5600K/6500K/7500K 1 - 640 cm/s Speed Left/ Loop/ Right Move Play/ Pause/ Stop Status 0%- 100% Pixel INT...
- Page 21 0%- 100% 1 - 640 cm/s Speed Rainbow Left/ Right Move Play / Pause / Stop Status Dim Range [0%-65%]-[25%- 100%] 0%- 100% Bkgd INT HUE: 30° /60°/90°/120°/150°/180°/210°/240°/ Color Blackground 270°/300°/330°/360° Pixel Fire CCT: 2500K/3200K/4300K/5600K/6500K/7500K Frequency 0.1-10Hz Horizontal / Vertical Move Status Play/ Pause/ Stop...
