Aputure Light Dome Product Manual

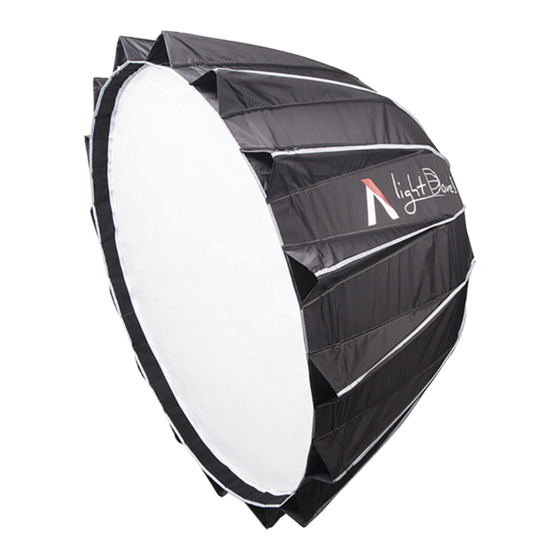

Aputure's Light Dome is a deep softbox with Bowens mount for the
Light Storm LS C120
which with Bowens mount.

Item Check List

Product Manual
English
Detailed product manual for Light Dome can be found on the movie solution page on www.aputure.com .
LED video light and other LED video light
Softbox Speed Ring Adapter
Outside Di user Inside Di user
Carrying Bag Product Manual
-1-

Installation

1) Speed Ring Adapter installation

1 2
Red dot match: Insert bracket to speed ring Use clamp handle to fasten the
adapter, symmetrically install all bracket speedring adapter
3
Stick magic strip well
2) Di user installation
1 2
-2-
折页成型（英文在正面）：
3) Light Dome installation
2
1
Specifications
Item Dimension
620 mm (24.4")(Depth)
Softbox
Φ 900 mm (35.4")
Outside Di user Φ 885 mm (34.8")
Inside Di user Φ 235 mm (9.3")
Speed Ring Adapter Standard Bowens Mount
Trademarks
Bowens is a trademark or registered trademark of Bowens in the
P.R.C and other countries.
-3-
深 圳 市爱 图 仕 影 像 器 材 有 限 公 司
为折线(不印刷)
047 柔光箱 说明书
270*140mm 折页尺寸：90*360 mm 版 本
70g 书纸，正反两面印刷
料号：500036014001
Net Weight
1.35 kg
(2.98 lb)
