Summary of Contents for Aputure AL-M9

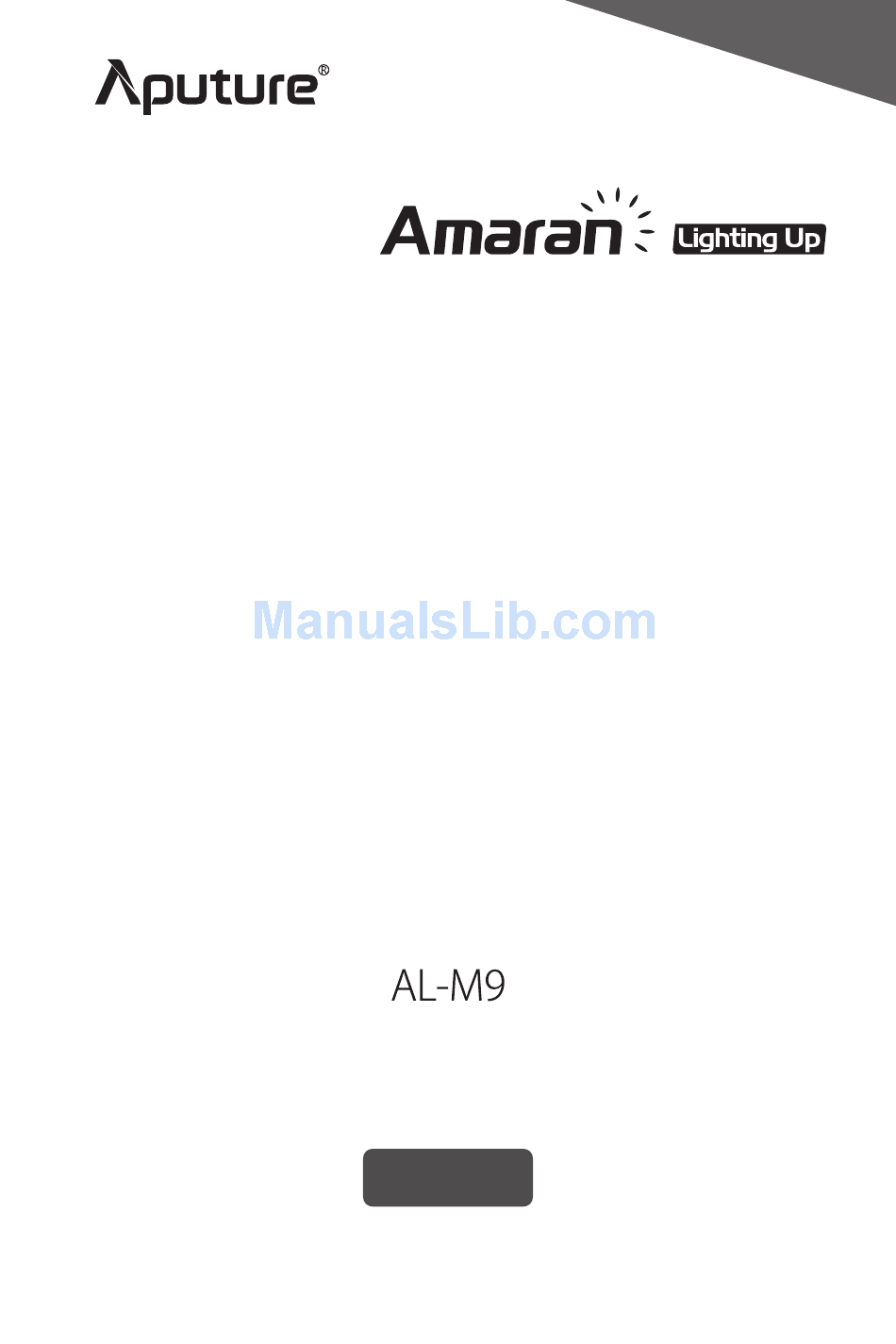

  • Page 1 Product Manual English...
  • Page 2 Instructions For security, please do not leave the product in excessive heat areas or expose in moist conditions. WARNING: Avoid storing the lamp where there are corrosive chemicals. Please have the product checked by an authorized service or agent if your product has a problem.

  • Page 3: Installation

    2. Accessories Fastener Thumbscrew Cold Shoe Di user Universal Adapter Carrying Case USB Charging Cable Product Manual Warranty Card Installation 1. Install the di user on the lamp body. 2. Place the lamp in the universal adapter, then x the screw clockwise.
  • Page 4 3. Diagram 1) Install the lamp with cold shoe. 2) Disassamble the cold shoe,then use the thumbscrew to install the lamp with 1/4 screw into camera’s 1/4 screw hole. 3) Handheld...
  • Page 5 1. Charging 5V/1A * The indicator lights red in charging ,then goes o when the lamp is fully charged. * The indicator ashes red a few times, the lamp will automatically shut down. * The indicator lights blue in working time. 2.

  • Page 6: Adjust The Brightness

    Brightness ≥900LUX ≥350LUX ≥80LUX Number of LEDs Battery Type Lithium-polymer battery(3.7V 1800mAh) Voltage DC 5V Current Battery Working Time ＞1.75h（maximum brightness） Dimension 87*56*11 mm Detailed product manual for AL-M9 can be found on the movie solution page on www.aputure.com .
