Left Woof
Right Woof
Left In
Left In
0
DB
0
DB
INVERT
INVERT
Right In
Right In
Right In
Right In
0
DB
0
0
DB
DB
INVERT
INVERT
INVERT

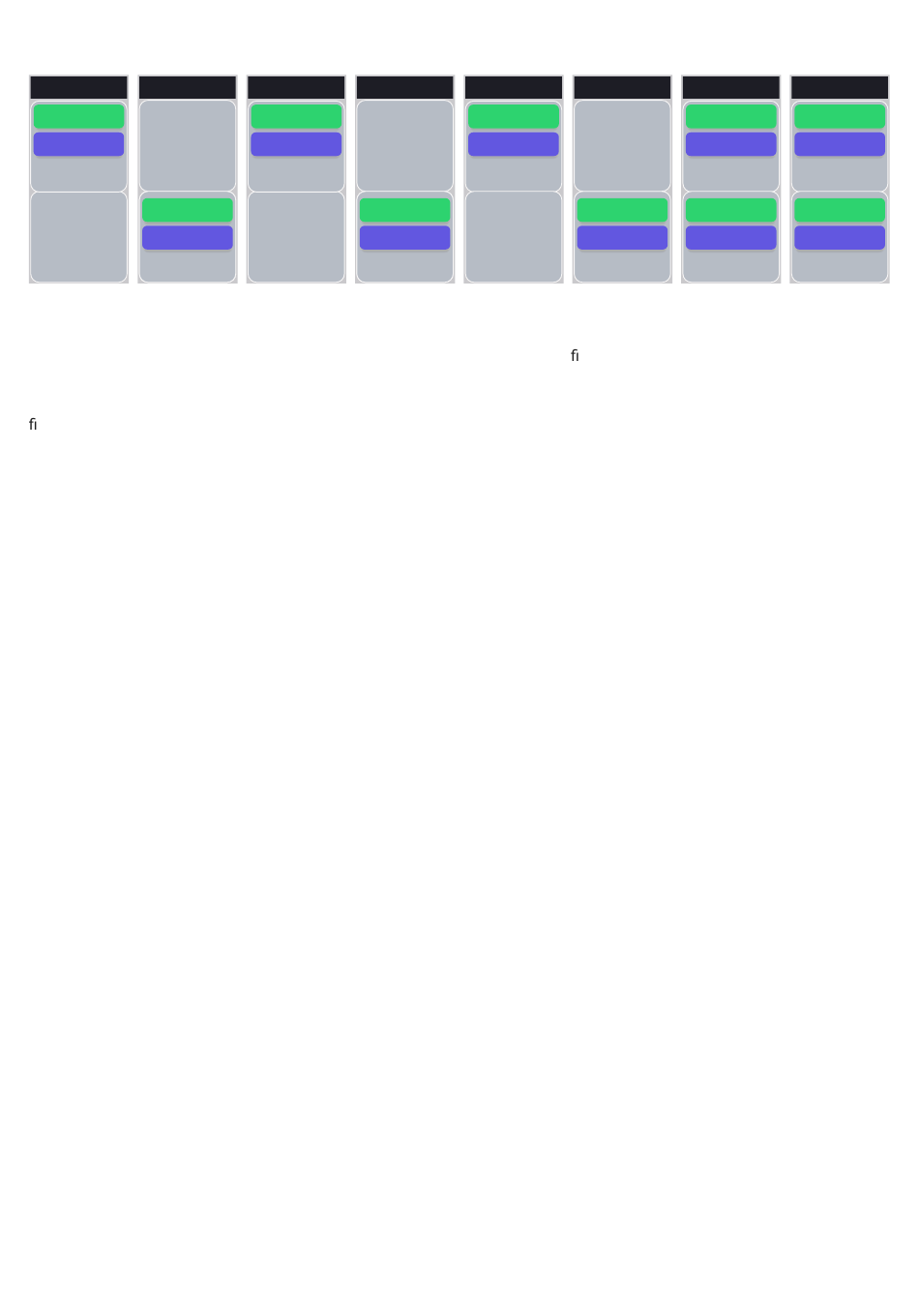

The left input is routed to outputs 1, 3, and 5 for the woofer, mid and tweeter. The right input channel is similarly routed
to outputs 2, 4 and 6. Each output channel will need appropriate crossover lters.
In addition, both channels are summed to outputs 7 and 8 for the subwoofer. Each of those will require a low pass
lter.
https://docs.minidsp.com/product-manuals/flex-eight/print_page.html
Print or save - miniDSP Flex Eight
Left Mid
Right Mid
Left In
Left In
0
DB
0
DB
INVERT
INVERT
Right In
Right In
Right In
0
DB
0
0
DB
DB
INVERT
INVERT
INVERT
Left Tweet
Right Tweet
Left In
Left In
0
DB
0
DB
INVERT
INVERT
Right In
Right In
0
DB
0
DB
INVERT
INVERT
Sub 1
Sub 2
Left In
Left In
0
DB
0
DB
INVERT
INVERT
Right In
Right In
0
DB
0
DB
INVERT
INVERT
