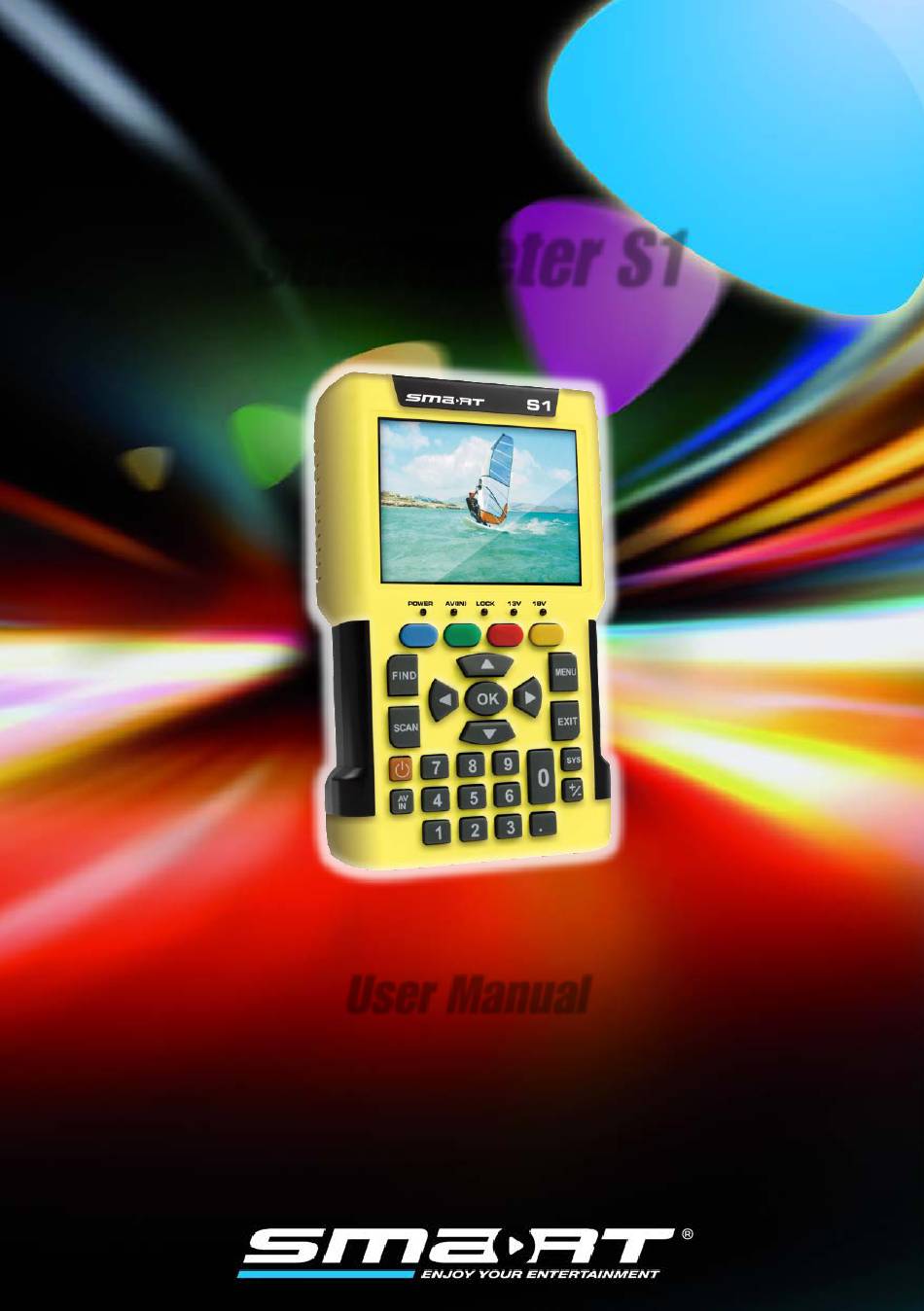

- Page 1 DVB-S Meter smartmeter S1 User Manual Version: 25.10.2013 - English...
- Page 2 Preface Preface Dear Customer, Thank you for purchasing the digital DVB-S meter smartmeter S1. This user manual contains all the information required • to connect, • to operate, • to clean, and • to dispose of the device. Please read the user manual carefully before you start using the meter.
-
Page 3: Table Of Contents
Menu TP Search ......................15 Renaming a Satellite ..................15 Adding a Satellite .................... 15 Deleting a Satellite ..................16 Searching for a Transponder ................16 Deleting a Transponder .................. 16 Adding a Transponder ..................17 Searching Channels..................17 NIT ........................18 smartmeter S1... - Page 4 Saving the Channel List on a USB disk ............29 14.3.2 Editing the Channel List with the Editor Program .......... 30 14.3.3 Loading the Channel List from USB .............. 30 14.4 Media Player ....................31 14.4.1 Playback of a Music File ................31 smartmeter S1...
- Page 5 LNB/Tuner input ..................... 38 21.3 System Resources ..................38 21.4 Video Decoder ....................38 21.5 Connections ....................38 21.6 Power supply ....................39 21.7 Dimensions and Weight .................. 39 21.8 Temperatur ..................... 39 Declaration of Conformity ................... 39 smartmeter S1...
-
Page 6: User Information
This user manual should also be enclosed when handing over the device to a third party. • In case of loss, the current version of the user manual can be downloaded at the support center on our website www.smart-electronic.de. • The software is still being further developed even after your purchase of the device. -
Page 7: Product Description

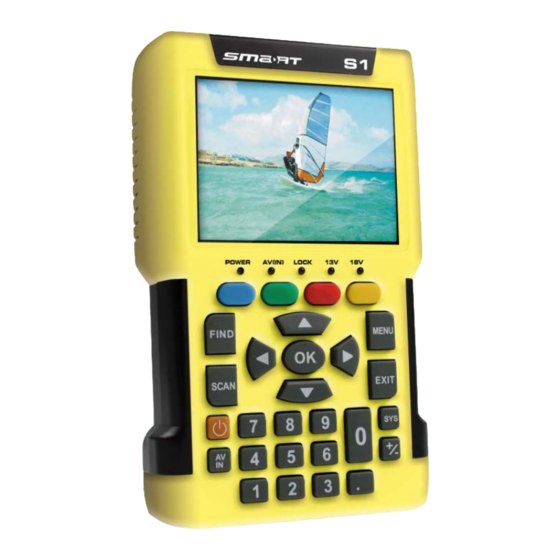

The smartmeter S1 is a handy digital antenna measuring device for a quick and easy align- ment of satellite antennas. If a satellite is found, the smartmeter S1 shows it on the display and emits an audible signal. Signal strength and quality are displayed as numerical values and bar graphs. -
Page 8: Meter
FUNCTION keys The functions are displayed at the bottom of the screen. FIND Call of the channel search function. Single Satellite Search SCAN Open the menu. POWER Switch device on/off. AV IN Switch to the analog video input. smartmeter S1... -
Page 9: Top View
Switch for battery (for separating the smart- meter S1 electronics from the rechargeable battery) USB port for external data storage devices The above figures show the smartmeter S1 without the black part covering at the top of the device. 2.2.4 Rear View At the rear is the battery compartment. -
Page 10: Safety Notes
Appropriate Usage The measuring device smartmeter S1 was developed to measure signals of digital satellite antennas and satellite systems. It is exclusively for this purpose and should only be used for this purpose. Use the equipment only for the purpose, which is described in this manual. -
Page 11: Lithium Ion Battery
Initial Setup Lithium Ion Battery The smartmeter S1 is provided with a lithium ion battery. Please observe the following safety notes for the battery: Fire and explosion hazard Any kind of heat (from inside or outside) can trigger uncontrollable chain reactions inside the battery. -
Page 12: Charge Control
Connect the low-voltage plug of the power plug to the low-voltage socket on the bottom of the meter. The battery starts charging as soon as you connect the smartmeter S1 to the power plug. When you charge the battery for the first time, charge it for at least 5 ... -
Page 13: Entering And Exiting The Menu
Aligning the Satellite Dish For long operational pauses, please also separate the smartmeter S1 electronics from the battery by setting the battery switch on the un- derside of the device to the position. Entering and Exiting the Menu Press the MENU key to enter the main menu. The display shows the OSD main menu. - Page 14 12. Fixate the Dish in the position with the best quality. VBER value with good reception is 10E-8 (so almost 0). The VBER higher is, the worse is the signal (e. g. antenna wrong alig- ned). DiSEqC1.1 supports 16 satellite positions smartmeter S1...
-
Page 15: Menu Tp Search
Press the green function key (OK) to accept the changes made so far and to close the window Rename. The transponder list of the new satellite is empty. Create a new trans- ponder as described below (Adding a new Transponder). smartmeter S1... -
Page 16: Deleting A Satellite
5. Use the keys ◄/► to mark the button and confirm with OK to delete the transpon- der from the list. TP Search Mark the button and confirm with OK to go back to the menu , without de- leting the transponder. smartmeter S1... -
Page 17: Adding A Transponder
Press OK to start the channel search. Press the red function key to stop the search at anytime. Found programs are attached to the rear of the channel list. FTA = Free To Air = unencrypted channels smartmeter S1... -
Page 18: Nit
Menu TP Search The smartmeter S1 is equipped with NIT. NIT means Network Information Table and is transmitted in the data stream of the satellite. It contains data regarding to transponders and channels, such as frequency, sound carrier or symbol rates. - Page 19 Satellity Identify uses the transponder lists stored in the smartmeter Menu Packet Control In this menu you can • display signal strength and signal quality of five consecutive transponders as well as • perform a channel search. smartmeter S1...
- Page 20 ) or for all channels ( Scan Channel Select at if you want to perform scan only for TV channels, only for radio channels or for TV + radio channels.. FTA = Free To Air = unencrypted channels smartmeter S1...
