433-CMU-40 Instructions
Wireless Central Monitoring Unit
CordLess Bed and
Chair Sensor Pads
Wireless Motion Sensor
Wireless Nurse
Call Button
S M A R T C A R E G I V E R CO R P O R AT I O N
1229 North McDowell Blvd., Petaluma, CA 94954 | Tel: 800-650-3637
csr @ smartcaregiver.com | www.smartcaregiver.com
Caregiver Pocket Pager
CordLess Floor Mats
Wireless Window/Door
Exit Alarm
1
433-CMU-40 R3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SMART 433-CMU-40
Summary of Contents for SMART 433-CMU-40
- Page 1 433-CMU-40 Instructions Wireless Central Monitoring Unit Caregiver Pocket Pager CordLess Bed and CordLess Floor Mats Chair Sensor Pads Wireless Nurse Wireless Window/Door Wireless Motion Sensor Call Button Exit Alarm S M A R T C A R E G I V E R CO R P O R AT I O N 1229 North McDowell Blvd., Petaluma, CA 94954 | Tel: 800-650-3637...
-
Page 2: Table Of Contents
Table of Contents Features Page 4-5 Pre-Programmed Instructions Page 5 • *Pre-Programmed means - components are already programmed to CMU. • You received your CMU with components already programmed. Setup - Programming/Adding Components Page 6 • You received your CMU with NO programming. •... - Page 3 Mission & Value Statement We are here to help! For safety reasons, program only one component to each number on the Central Monitor. This ensures that the caregiver knows which resident and location to respond to (i.e. if a resident is using a bed pad in their room and a chair pad on their wheelchair.) Please use the chart included in the back of this instruction manual as a legend for the resident component and corresponding number on the Central Monitor.
-
Page 4: Features

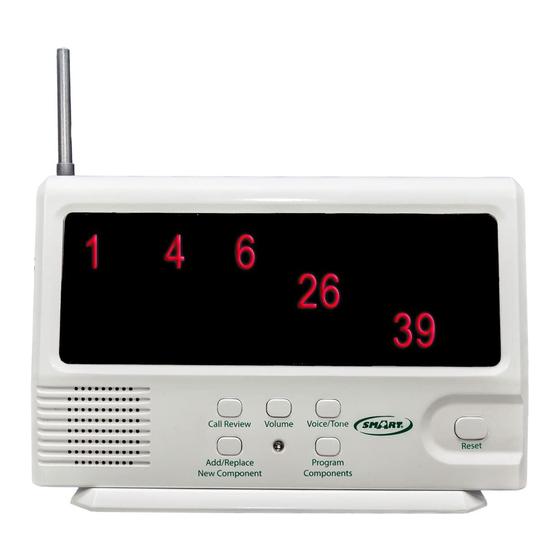

Features 1. Call Review Button 2. Volume Button 3. Replace Components Button 4. Programming Light 5. Program/Add Components Button 6. Voice/Tone Button 7. Reset Button 8. Call/Alarm Switch 9. Silencer Port 10. Lock/Unlock Switch 11. AC Adapter Input 12. Antenna 13. -
