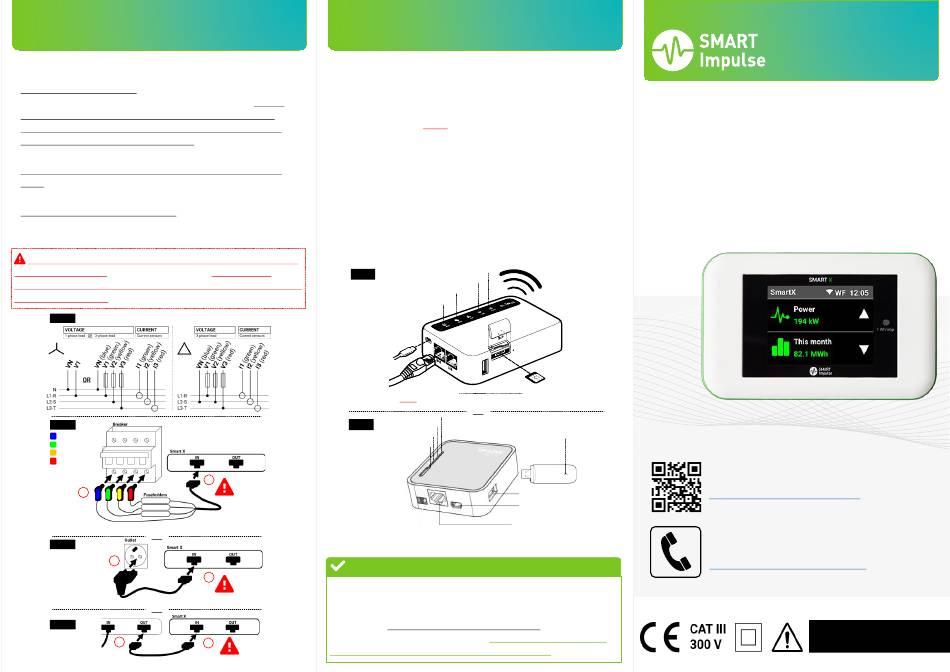

SMART X Quick Start Manual

POWER

Depending on your installation (network wiring fig.E):
> For optimum accuracy, first connect the 3-phase lead to
the Smart X then insert the magnetic connectors on the
screws downstream the closest low voltage modular
circuit breaker, while respecting the positioning of the
neutral and the order of the phases.
(fig. F, max voltage 435 V , neutral first).
RMS
> OR, for a measurement without opening the electrical
panel, first connect the single-phase lead to the Smart X
then plug it into an outlet of the measured network (fig. G).
> If a Smart X is already installed, you can connect to it via
the 'bridge' lead (fig. H, 3 Smart X max).

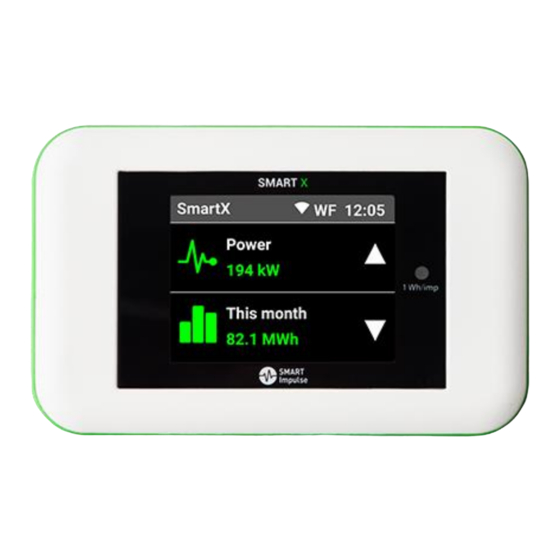

The screen of the Smart X lights up.
Connect first the lead (three- or single-phase) to the 'IN'
port of the Smart X, then to the network. 'OUT' port is
strictly dedicated to sharing power supply between Smart X
via the 'bridge' lead
(fig. H, forbidden in single-phase or Δ 'delta')
Fig. E
Fig. F
N (blue)
L1-R (green)
L2-S (yellow)
L3-T (red)
2
STEP
Neutral 1st.
Respect the order of the phases.
OR
Fig. G
2
STEP
Cable hanging
down (neutral to the left)
OR
Fig. H
2
STEP
3 Smart X max.
Forbidden in single-phase or Δ Delta configurations.
3

COMMUNICATION

Plug in the Smart Router close to the Smart X installed
(fig. I or J according to the equipment provided. A multi-
socket adaptor may be necessary).
For a wired communication, connect the Smart Router to
the local network
After 2 minutes, the Smart X in the same electrical room
pair automatically to the Smart Router (Wi-Fi).
- LAN: Before the installation, please provide an Ethernet cable and
check with your IT department for outgoing connection authorisation
to our server :
- ICMP protocol to 8.8.8.8 (ping), DNS
- TCP protocol to 178.33.106.9, port 80 (HTTP)
- 3G/4G: If 3G/4G coverage is insufficient (< -100 dBm), it is possible to
move the 3G/4G receiver. Contact Smart Impulse.
Fig. I
Power port
Fig. J
1
STEP
*Solid: connected, Blinking: connected + data transfer in progress

INSTALLATION VALIDATION

1
Once the installation is completed, please fill in the
STEP
installation certificate in order to validate the compliance
and correct operation of the installation and send it within
24 hours to technique@smart-impulse.com imperatively
with the requested photographs.
1
be validated upon receipt of these documents.
STEP
(WAN port).
3G/4G OK*
WiFi OK*
WAN OK*
Power OK
Wired connexion OR 3G/4G connexion
SIM card
WAN port
OR
Power OK
Internet OK*
WiFi OK*
3G OK
WAN OK* (solid blue)
3G drive
Power port
Wired connexion
The installation will only
Thank you!
4
SMART X
Quick Start Guide
Full user manual and video tutorial
http://doc.smart-impulse.com
Help Desk
+44 (0) 330 684 6080
technique@smart-impulse.com
®
ENGLISH
V4.2
