Miscellaneous
673
On the Ethernet Settings page you can set the IP Address (10) and Netmask (11) that the
device should have in the network. With the Back button (12) you can go back to the Updater
Settings page.
Please note: All settings made in this project are temporary and only valid for the first project
transfer. All settings will be overwritten by settings in the transferred project.
You should make the according settings in the project you want to transfer to the device:
- The variable @EnableUpdater variable controls which update is allowed
- The CAN bus bitrate will be taken from the bitrate set in the transferred project
- The CAN port used for the transfer can be set with the variable @CANx_Bitrate
- The IP address can be set with the variable @Ethernet0_IPAddress
- The Netmask can be set with the variable @Ethernet0_Netmask
Back returns to the Updater Settings page.

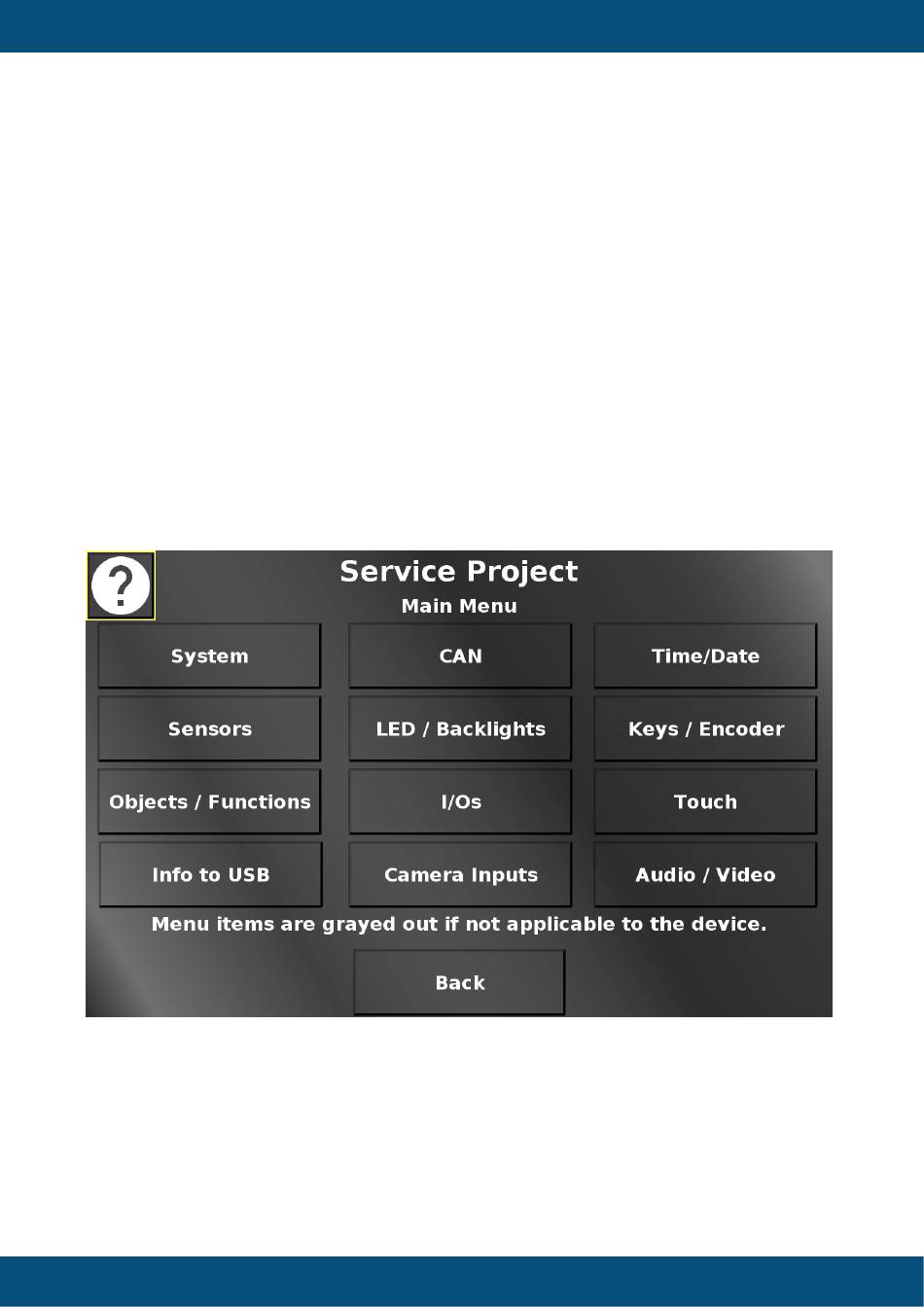

Service Project
By pressing the Service Project button you can navigate to the Service Project main page.
In this screen the different main menu items can be chosen. Back returns to the main screen.
On every page, a help button is available, which gives a short explanation what can be done
on the page.
Menu items, behind which there are only features that are not available for the current device
will be grayed out. It is still possible to go into the according pages or use the according
buttons, but nothing will happen or work.
