WT-100_E.fm 1 ページ 2011年2月24日 木曜日 午後1時36分
INSTRUCTION MANUAL
WIRELESS TERMINAL
WT-100
• Thank you for purchasing the TOPCON WT-100 Wireless terminal.
• Please read this instruction manual carefully before using this product.
• The specifications and general appearance of the instrument, and the
content of this manual are subject to change without notice.
• Some of the diagrams shown in this manual may be simplified for easier
understanding.
PRECAUTIONS FOR SAFE OPERATION
For the safe use of the product and prevention of injury to operators and other
persons as well as prevention of property damage, items which should be
observed are indicated by an exclamation point within a triangle used with
WARNING and CAUTION statements in this instruction manual.
The definitions of the indications are listed below. Be sure you understand
them before reading the manual's main text.
Definition of Indication
Ignoring this indication and making an operation error could
WARNING
possibly result in death or serious injury to the operator.
Ignoring this indication and making an operation error could
CAUTION
possibly result in minor injury or property damage.
Definition of Indication
This symbol indicates items for which caution (hazard warnings inclusive) is
urged. Specific details are printed in or near the symbol.
This symbol indicates items which are prohibited. Specific details are printed in
or near the symbol.
This symbol indicates items which must always be performed. Specific details
are printed in or near the symbol.
PRECAUTIONS
General
WARNING
Do not use the unit in areas exposed to high amounts of dust or ash, in areas
where there is inadequate ventilation, or near combustible materials. An explo-
sion could occur.
Do not perform disassembly or rebuilding. Fire, electric shock, or burns could
result.
Power Supply
WARNING
Do not short circuit. Heat or ignition could result.
Do not place articles such as clothing on the battery charger while charging bat-
teries. Sparks could be induced, leading to fire.
Do not use voltage other than the specified power supply voltage. Fire or electri-
cal shock could result.
Do not use batteries other than those designated. An explosion could occur, or
abnormal heat generated, leading to fire.
Do not use damaged power cords, plugs or loose outlets. Fire or electric shock
could result.
Use only the specified battery charger to recharge batteries. Other chargers may
be of different voltage rating or polarity, causing sparking which could lead to fire
or burns.
Do not use the battery or charger for any other equipment or purpose. Fire or
burns caused by ignition could result.
Do not heat or throw batteries into fire. An explosion could occur, resulting in
injury.
To prevent shorting of the battery in storage, apply insulating tape or equivalent to
the terminals. Otherwise shorting could occur, resulting in fire or burns.
Do not use batteries or the battery charger if wet. Resultant shorting could lead to
fire or burns.
Do not connect or disconnect power supply plugs with wet hands. Electric shock
could result.
CAUTION
Do not touch liquid leaking from batteries. Harmful chemicals could cause burns
or blisters.
Wireless technology
WARNING
Do not use within the vicinity of hospitals. Malfunction of medical equipment could
result.
Use the instrument at a distance of at least 22 cm from anyone with a cardiac
pacemaker. Otherwise, the pacemaker may be adversely affected by the electro-
magnetic waves produced and cease to operate as normal.
Do not use onboard aircraft. The aircraft instrumentation may malfunction as a
result.
Do not use within the vicinity of automatic doors, fire alarms and other devices
with automatic controls as the electromagnetic waves produced may adversely
affect operation resulting in an accident.
Precautions
• Confirm battery remaining level before operating.
• Do not leave the instrument under strong sunlight for a long time. It may
cause the instrument to malfunction.
• When transporting the instrument, provide some protection to minimize the
risk of shocks. Heavy shocks may cause the measurement to be faulty.
• The instrument can not be submerged underwater. WT-100 is designed
based on the International Standard IP54, therefore it is protected from the
normal rainfall.
• Remove the battery from the instrument when you would not use it for long
period. If this instrument with the battery set in it is stored, the electrolyte may
leak to cause a trouble.
• Always clean the instrument after use. Wipe dry any moisture if the instrument
becomes wet from rain. To clean the instrument, dust off well and then wipe
clean with a soft cloth.
• Never use thinner or benzine to remove dust on the surface of plastic parts.
Use a clean cloth moistened with neutral detergent.
• This product is for professional use only!
The user is required to be a qualified surveyor or have a good knowledge of
surveying, in order to understand the user and safety instructions, before
operating, inspecting or adjusting.
• Wear the required protectors (safety shoes, helmet, etc.) when operating.
EXCEPTIONS FROM RESPONSIBILITY
• The user of this product is expected to follow all operating instructions and
make periodic checks (hardware only) of the product's performance.
• The manufacturer, or its representatives, assumes no responsibility for results
of faulty or intentional usage or misuse including any direct, indirect,
consequential damage, or loss of profits.
• The manufacturer, or its representatives, assumes no responsibility for
consequential damage, or loss of profits due to any natural disaster,
(earthquake, storms, floods etc.), fire, accident, or an act of a third party and/
or usage under unusual conditions.
• The manufacturer, or its representatives, assumes no responsibility for any
damage (change of data, loss of data, loss of profits, an interruption of
business etc.) caused by use of the product or an unusable product.
• The manufacturer, or its representatives, assumes no responsibility for any
damage, and loss of profits caused by usage different to that explained in the
operator's manual.
• The manufacturer, or its representatives, assumes no responsibility for
damage caused by incorrect operation, or action resulting from connecting to
other products.
STANDARD PACKAGE COMPONENTS
• Wireless terminal WT-100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 unit
• Battery BT-66Q . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 pc.
• Instruction manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 sheet
OPTIONAL ACCESSORIES
• Battery Charger BC-30D, AC/DC Converter AD-14, AC cable
• Tilt holder model-4
• Cable for connection to an external battery

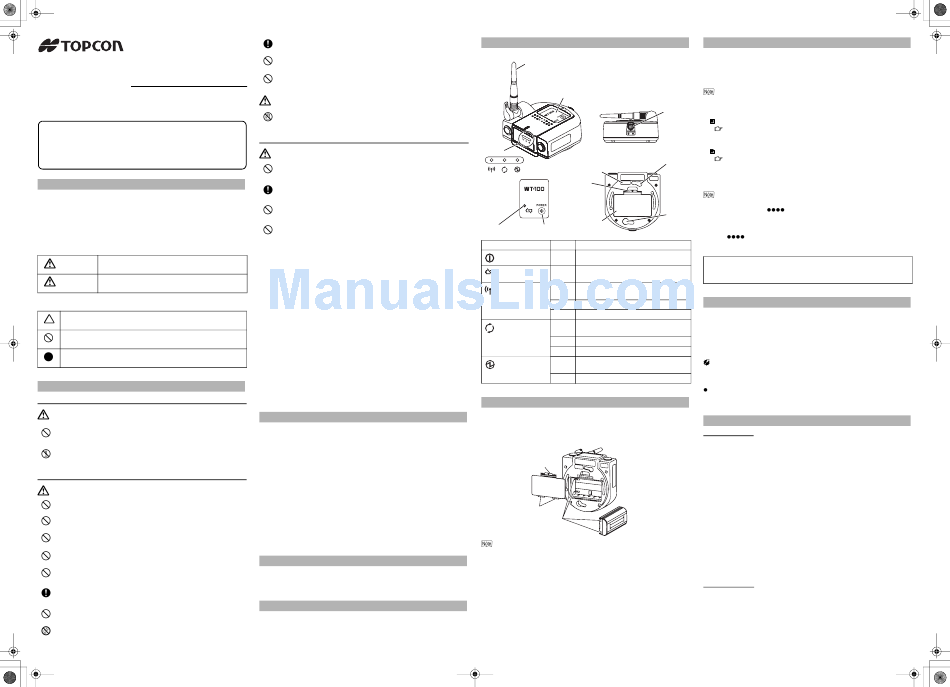

NOMENCLATURE AND FUNCTIONS
Antenna for wireless LAN
Connector for
Operation panel
external battery
(car battery etc.)
Display
Product label:
Serial number
Battery
cover lug
Battery cover
Battery LOW LED
Power switch
Name
LED
Function or status
Power switch
Turns ON/OFF the power.
Battery Low LED
ON
The battery power is low. Replace with a
solid
fully-charged battery.
Wireless LED
ON
The wireless LAN function is valid.
solid
Flash
Data are being sent/received.
OFF
The wireless LAN is not valid.
System LED
ON
This instrument (WT-100) is operating
solid
normally.
Flash
Flashes when processing.
OFF
This instrument is not operating normally.
Power LED
ON
The power is ON.
solid
OFF
The power is OFF.
INSTALLING AND REPLACING THE BATTERY
1. Push down the battery cover lug to remove the battery cover.
2. As illustrated, load the battery BT-66Q with all contacts aligned.
3. Fit the lugs of the battery cover to the holes first. Then, push the battery
cover lug until the cover is locked.
Battery cover lug
Lug
Contact
BT-66Q
:
• Attach a ferrite clamp filter (ZCAT2035-0930 or equivalent) to the power cable
when using an external battery.
Always wind the cable through the clamp filter in a single loop.
Do not remove the ferrite clamp filter from the cable. Removal of the ferrite
clamp filter may cause harmful interference and will void the user's authority
to operate this equipment.
BASIC OPERATION
1. Turn on the power.
Press the power switch.
Power LED lights. Make sure Wireless LED, System LED and Power LED
light up on the display.
:
• When an LED does not light or flash, check if the battery is securely inserted.
(DC12 V)
2. Wireless LAN connection
Connecting to Imaging Station IS series
Refer to the description about setup of wireless LAN in the IS series
instruction manual.
Mounting
Connecting to Data Collector FC-250
hole
Refer to the description about use of wireless LAN in the FC-250
(Small)
instruction manual.
:
The factory default settings of WT-100 are shown below.
Mounting
• SSID1: WT-100-W6
hole
• Encryption key: Not used.
• Encryption scheme: Not used.
• Wireless channel: Auto
* "W6
" is the same as the serial number on the bottom of the instru-
ment.
Sometimes an error message indicating a communication error with DHCP
server is displayed on the product connected to WT-100. In this case, net-
work connection with WT-100 is normal.
INITIALIZATION
In the following cases, it is necessary to initialize WT-100.
• Can not connect even after checking how to connect or the settings of the
product (IS series, FC-250, etc.) connected to WT-100.
• When you change IP address of this instrument and subsequently forget the
IP address.
• When you want to change the settings back.
:
• As all settings will be deleted upon initialization, please write down any
necessary information beforehand.
When you want to carry out initialization, contact the Topcon head office or
your local Topcon dealer.
SPECIFICATIONS
Wireless function
Communication range:
Approx. 300m (Applicable when IS2 is used. This may change depending on
obstacles between the communicating instruments or ambient conditions.)
Support format:
IEEE802.11g, IEEE802.11b
Channel:
11 (1 - 11ch)
Band:
2.4GHz (2412 - 2462MHz)
Network speed:
IEEE802.11g: 54Mbps (Max.)
IEEE802.11b: 11Mbps (Max.)
Transfer mode:
IEEE802.11g: Orthogonal Frequency Division Multiplexing (OFDM)
IEEE802.11b: Direct sequence spread spectrum (DSSS)
Access mode:
Infrastructure mode
Security:
WEP (64/128bit)
WPA-PSK (TKIP/AES)
WPA2-PSK (TKIP/AES)
Hidden SSID (Enable/Disable)
Software function
LAN setup mode:
Fixed IP address (Manual setting)
DHCP server (Enable/Disable)
Routing function:
Dynamic routing, Static routing
