Cobra 6255RB Manual

23801 E. La Palma Ave., Yorba Linda, CA 92887 Ph. 714.692.8180 Fax. 714.692.5016
Items Supplied >

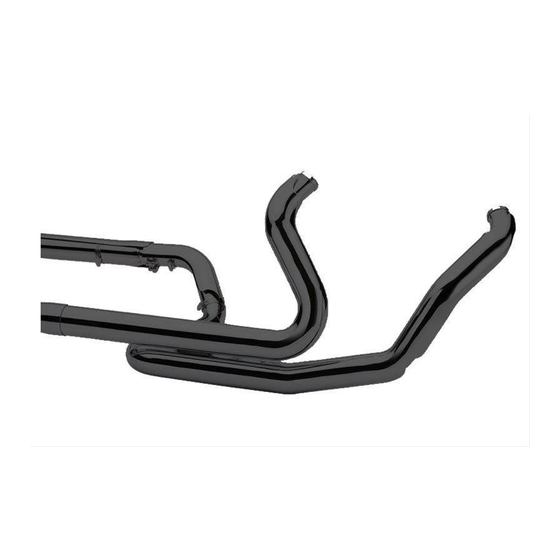

1 – FRONT HEADPIPE AND HEATSHIELD
1 – REAR HEADPIPE COLLECTOR ASSEMBLY AND HEATSHIELD
1 – LEFT REAR CROSSOVER PIPE AND HEATSHIELD
1 – BRACKET, FRONT HEADPIPE SUPPORT
1 – BRACKET, CROSSOVER WITH GROMMET PIPE SUPPORT
1 – FLOORBOARD MOUNT SPACER PLATE
1 – CLAMP, FRONT HEADPIPE SUPPORT
8 – CLAMP, HOSE HS-24
1 – CLAMP, HOSE HS-36
1 – THICK 3/8" WASHER
1 – THIN 3/8" WASHER
1 – 3/8" X 1" CARRIAGE BOLT
1 – 3/8" NYLOCK NUT
Instruction Manual >
ATTENTION! THESE HEADPIPES WILL NOT WORK IN COMBINATION WITH STOCK HARLEY
DAVIDSON MUFFLERS DUE TO RIGHT MUFFLER SLIP DESIGN.
PRIOR TO INSTALLATION, MAKE SURE YOUR STOCK HEADPIPE GASKETS ARE IN GOOD CONDITION.
IF YOU HAVE ANY DOUBTS AS TO THEIR CONDITION, REPLACE THEM.
Read all instructions carefully and completely before installing your new exhaust system!
1. Remove the saddle bags, right side cover, and right front floorboard from the frame.
2. Unplug the O
sensors on the front and rear headpipes from the motorcycle wire harness.
2
3. Remove the stock exhaust system being careful not to damage the headpipe gaskets. If the headpipe
gaskets are in good condition they do not need to be removed from the cylinders. Remove and save the
flanges, nuts, retaining rings, muffler clamps, muffler mount bolts, crossover bracket bolts, and O
from the stock exhaust. Label the O
headpipe.
4. Remove the stock exhaust mount bracket.

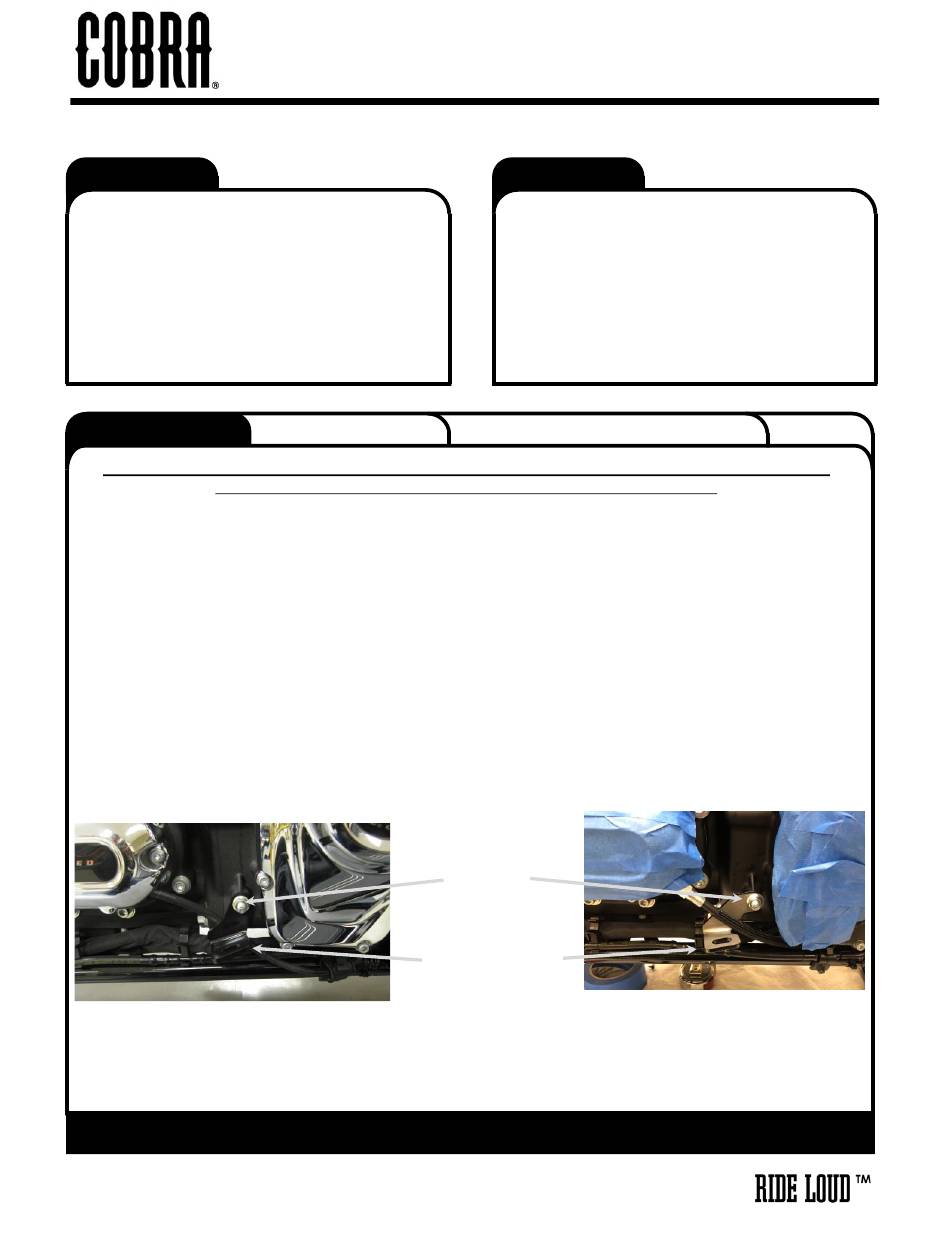

5. Install the supplied headpipe support bracket using the stock nut. On 2017-2020 models route the hydraulic
clutch line behind the bracket. On 2021 models route the clutch cable in front of the bracket. See
FIGURES 1 & 2. Lightly snug the nut but DO NOT TIGHTEN so the bracket can be adjusted. The bracket
should be positioned at a slight angle.
FIGURE 1
2017 – 2020
MODELS
DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLE. THE SALE, USE, OR
INSTALLATION OF THIS PRODUCT MAY ALSO BE ILLEGAL NATIONWIDE UNDER THE FEDERAL CLEAN AIR ACT (42 U.S.C.§ 7522(A)(3)).
DOCUMENT NO. 0017 REV. A
09/21
2 – 1/4 SHOULDER BOLTS
2 – 1/4 LARGE FLAT WASHERS
2 – 5/16 LARGE FLAT WASHERS
2 – CLAMP, 27-61 MSC
sensors front and rear to ensure they will be installed on the proper
2
COBRA HEADPIPE
SUPPORT BRACKET
Continued on Page 2
Application(s) >
HARLEY:
DRESSER
6255RB
STOCK NUT
1
www.cobrausa-vtwin.com
'17-'21
Page 1 of 6
sensors
2
FIGURE 2
2021
MODELS
