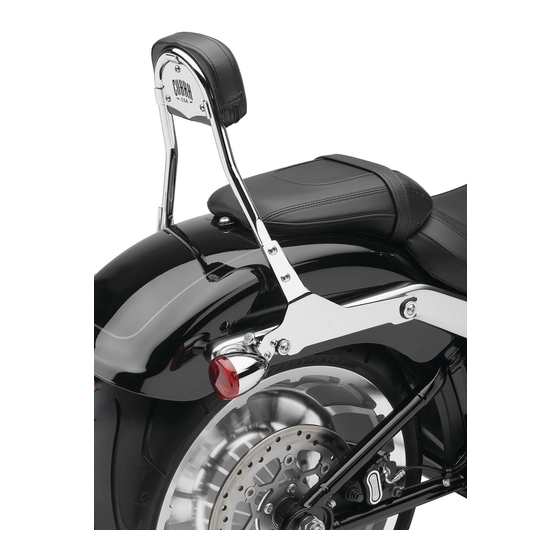

Cobra 602-2007 Instruction Manual

Items Supplied >
1 - Sissy Bar with Pad and Insert
2 - Detachable Side Plates (Left/Right) Chrome or
Black
2 - 3/8" I.D. Front, Mount Bushing Chrome or Black
2 - 3/8" I.D. Rear, Outer/Inner/Plastic Bushing Chrome
or Black
4 - 3/8"-16 x 1-3/4" Buttonhead Bolts Zinc
4 - M8 x 20mm Buttonhead Bolts
Instruction Manual >
Read all instructions carefully before installing your new Cobra
Remove the front bolt from the right side fender rail and discard. NOTE: Remove one side only so the
1.
fender does not fall resulting in possible scratches or damage to the fender or paint. See FIGURE 1.
Install the front mounting bushing into the front hole using the supplied 3/8"-16 x 1-3/4" long
2.
buttonhead bolt and tighten bolt securely. See FIGURE 2.
Remove the right rear fender rail bolt and discard. See FIGURE 1. Install the rear supplied bushing as
3.
oriented in FIGURE 2, using the supplied 3/8"-16 x 1-3/4" long buttonhead bolt and tighten bolt
securely.
REMOVE STOCK
REAR BOLT
* Cobra recommends you always wear a helmet while riding. Please never operate your motorcycle while under
®
the influence of alcohol and/or drugs. Enjoy the new look of your motorcycle and please ride safely.
DOCUMENT NO. 0017 REV. B
06/18
23801 E. La Palma Ave., Yorba Linda, Ca 92887 Ph. 714.692.8180 Fax. 714.692.5016
®

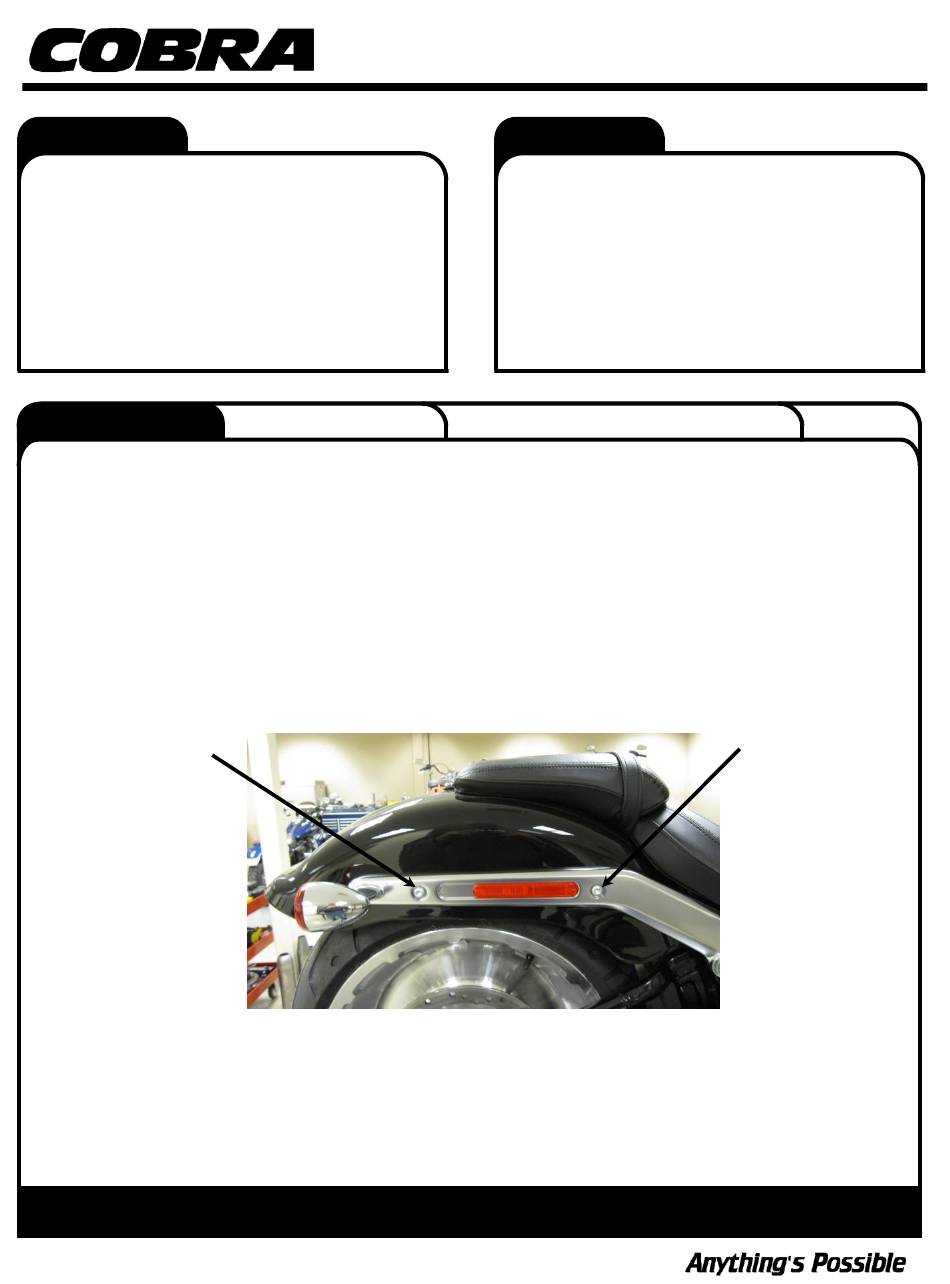

FIGURE 1
CONTINUED ON PAGE 2
Application(s) >
HARLEY:
SOFTAIL: FLFB
FLFBS
FXBR
FXBRS
602-2007 / 602-2007B
