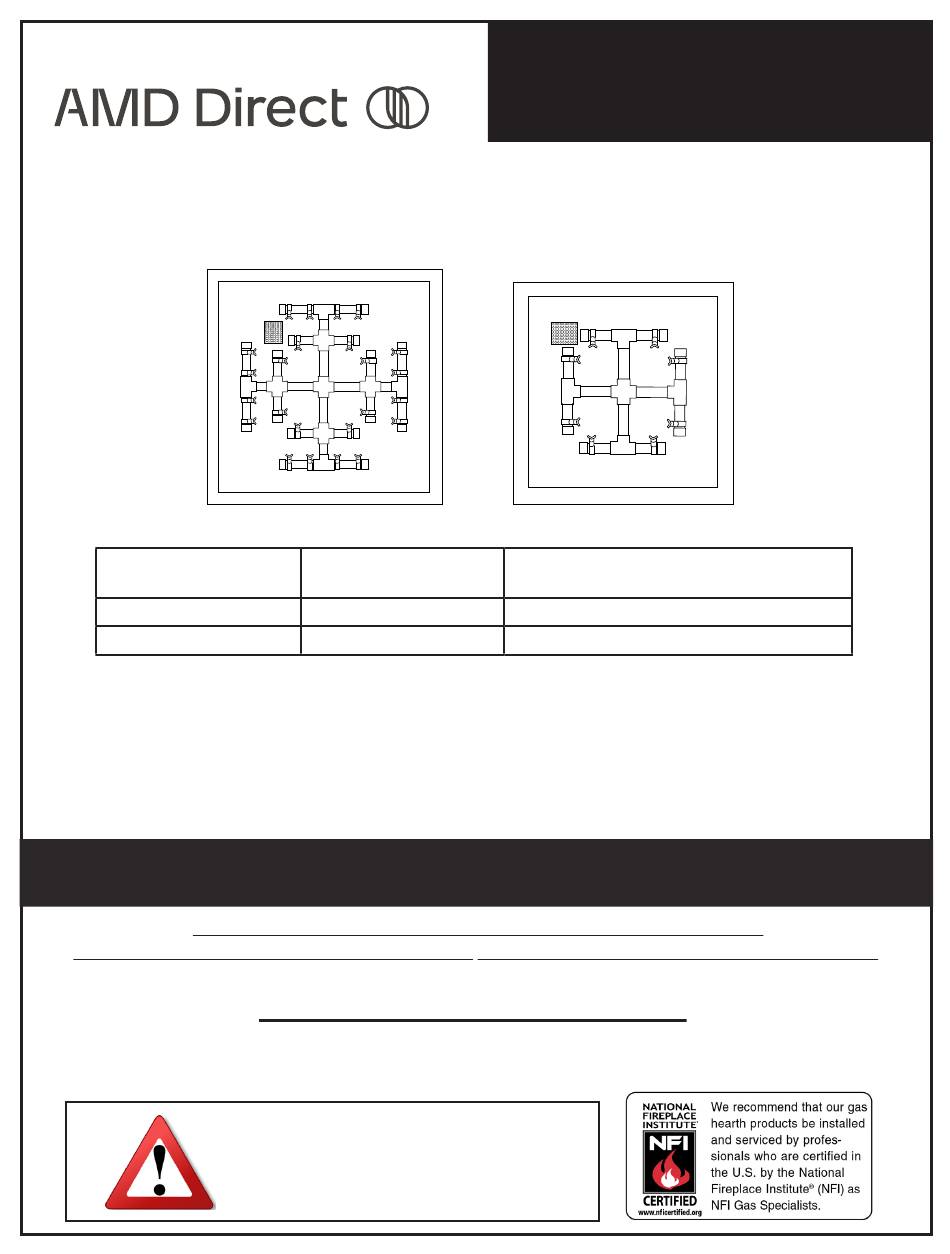

"PRO SERIES"
Models
N= Natural Gas
FPB-20SPSSF11TPSI-N
FPB-26SPSSF18TPSI-N
Square Drop In Pan Fire Pits with Thermocouple
Piloted Safety Ignition (TPSI) & Pro Brass Snowflake Burner
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
These fire pits are manufactured from the factory as Natural or Propane Gas.
These are not convertible from one gas to another. Ensure you order the proper gas type before installing.
This fire pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
Warning: For Outdoor Use Only
18" Burner
Models
P= Propane
FPB-20SPSSF11TPSI-P
FPB-26SPSSF18TPSI-P
Installation and Operating Instructions
INSTALLATION PRECAUTION:
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
11" Burner
11" Pro Snowflake Burner & 20" Sq. Drop In Pan
18" Pro Snowflake Burner & 26" Sq. Drop In Pan
PN#90410
Description
Advertisement
Table of Contents
Related Manuals for AMD DIrect Pro Series
Summary of Contents for AMD DIrect Pro Series
- Page 1 DO NOT DISCARD. THIS MANUAL HAS IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS. LEAVE WITH THE HOMEOWNER. “PRO SERIES” MODEL: SERIAL #: 18” Burner 11” Burner Models Models Description N= Natural Gas P= Propane FPB-20SPSSF11TPSI-N FPB-20SPSSF11TPSI-P 11” Pro Snowflake Burner & 20” Sq. Drop In Pan...
- Page 2 CARBON MONOXIDE HAZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed area can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. WARNING DANGER If you smell gas: Do not store or us gasoline or other...
-
Page 3: Table Of Contents
Fire Pit Maintenance/Trouble Shooting Optional Accessories Congratulations! You have just purchased a AMD Direct, Inc “Pro Series” Snowflake Burner. These are Brass Burners that come with a 18” burner. Each model burner incorporates individual injectors that eliminates the need for a main burner orifice. It uses 24 injectors in each burner. -
Page 4: Specifications
SPECIFICATIONS MODELS MAX. BURNER GROUND SIDE COMBUSTIBLE COMBUSTIBLE DIMENSIONS OPENING SIZE SIZE LEVEL WALL CEILING FLOOR N = Natural (I.D.) P = Propane FPB-20SPSSF11TPSI-N 21” x 21” Sq. 11” Sq. 8” 36” 96” 18” 20” x 20” Sq. (533 X 533mm) (279mm) (203mm) (914mm) -
Page 5: Hard Piping To Fire Pit
An injector/jet limits the amount of gas flow to the burner to ensure the flame is a safe and reasonable height to not pose a risk to people or property. Note: The Firegear Pro Series brass burners DO NOT USE a primary main burner orifice like a standard stainless steel burner. -
Page 6: High Elevation
8. These products are designed for outdoor use only. Not approved for any indoor use. 9. This fire pit is designed to have AMD Direct, Inc lava rock or glass media completely covering the burner, so that the burner is not visible. Do not cover more than 1” above the top of burner. Ensure the injectors are not blocked by any media. -
Page 7: Gas Pipe Sizing Chart
REFERENCE GAS PIPE SIZING CHART GAS PIPE SIZING NATURAL GAS : PIPE SIZING CHART Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4” • Natural Gas (NG) flow is given in 1237 2259 3640... -
Page 8: Removing Parts From Carton
REMOVING PARTS FROM CARTON Valve Assembly Flexible Gas Line Thermocouple Lead Piezo Wires Pilot Tubing Control Panel Hardware Carton Contents Fig. 4 Removing contents from carton. The fire pit comes partially assembled from the factory. The pilot tubing and thermocouple leads are 48” in total length, therefore, when mounting the Gas Valve/Piezo Burner Pan mounting plate, ensure the mounting plate is close enough... -
Page 9: Preparing Burnerpan For Installation
PREPARING BURNERPAN FOR INSTALLATION Snow ake Burner Non-Combustible Enclosure Burner Pan Pilot Tube (PIEZ025WH & PIEZO48WH) Gas Valve Piezo Wires Thermocouple Gas Supply Piezo Shut-O Gas valve and flexible gas lines are supplied; E-Stop shut-off is not supplied, but available in accessories page. Flex lines with flared fittings do not require Teflon tape or pipe compound. - Page 10 ½” from the base of the injector to the bottom INJECTORS WITH MEDIA. edge of the hood. IF USING AMD DIRECT, INC GL GLASS OR GLR REFLECTIVE GLASS, ENSURE THE MEDIA DOES NOT BLOCK THE INJECTOR HOLES.
-
Page 11: Operation
OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water. -
Page 12: Tpsi Replacement Parts
TPSI REPLACEMENT PARTS Drawings not to scale. Sq. Drop In Pan Fire Pits with Snowflake Burner and (TPSI) Ignition REV. A Page 12... - Page 13 REPLACEMENT PARTS LIST Qty. Item Part # Description 20” Square Stainless Drop In Pan PAN-SS20S 1A 26” Square Stainless Drop In Pan PAN-SS26S Brass Burner Support & Hardware Bag 10850 18” Pro Brass Snowflake Burner - Natural Gas 10902 3A 18” Pro Brass Snowflake Burner - Propane Gas 10903 11”...
-
Page 14: Fire Pit Maintenance/Trouble Shooting
FIRE PIT MAINTENANCE 1. The fire pit should be inspected and cleaned before initial use, at least annually, by a qualified field service person. 2. Any component that is found faulty must be replaced with an approved component. 3. Any tampering or modifying with the fire pit is dangerous and voids all warranties. 4. -
Page 15: Optional Accessories
OPTIONAL ACCESSORIES The following accessories are available from your local AMD Direct, Inc dealer/distributor. Each accessory comes with a separate installation manual. Read each instruction thoroughly before installing. Media Glass Windshields See catalog for a windshield to fit your Lava Stones 1” to 2” size (50lbs.) application. - Page 16 AMD DIRECT LIMITED WARRANTY - 2022 / 2023 AMD DIRECT hereby warrants to the end user that products will be free from material and workmanship de- fects that prevent safe and correct operation of the product. The warranty commences from date of sale to the end user for the following period: CONSUMER RESIDENTIAL APPLICATIONS –...
- Page 17 COMMERCIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019 BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES • TWO (2) YEAR WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS • TWO (2) YEAR WARRANTY - STAINLESS STEEL BURNERS AND PANS • TWO (2) YEAR WARRANTY - BRASS BURNERS •...
- Page 18 The manufacturer may request defective products returned with an RMA (Return Merchandise Authorization) issued by AMD DIRECT for specific products, which is considered to be the nature of the defect and or warranty claim. Product to be returned should; be packed so as not to incur damages during transportation. AMD DIRECT is not responsible for damages on returned items.
- Page 19 We do not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment, and or such representation are binding. AMD DIRECT 17322 Gothard St.
- Page 20 Having problems getting the gas appliance to operate? Don’t leave the job site! We want to help! Call 800.966.8126 for Technical Support between the hours of 8:00AM to 5:00PM PST. BEFORE YOU CALL WE WILL NEED THIS INFORMATION Model Number: ___________________________ Serial Number: ___________________________ How long is the gas line run? Nat Gas ____ LP Gas ____ What size is gas line? _____...
