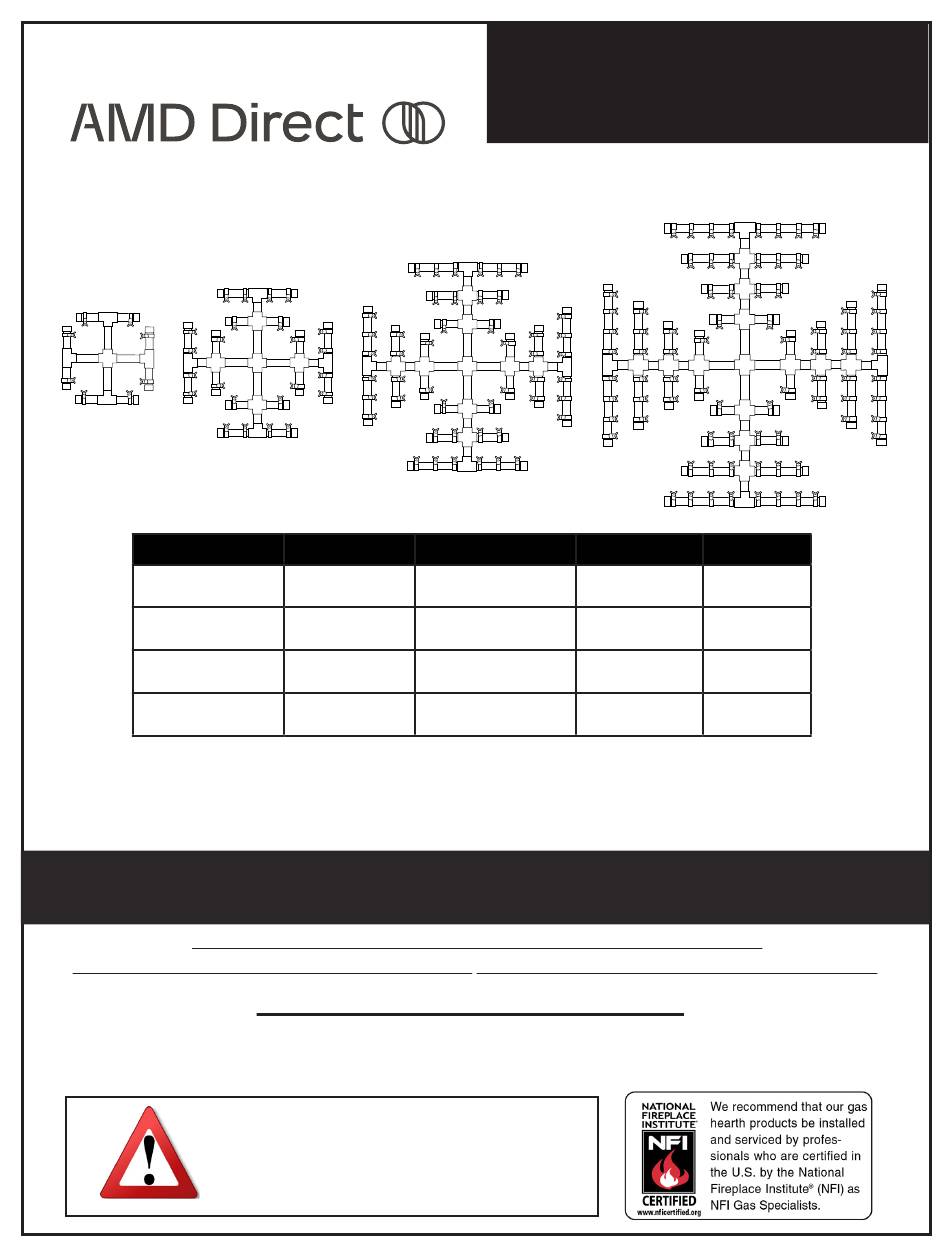

"PRO SERIES"
11" Burner
18" Burner
Burner Only
FG-PSBR-SF11-NG
FG-PSBR-SF11-LP
FG-PSBR-SF18-NG
FG-PSBR-SF18-LP
FG-PSBR-SF25-NG
FG-PSBR-SF25-LP
FG-PSBR-SF32-NG
FG-PSBR-SF32-LP
Note: NG = Natural Gas and LP = Liquid Propane Gas
Outdoor Pro Brass Snowflake Burners & Kits
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
These fire pits are manufactured from the factory as Natural or Propane Gas.
These are not convertible from one gas to another. Ensure you order the proper gas type before installing.
This system requires a minimum 18 square inches (per side) of cross ventilation.
Failure to provide proper ventilation will void the warranty.
Warning: For Outdoor Use Only
25" Burner
Description
FG-PSBR-SF11-NGK
11" Burner Only
FG-PSBR-SF11-LPK
FG-PSBR-SF18-NGK
18" Burner Only
FG-PSBR-SF18-LPK
FG-PSBR-SF25-NGK
25" Burner Only
FG-PSBR-SF25-LPK
FG-PSBR-SF32-NGK
32" Burner Only
FG-PSBR-SF32-LPK
INSTALLATION PRECAUTION:
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
Burner Kit
Description
11" Burner Kit
18" Burner Kit
25" Burner Kit
32" Burner Kit
PN#90403
32" Burner
Input Rating
50,000 Btu's
42,000 Btu's
145,000 Btu's
124,000 Btu's
260,000 Btu's
240,000 Btu's
426,000 Btu's
402,000 Btu's
Advertisement
Table of Contents
Related Manuals for AMD DIrect PRO Series
Summary of Contents for AMD DIrect PRO Series
- Page 1 DO NOT DISCARD. THIS MANUAL HAS IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS. LEAVE WITH THE HOMEOWNER. MODEL: “PRO SERIES” SERIAL #: 11” Burner 18” Burner 25” Burner 32” Burner Burner Only Description Burner Kit Description Input Rating FG-PSBR-SF11-NG FG-PSBR-SF11-NGK 50,000 Btu’s 11”...
- Page 2 CARBON MONOXIDE HAZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed area can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. DANGER WARNING FIRE OR EXPLOSION HAZARD...
-
Page 3: Table Of Contents
Pro Burner Contents Optional Accessories Congratulations! You have just purchased a AMD Direct, Inc “Pro Series” Snowflake Burner. These Brass Burners come in four sizes, 11”, 18”, 25”, 32”, models. Each model is a single brass burner and incorporates individual injectors that eliminate the need for one main burner orifice. The 11” model incorporates 8 injectors where up to the 32”... -
Page 4: Specifications
SPECIFICATIONS Models Min. Inside Min. Pan Burner Combustible Combustible Combustible Pro Burner Only or Pro Burner Kit Pan Size Side Wall Ceiling Floor Depth Size FG-PSBR-SF11-NG / FG-PSBR-SF11-LP 2 ½” - 3” 11” 19” 36” 120” 18” FG-PSBR-SF18-NG / FG-PSBR-SF18-LP 2 ½”... - Page 5 SPECIFICATIONS CONTINUED 24” Overhang (Center Line) Fig. 1 Clearance to Combustibles for Table 1 (Not to be used in an enclosed space) PRO Brass Snowflake Burner Information ½” All Pro Snowflake Burners come ready to install and have a male center nipple The burner must be installed as shown in Fig.
-
Page 6: Preparation For Non-Combustible Structure
PREPARING A NON-COMBUSTIBLE STRUCTURE The fire pit can be installed on a flat, stable surface, away from any combustible materials. Install fire pit on any level, outdoor non-combustible, flat stable surface or a combustible floor according to the clearances specified in this manual. NOTE: Do not place fire pit directly on grass, dirt, or rocks this may prevent proper ventilation. -
Page 7: Pipe Sizing Chart
REFERENCE GAS PIPE SIZING CHART GAS PIPE SIZING NATURAL GAS : PIPE SIZING CHART Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4” • Natural Gas (NG) flow is given in 1237 2259 3640... -
Page 8: Installation Into An Approved Enclosure
10. These products are designed for outdoor use only. Not approved for any indoor use or any enclosed space. 11. This fire pit is designed to have AMD Direct, Inc lava rock or glass media completely covering the burner, so that the burner is not visible. -
Page 9: Burner Information
BURNER ASSEMBLY The burner pan requires a center hole a minimum of ⅞ -inch in diameter (Fig. 3). The burner also is supplied with brass burner supports required for assembly Minimum / ” Center Hole (Fig. 4). The number of brass supports supplied is dependent on burner size. -
Page 10: Installing Key Valve
PRO BURNER ASSEMBLY CAUTION: It is imperative the “open side” of all hoods covering the injectors/jets are installed facing downward. Because the hoods can be removed or turned, the orientation is extremely important to protect the injector or jets from dust, dirt or rain. See detail in Fig. 9. WARNING: Failure to orient the hoods in the proper position on the burner tube will void the manufacturer warranty. -
Page 11: Typical Installation Drawings
TYPICAL INSTALLATION DRAWINGS Non-Combustible Pro T-Burner Fire Pit Pan Fire Pit Enclousure Key Valve Shut-O Gas Supply NOTE: Key valve and flexible gas lines are supplied. Gas shut-off is not supplied. Note: A 1¼” x 2” black iron or galvanized coupler/nipple (not supplied) can be used as a spacer between the manual valve and the valve flange to add additional... -
Page 12: Operation
OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water. -
Page 13: Replacement Parts
REPLACEMENT PARTS Drawings not to scale. Pro Snowflake Burners and Burner Kits REV. A Page 13... -
Page 14: Replacement Parts List
REPLACEMENT PARTS Item Description Qty. Part Number 11” Pro Brass Snowflake Burner - Natural Gas 10900 11” Pro Brass Snowflake Burner - Propane Gas 10901 18” Pro Brass Snowflake Burner - Natural Gas 10902 18” Pro Brass Snowflake Burner - Propane Gas 10903 25”... -
Page 15: Pro Burner Contents
BURNER CONTENTS Snowflake Burner Only Models 1/2” x 2” FG-PSBR-SF11-NG NPT Nipple FG-PSBR-SF11-LP 1/2” x 1/2” Flare FG-PSBR-SF18-NG FG-PSBR-SF18-LP FG-PSBR-SF25-NG FG-PSBR-SF25-LP FG-PSBR-SF32-NG FG-PSBR-SF32-LP Brass Burner Supports (Minimum of (4) however it is dependent on burner size) NG = Natural or LP= Propane Gas 1/2”... -
Page 16: Fire Pit Maintenance/ Trouble Shooting
ACCESSORIES The following accessories are available from your local AMD Direct, Inc dealer/distributor. Round Drop In Pans Square Drop In Pans E-STOP Model: Fits Model Model: Fits Model Gas shut-off valve with mechanical timer and emergency shut-off. PAN-SS19R 19” Rd. - Page 17 AMD DIRECT LIMITED WARRANTY - 2022 / 2023 AMD DIRECT hereby warrants to the end user that products will be free from material and workmanship de- fects that prevent safe and correct operation of the product. The warranty commences from date of sale to the end user for the following period: CONSUMER RESIDENTIAL APPLICATIONS –...
- Page 18 COMMERCIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019 BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES • TWO (2) YEAR WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS • TWO (2) YEAR WARRANTY - STAINLESS STEEL BURNERS AND PANS • TWO (2) YEAR WARRANTY - BRASS BURNERS •...
- Page 19 The manufacturer may request defective products returned with an RMA (Return Merchandise Authorization) issued by AMD DIRECT for specific products, which is considered to be the nature of the defect and or warranty claim. Product to be returned should; be packed so as not to incur damages during transportation. AMD DIRECT is not responsible for damages on returned items.
- Page 20 AMD Direct, Inc 17322 Gothard St. Huntington Beach, CA 92647 Web Site: www.amddirect.com Manual changes often occur, ensure to check the AMD Direct, Inc website for any recent updates and warranty information. Pro Snowflake Burners and Burner Kits REV. A...
- Page 21 NOTES: Pro Snowflake Burners and Burner Kits REV. A Page 21...
- Page 22 Having problems getting the gas appliance to operate? Don’t leave the job site! We want to help! Call 800.966.8126 for Technical Support between the hours of 8:00AM to 5:00PM PST. BEFORE YOU CALL WE WILL NEED THIS INFORMATION Model Number: ___________________________ Serial Number: ___________________________ How long is the gas line run? Nat Gas ____ LP Gas ____ What size is gas line? _____...
