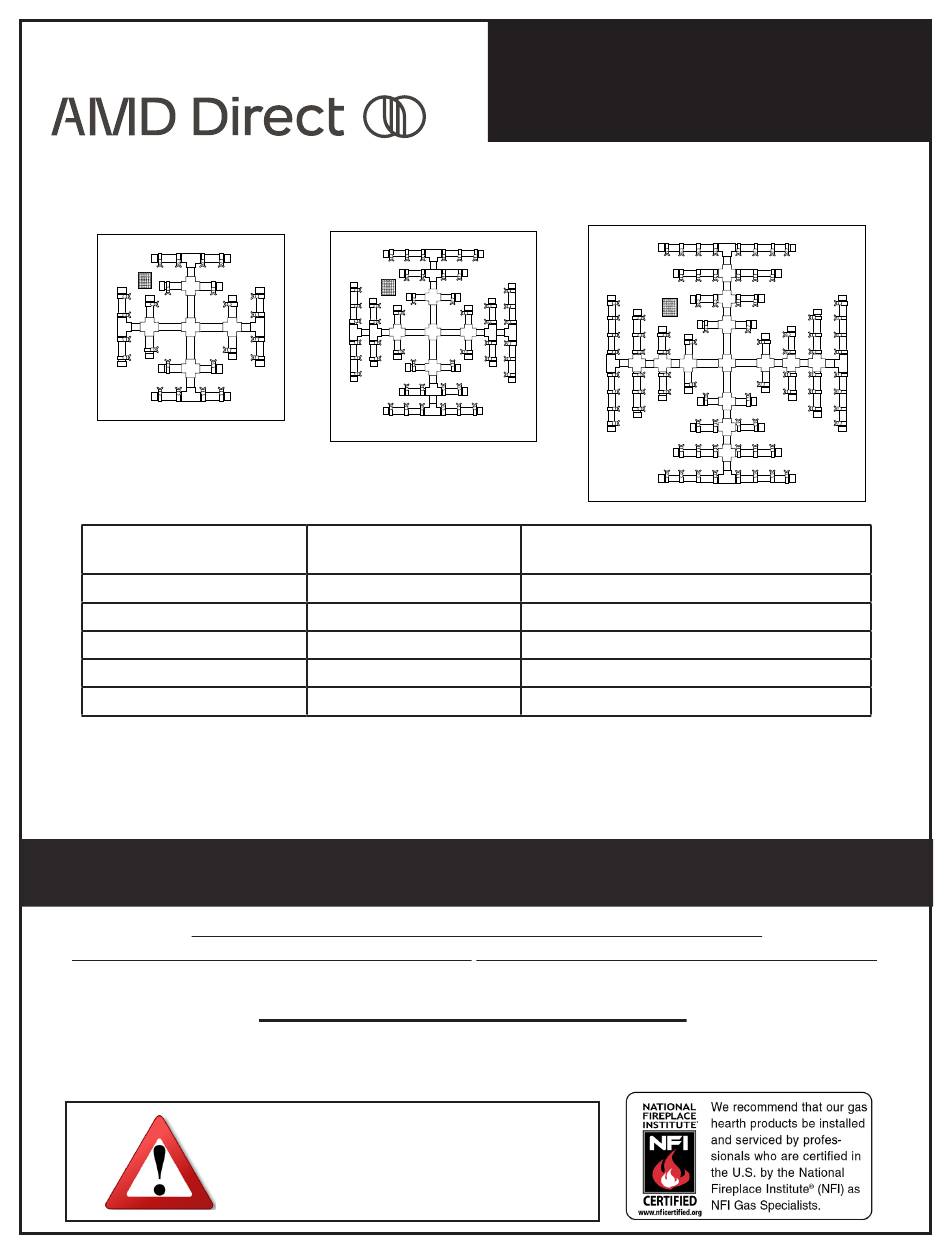

"PRO SERIES"
18" Burner
Models
N= Natural Gas
FPB-25SFPSSF18AWS-N
FPB-30SFPSSF25AWS-N
FPB-34SFPSSF25AWS-N
FPB-40SFPSSF32AWS-N
FPB-46SFPSSF32AWS-N
Square Flat Pan Fire Pits with All Weather Ignition
System (AWS) & Pro Brass Snowflake Burners
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
These fire pits are manufactured from the factory as Natural or Propane Gas.
These are not convertible from one gas to another. Ensure you order the proper gas type before installing.
This fire pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
Warning: For Outdoor Use Only
25" Burner
Models
P= Propane
FPB-25SFPSSF18AWS-P
FPB-30SFPSSF25AWS-P
FPB-34SFPSSF25AWS-P
FPB-40SFPSSF32AWS-P
FPB-46SFPSSF32AWS-P
INSTALLATION PRECAUTION:
PN#90393
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
Description
25" Square Flat Pan & 18" Pro Snowflake Burner
30" Square Flat Pan & 25" Pro Snowflake Burner
34" Square Flat Pan & 25" Pro Snowflake Burner
40" Square Flat Pan & 32" Pro Snowflake Burner
46" Square Flat Pan & 32" Pro Snowflake Burner
32" Burner
Advertisement
Table of Contents
Related Manuals for AMD DIrect PRO Series
Summary of Contents for AMD DIrect PRO Series
- Page 1 DO NOT DISCARD. THIS MANUAL HAS IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS. LEAVE WITH THE HOMEOWNER. “PRO SERIES” MODEL: SERIAL #: 18” Burner 25” Burner 32” Burner Models Models Description N= Natural Gas P= Propane FPB-25SFPSSF18AWS-N FPB-25SFPSSF18AWS-P 25” Square Flat Pan & 18” Pro Snowflake Burner...
- Page 2 CARBON MONOXIDE HAZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed area can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. WARNING DANGER If you smell gas: Do not store or us gasoline or other...
-
Page 3: Table Of Contents
Fire Pit Maintenance Optional Accessories Congratulations! You have just purchased a AMD Direct, Inc “Pro Series” Snowflake Burner system. These are Brass Burners that come in three sizes 18”, 25” and 32” models. Each model burner incorporates individual injectors that eliminates the need for a main burner orifice. The 18” model has 24 injectors, 25” has 48 injectors, and the 32”... -
Page 4: Specifications
SPECIFICATIONS MODELS FLAT PAN MAX. BURNER GROUND SIDE COMBUSTIBLE COMBUSTIBLE DIMENSIONS OPENING SIZE SIZE LEVEL WALL CEILING FLOOR N = Natural P = Propane FPB-25SFPSSF18AWS-N 24” x 24” 18” Sq. 8” 36” 120” 18” 25” x 25” Sq. (610 X 610mm) (457mm) (203mm) (914mm) -
Page 5: Preparation For Non-Combustible Structure
PREPARING A NON-COMBUSTIBLE STRUCTURE DESCRIPTION These models feature a field serviceable LEVEL FLAT SURFACE Install fire feature on any level, (30VDC) commercial grade outdoor electronic system with outdoor non-combustible, flat stable surface or a a maximum gas capacity of 290,000 Btu’s. Certified by Lab combustible floor according to the clearances specified in Test Certification for USA and Canada the system meets: this manual for a Firegear burner. -
Page 6: Gas Pipe Sizing Chart
REFERENCE GAS PIPE SIZING GAS PIPE SIZING CHART NATURAL GAS : PIPE SIZING CHART Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4” • Natural Gas (NG) flow is given in 1237 2259 3640... -
Page 7: Pre Installation Check List
FG-PS30V320 model enables a fire pit to be installed within of all four gas lines. 5-feet of a pool or spa. Injectors/Jets - Fire features using a Firegear Pro Series Bonding - Gas lines must be bonded AT EACH fire pit. brass burner incorporates individual injectors/jets on each (Refer to National Electric Code 2017 Section: 680.26(B). -
Page 8: Preparing For A Single Installation
PREPARING A NON-COMBUSTIBLE STRUCTURE FOR SINGLE INSTALL POWER SUPPLY LOCATION The GOE-30VDC power supply is to be installed inside the enclosure due to the wire length limitations. The power cord is 3-feet long the 30VDC leads to the valve are 3-feet long. See Fig. 4. Fig. -
Page 9: Installing Burner Pan Into Enclosure
INSTALLING BURNER PAN INTO ENCLOSURE Show typical wiring diagram with switch. Fig. 5 Pool Certified Applications (Fire Feature within 5-feet of pool or spa) Pool Control FG-PS-30V320 Main Burner Key Valve Low Voltage & Switch Power Supply Flat Pan Pool Timer Pilot Burner Gas Line... -
Page 10: Removing Parts From Carton
REMOVING PARTS FROM CARTON Burner Pan Valve Hardware Carton Contents Fig. 4 Removing contents from carton. CAUTION: Use dielectric grease on all wire nut connec- The fire pit comes assembled and only minimal wire tions and ¼” connectors to prevent moisture issues from connections and gas hook up is required after it is installed the outdoor environment. -
Page 11: Final Preparation
DO NOT BLOCK the hood is ½” from the base of the injector to the bottom INJECTORS WITH MEDIA. edge of the hood. IF USING AMD DIRECT, INC GL GLASS OR GLR REFLECTIVE GLASS, ENSURE THE MEDIA DOES NOT HOOD Bead around BLOCK THE INJECTOR HOLES. -
Page 12: Operation/ Lighting
OPERATION & LIGHTING CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water. -
Page 13: Aws Replacement Parts
AWS REPLACEMENT PARTS Drawings not to scale. Sq. Flat Pan Fire Pits with Brass Snowflake Burner and (AWS) Ignition REV. A Page 13... -
Page 14: Aws Replacement Parts List
AWS REPLACEMENT PARTS LIST Qty. Item Part # Description 18” Pro Brass Snowflake Burner - Natural Gas 10902 18” Pro Brass Snowflake Burner - Propane Gas 10903 25” Pro Brass Snowflake Burner - Natural Gas 10905 25” Pro Brass Snowflake Burner - Propane Gas 10906 32”... -
Page 15: Troubleshooting
TROUBLESHOOTING Sequence of Operation Fire Feature Turned ON First Pilot with Hot Surface Igniter Heats Up and Glows (Approx. 10 seconds) Secondary Pilot Opens; “Click” is Heard; Gas is Released to Burner Fire Feature is Lit Until Turned OFF The system is designed to relight itself if blown out. It will try (3) times to relight before it goes into a “hard”... - Page 16 TROUBLESHOOTING 3. Glow Plug Glows, But Does Not Ignite the Gas • Insufficient Power - If the glow plug is not getting enough power, it will not get ignite the gas. • Thin Wire - The recommended minimum wire gauge is 12AWG . If wire is less than 12-gauge there may not be enough power to get the igniter hot enough.
- Page 17 TROUBLESHOOTING 6. Fire Feature Cycles (Turns On and Off) Every Few Minutes • Gas Volume Insufficient – See symptom 5 page 21 for “Gas Volume Insufficient” for detailed explanation. • Oxygen Starvation (Pilot Burner) – See symptom 5 page 21 for “Oxygen Starvation” for detailed explanation. •...
-
Page 18: Fire Pit Maintenance
FIRE PIT MAINTENANCE 1. The fire pit should be inspected and cleaned before initial use, at least annually, by a qualified field service person. 2. Any component that is found faulty must be replaced with an approved component. 3. Any tampering or modifying with the fire pit is dangerous and voids all warranties. 4. -
Page 19: Optional Accessories
OPTIONAL ACCESSORIES The following accessories are available from your local AMD Direct, Inc dealer/distributor. Each accessory comes with a separate installation manual. Read each instruction thoroughly before installing. Paver Control Panels Media Glass Windshields PAVER-CP-AWS AWS systems See catalog for a windshield to fit your Lava Stones 1”... - Page 20 AMD DIRECT LIMITED WARRANTY - 2022 / 2023 AMD DIRECT hereby warrants to the end user that products will be free from material and workmanship de- fects that prevent safe and correct operation of the product. The warranty commences from date of sale to the end user for the following period: CONSUMER RESIDENTIAL APPLICATIONS –...
- Page 21 COMMERCIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019 BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES • TWO (2) YEAR WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS • TWO (2) YEAR WARRANTY - STAINLESS STEEL BURNERS AND PANS • TWO (2) YEAR WARRANTY - BRASS BURNERS •...
- Page 22 The manufacturer may request defective products returned with an RMA (Return Merchandise Authorization) issued by AMD DIRECT for specific products, which is considered to be the nature of the defect and or warranty claim. Product to be returned should; be packed so as not to incur damages during transportation. AMD DIRECT is not responsible for damages on returned items.
- Page 23 We do not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment, and or such representation are binding. AMD DIRECT 17322 Gothard St.
- Page 24 Having problems getting the gas appliance to operate? Don’t leave the job site! We want to help! Call 800.966.8126 for Technical Support between the hours of 8:00AM to 5:00PM PST. BEFORE YOU CALL WE WILL NEED THIS INFORMATION Model Number: ___________________________ Serial Number: ___________________________ How long is the gas line run? Nat Gas ____ LP Gas ____ What size is gas line? _____...
