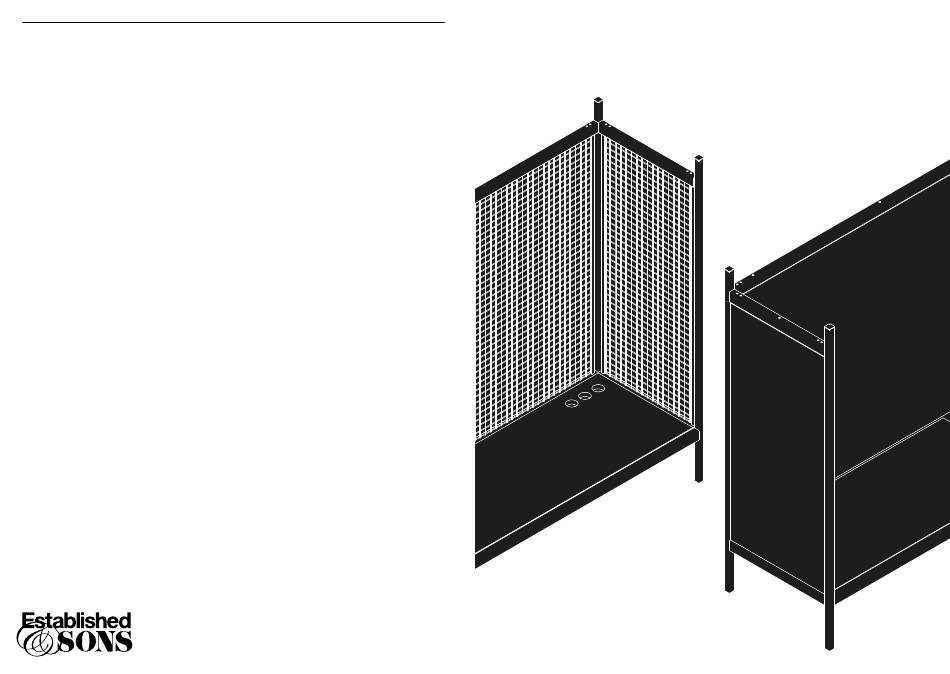

- Page 1 GRID ROOM DIVIDER ESTABLISHED & SONS United Kingdom Ronan & Erwan Bouroullec Phone +44 (0)20 7608 0990 establishedandsons.com ESTANDSONS LTD Estandsons Warehouse Intereuropa d.d. Mednarodni prehod 8, SI-5290 Šempeter pri Gorici, Slovenija...
- Page 2 GRID ROOM DIVIDER Ronan & Erwan Bouroullec A colourful room-within-a-room, the raw shell of the GRID System provides a base for modular seating, shelves, tables and screens, which can be integrated in different ways to create a playful and multifunctional environment for informal meetings, presentations or simply hanging out.
-
Page 3: General Information
General Information Installation IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY Room Divider DESIGN DESCRIPTION Panel 2021 Room Divider DIMENSIONS MATERIALS L2486 × D600 × H1584mm Powder-coated mild steel, Larch Veneered Plywood INSTRUCTIONS OF USE GRID is designed and tested for L1 “general use” areas. Suitable environments for this product include: office buildings, showrooms, public halls, function rooms, cafés, restaurants, canteens, banks and bars. - Page 4 1. Layout contents on a rug or soft surface to prevent scratching of the components. 2. Insert vertical wood locators into legs. Check the correct bolts are included before assembling. Take caution not to over tighten the M5×10mm Cylindrical Head bolts ( ! ) Room Divider Panel Only ( ! )
- Page 5 3. Insert Plastic feet into the bottom of the legs. 4. Assemble side steel tubes with larch or upholstered panel. Take caution not to over tighten the M6×60mm CSK bolts ( ! ) Room Divider Room Divider Panel/Mesh Panel Only ( ! )
- Page 6 5. Insert the back and front legs 6. Assemble back steel tubes with larch or upholstered panel. Take caution not to over tighten the M5×10mm bolts ( ! ) Take caution not to over tighten the M6×60mm bolts ( ! ) Room Divider Room Divider Panel/Mesh...
-
Page 7: Required For Installation
7. Ensure the recommended amount of people are assisting for this step. Attach the brackets to the base of the frame. Ensure they Insert the two side units into the back unit and lower front tube. are in the correct position before tightening. Take caution not to over tighten the M5×10mm bolts ( ! ) Take caution not to over tighten the M6×16mm Button Head bolts ( ! ) Room Divider... - Page 8 9. Before placing the table top board, install the power and data units 10. Place the larch base panel. Ensure all bolts at the front, back and sides are screwed in. Take caution not to over tighten the M6×16mm Button Head bolts ( ! ) Room Divider Room Divider Panel/Mesh...
