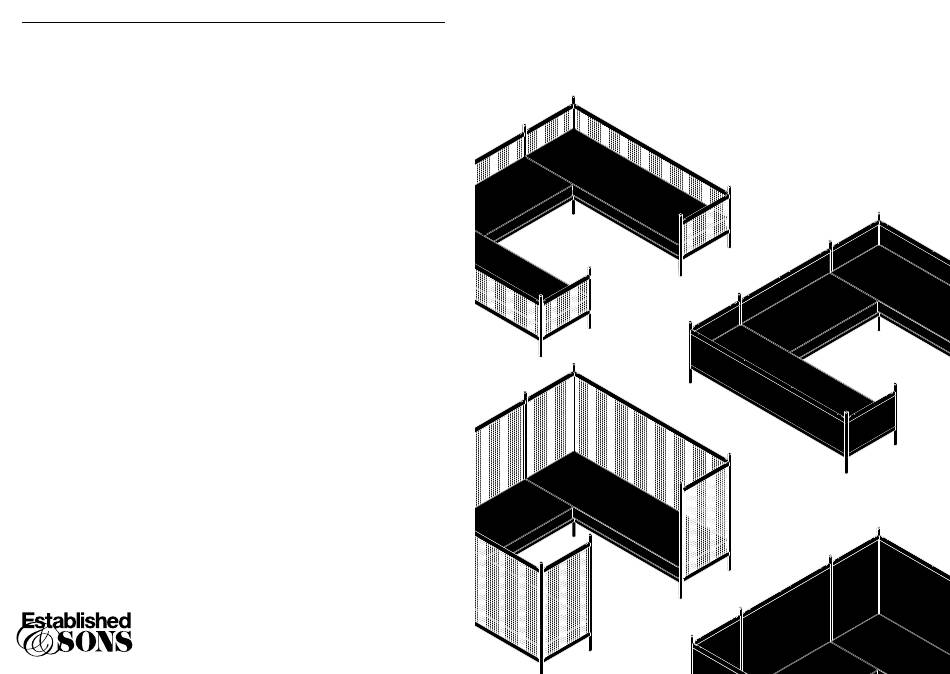

- Page 1 GRID U SHAPE ESTABLISHED & SONS United Kingdom Ronan & Erwan Bouroullec Phone +44 (0)20 7608 0990 establishedandsons.com ESTANDSONS LTD Estandsons Warehouse Intereuropa d.d. Mednarodni prehod 8, SI-5290 Šempeter pri Gorici, Slovenija...
- Page 2 GRID U SHAPE Ronan & Erwan Bouroullec A colourful room-within-a-room, the raw shell of the GRID System provides a base for modular seating, shelves, tables and screens, which can be integrated in different ways to create a playful and multifunctional environment for informal meetings, presentations or simply hanging out.
-
Page 3: General Information
General Information Installation IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY U-Shape Sofa DESIGN DESCRIPTION High Panel 2021 U-Shape Sofa High & Low DIMENSIONS MATERIALS High: L2486 × D3000 × H1584mm Powder-coated mild steel, Larch Veneered Low: L2486 × D3000 × H834mm Plywood, Polyurethane foam, removable upholstery covers, Larch Veneered Triply. - Page 4 1. Layout contents on a rug or soft surface to prevent scratching of the components. 2. Insert vertical wood locators into legs. Check the correct bolts are included before assembling. Take caution not to over tighten the Vertical Locators ( ! ) U-Shape Sofa High U-Shape Sofa Low Panel only...
- Page 5 3. Insert Plastic feet into the bottom of the legs. 4. Assemble side steel tubes with panel. Take caution not to over tighten the M6×60mm CSK bolts ( ! ) U-Shape Sofa High U-Shape Sofa Low U-Shape Sofa High U-Shape Sofa Low Panel/Mesh Panel/Mesh Panel only...
- Page 6 5. Insert the back and front legs 6. Assemble back steel tubes with panel. Take caution not to over tighten the M5×10mm CSK bolts ( ! ) Take caution not to over tighten the M6×60mm CSK bolts ( ! ) U-Shape Sofa High U-Shape Sofa Low U-Shape Sofa High...
- Page 7 7. Ensure the recommended amount of people are assisting for this step. 8. Place the cross bracing in the correct position. Insert the two side units into the back unit and lower front tube. Take caution not to over tighten the M6×16mm Button Head bolts ( ! ) Take caution not to over tighten the M5×10mm CSK bolts ( ! ) U-Shape Sofa High U-Shape Sofa High...
- Page 8 10. Ensure the recommended amount of people are assisting for this step. Assemble middle steel tubes with panel. Insert the two side units into the middle unit and lower front middle tube. Take caution not to over tighten the M6×60mm CSK bolts ( ! ) Take caution not to over tighten the M5×10mm CSK bolts ( ! ) U-Shape Sofa High U-Shape Sofa High...
-
Page 9: Required For Installation
Attach the brackets to the base of the frame. Ensure they 12. Before placing the base panels, install the power and data units are in the correct position before tightening. Take caution not to over tighten the M6×16 Button Head bolts ( ! ) U-Shape Sofa High Panel/Mesh U-Shape Sofa Low... - Page 10 14. Place the cushions on the base panels Place the larch base panel. Ensure all bolts at the front, back and sides are screwed in. Take caution not to over tighten the M6×16mm Roundhead bolts ( ! ) U-Shape Sofa High U-Shape Sofa High Panel/Mesh Panel/Mesh...
- Page 11 15. Insert the brackets into the cross bracing. 16. Place the shelf panel on the frame. Take caution not to over tighten the M5×10mm CSK bolts ( ! ) Take caution not to over tighten the M6×50mm CSK bolts ( ! ) U-Shape Sofa U-Shape Sofa High Panel/Mesh...
- Page 12 17. Attach shelf to side of sofa. Do not place items that exceed 30kg on the shelf. Take caution not to over tighten the M6×16mm CSK bolts ( ! ) U-Shape Sofa High Panel/Mesh ( ! ) U-Shape Sofa Low Panel/Mesh 30Kg REQUIRED FOR INSTALLATION...
- Page 13 Assembled Assembled U-Shape Sofa High U-Shape Sofa High Panel Mesh U-Shape Sofa Low U-Shape Sofa Low Panel Mesh...
- Page 14 About Established & Sons Established & Sons is a British brand representing all that is innovative in contemporary design. By supporting the best creators of our time, it has built a collection for people who are passionate about design, presenting imaginative products with style and personality. Designers and artists are afforded the freedom to explore their own language, advancing pioneering ideas that deliver exceptional furniture and lighting collections.
