Summary of Contents for Alto Professional TrueMix 600

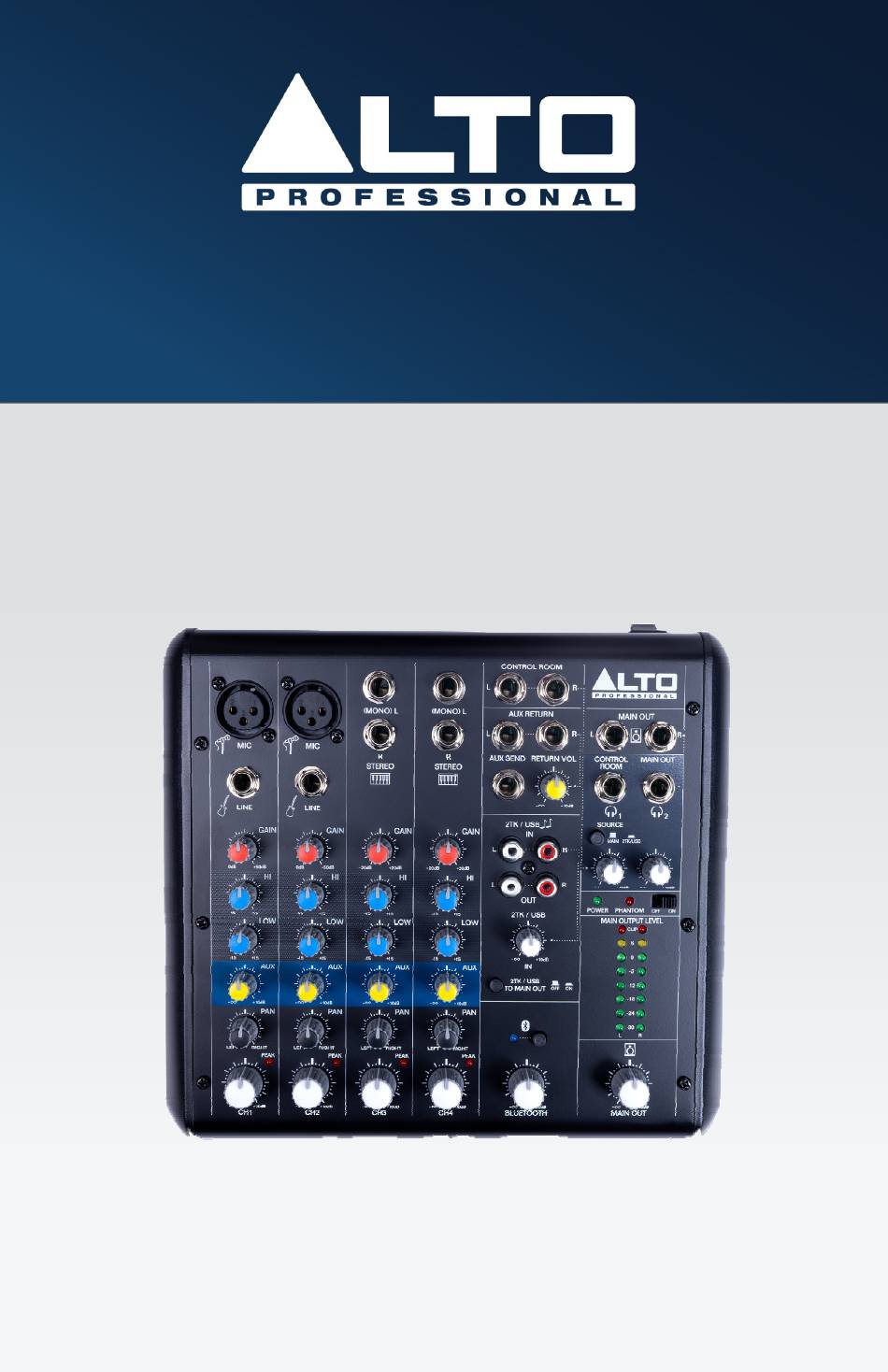

- Page 1 TrueMix 600 User Guide...
-
Page 2: Table Of Contents
Table of Contents (1.0) INTRODUCTION ............4 (1.1) Box Contents ..................... 4 (1.2) Support ....................... 4 (1.3) Important Safety Precautions ............4 (1.4) Sound Level ....................4 (2.0) SETUP ................5 (2.1) Connection Diagram ................5 (2.1.1) Top Panel ........................... 5 (2.1.2) Rear Panel ........................ - Page 3 (5.0) TROUBLESHOOTING ..........16 (6.0) APPENDIX ..............18 (6.1) Technical Specifications ..............18 (6.2) Trademarks & Licenses ...............19...
-
Page 4: (1.0) Introduction
For additional product support, visit altoprofessional.com/support. (1.3) Important Safety Precautions Please note: Alto Professional and inMusic are not responsible for the use of its products or the misuse of this information for any purpose. Alto Professional and inMusic are not responsible for the misuse of its products caused by avoiding compliance with inspection and maintenance procedures. -
Page 5: (2.0) Setup
(2.0) SETUP (2.1) Connection Diagram Items not listed under (1.1) Introduction > Box Contents are sold separately. See the connector examples below for using XLR or 1/4” (6.35 mm) wiring as balanced or unbalanced. This can be of help if you make your own cables. (Ground) (Ground) (Ground) - Page 6 (2.0) SETUP Example 2 – Podcast: Sampler Microphones Studio Monitors Headphones Smartphone...
-
Page 7: (2.1.2) Rear Panel
(2.0) SETUP (2.1.2) Rear Panel Power Computer... -
Page 8: (2.2) Common Setup Scenarios
XLR, 1/4" (6.35 mm), or RCA inputs. 6. If using an external effects unit, connect the Aux Send of TrueMix 600 to the inputs of the effects unit. Connect the outputs of the effects unit to the Aux Return of TrueMix 600. -
Page 9: (2.2.2) Podcasting
3. Make sure all devices are turned off. ∞ 4. Set all TrueMix 600 Gain knobs to -20 dB, Channel Volume knobs to - , Hi and Low EQ knobs to 12 o’clock, and Main Out Volume knob to -∞. -
Page 10: (3.0) Features
(3.0) FEATURES (3.1) Top Panel Mic Inputs: Connect a microphone to these phantom power-equipped inputs using an XLR cable (sold separately). See the Phantom Power Switch feature for more details. Line Inputs: Connect line-level devices to these inputs with 1/4" (6.35 mm) cables (sold separately). - Page 11 (3.0) FEATURES Aux Send Knob: Turn this knob to adjust the signal volume sent from the channel input to the Aux Send Output. This knob also adjusts the signal volume sent back to the Bluetooth channel during use on a phone call with a connected device.
- Page 12 Output. Turn the Main Out Volume down if the Clip LED at the top of the meter lights up excessively. 26. Bluetooth Pairing Button: Press and hold this button to activate Bluetooth pairing mode to connect a Bluetooth device with TrueMix 600. See the section (4.2) Operation > Connecting a Bluetooth Device for further instructions.
-
Page 13: (3.2) Rear Panel
Note: Make sure the Power Switch is in the OFF position before connecting the mixer to a power outlet. USB Out: Connect a USB Type-B cable here to use the TrueMix 600 with a computer for recording and playback. See the section (4.1) Operation >... -
Page 14: (4.0) Operation
(4.0) OPERATION (4.1) USB Recording and Playback To set TrueMix 600 as the default playback device on your computer, follow the set of directions below that corresponds to your computer’s operating system. Note: If you have other USB audio devices connected to your computer, which may have identical names, you may need to try selecting each one until the TrueMix 600 is recognized. -
Page 15: (4.2) Connecting A Bluetooth Device
(4.0) OPERATION (4.2) Connecting a Bluetooth Device Press and hold the Bluetooth button for 3 seconds, then release it. TrueMix 600 will go into Bluetooth pairing mode and the blue LED will begin flashing repeatedly. Bluetooth pairing will time out after 2 minutes if no device is connected. -
Page 16: (5.0) Troubleshooting
(5.0) TROUBLESHOOTING If the mixer is not being detected by your computer: • Connect to a different USB port. • Avoid using passive (unpowered) USB hubs. • Try using a different USB cable. • Disconnect other USB devices. • Disable Windows sleep and screensaver when recording/streaming. If no sound is heard from your speakers: •... - Page 17 TrueMix 600 in the list of available or previously connected devices in your audio device's Bluetooth menu, tap the "gear" or “i” icon located next to it and then select Unpair or Forget. Turn TrueMix 600 off and back on and try pairing again once it reappears in your available devices list.
-
Page 18: (6.0) Appendix
(6.0) APPENDIX (6.1) Technical Specifications Frequency Response All inputs: 20 Hz – 22 kHz (±1 dB) THD+N (Total Harmonic Distortion) All inputs: < 0.05% (@ 4 dBu, 1 kHz) Gain Range Mic inputs (Channels 1-2): 0 - +48 dB Line inputs (Channels 1-2): -15 – +33 dB Line inputs (Channels 3-4): -20 –... -
Page 19: (6.2) Trademarks & Licenses
Alto Professional is a trademark of inMusic Brands, Inc., registered in the U.S. and other countries. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Alto Professional is under license. macOS is a trademark of Apple Inc., registered in the U.S. and other countries. Windows is a registered trademark of Microsoft Corporation in the United States and other countries. - Page 20 Manual Version 1.0...
