Summary of Contents for Alto Professional ZEPHYR ZMX52

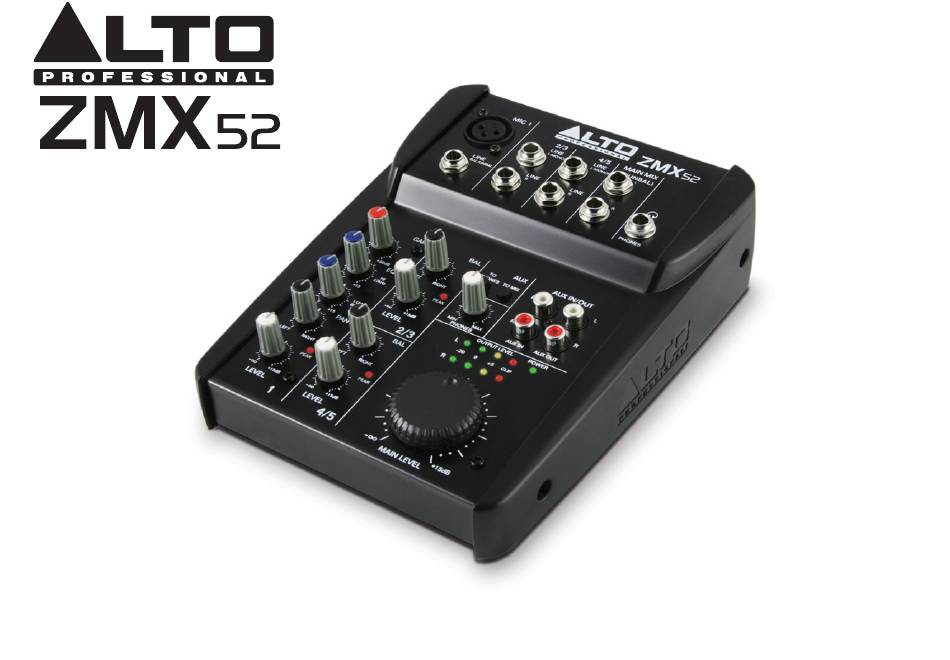

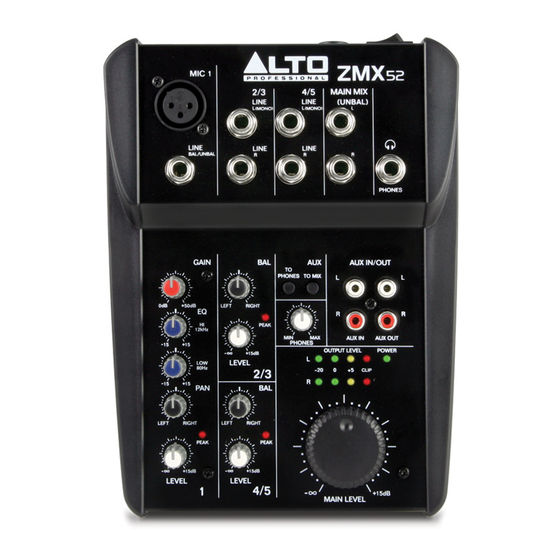

- Page 1 ZEPHYR Mixer...
- Page 4 LINE INPUT s 6.35mm 1/4" cables. Microphone Power Power to connect devices Switch Input MAIN MIX OUTPUTS to Speakers 6.35mm 1/4" cables. connect these outputs to Speakers The Volume level of these outputs is controlled by the MAIN LEVEL knob. PHONES OUTPUT –...
- Page 5 GAIN – Adjusts the channel audio level (pre-fader and pre-EQ gain). Adjust this so that the PEAK LED just barely lights up during the loudest parts of the music HI EQ (TREBLE) Adjusts the high (treble) treble frequencies of the channel. LO EQ (BASS) –...
- Page 6 INPUT MAX MIX OUTPUT LINE Left (UNBAL) LINE Controls incoming volume for Reduce volume 2/3 channel if PEAK lights up LEVEL Reduce volume if PEAK lights up Controls VOLUME MAIN LEVEL to Speakers...
- Page 7 TECHNICAL SPECIFICATIONS FREQUENCY RESPONSE: All inputs: 20 Hz – 22 kHz (±1 dB) THD+N: All inputs: < 0.005% (@ 4 dBu, 1 kHz) GAIN RANGE: Mic inputs (Channel 1): 0 – 44 dB Line input (Channel 1): 12 – 30 dBu Line inputs (Channels 2-5): 0 dBu MAX VOLTAGE GAIN: 74 dB (MIC INPUT to MAIN MIX OUTPUT and AUX OUTPUT)
- Page 8 Mini Stereo jack 1/8" ~3.35mm Cable 2xRCA Phono Jacks Mini Stereo jack 1/8" ~3.35mm 1/4" ~6.35mm Mono Jacks Audio Input Cables...
