Summary of Contents for Alto Professional ZMX164FXUSB
- Page 1 QUICKSTART GUIDE ENGLISH ( 3 – 7 ) MANUAL DE INICIO RÁPIDO ESPAÑOL ( 8 – 12 ) GUIDE D’UTILISATION RAPIDE FRANÇAIS ( 13 – 17 ) GUIDA RAPIDA ITALIANO ( 18 – 22 ) KURZANLEITUNG DEUTSCH ( 23 – 27 ) SNELSTARTGIDS NEDERLANDS ( 28 –...
- Page 3 QUICKSTART GUIDE (ENGLISH) BOX CONTENTS ZEPHYR mixer Power cable USB cable Quickstart Guide Safety Instructions & Warranty Information booklet CONNECTION DIAGRAM External effects rack, Microphones* Keyboard* compressor, etc.* octave push accomp store volume pitch phrase latch a n a l o g m o d e l i n g s y n t h Headphones*...
- Page 4 REAR PANEL FEATURES POWER IN – Use the included power adapter to connect the mixer to a power outlet. While the power is switched off, plug the power supply into the mixer first, then plug the power supply into a power outlet. POWER SWITCH –...

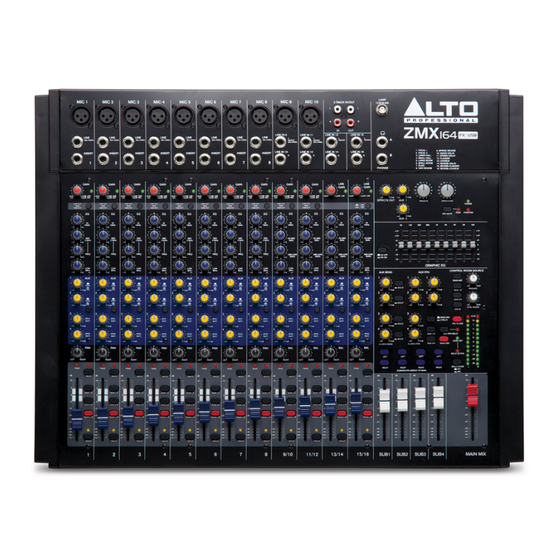

- Page 5 TOP PANEL FEATURES Note: The channels have essentially the same controls with some minor variations between Channels 1-8, 11-12, 15- 16. The three different channel types are shown here. MIC INPUT – Connect a microphone to these inputs with an XLR cable. LINE INPUT –...
- Page 6 2-TRACK INPUTS – You may connect these inputs to the outputs of an external sound source using a standard stereo RCA cable (sold separately). You can send this channel to the Solo Channel (using the CTRL ROOM SOURCE "2 TK IN" switch) and/or the main mix (using the 2TK TO MIX switch).
- Page 7 SUBGROUPS VOLUME – Use these faders to adjust the volume levels of each subgroup. The subgroups' audio will be sent out their respective SUBGROUPS OUTS. When a subgroup has any of its ASSIGN TO MAIN buttons depressed, its audio will also be sent to the main mix. MAIN MIX FADER –...
- Page 8 TECHNICAL SPECIFICATIONS MONO INPUT CHANNELS • Microphone inputs: Electronically balanced, discrete input configuration) • Frequency response: 20Hz to 20kHz, +/-1dB • THD+N: ＜0.03% at 0dBu, 1kHz • Gain range: 0 dB to 50 dB (MIC) • SNR (Signal to Noise Ratio): 114 dB LINE INPUTS •...
