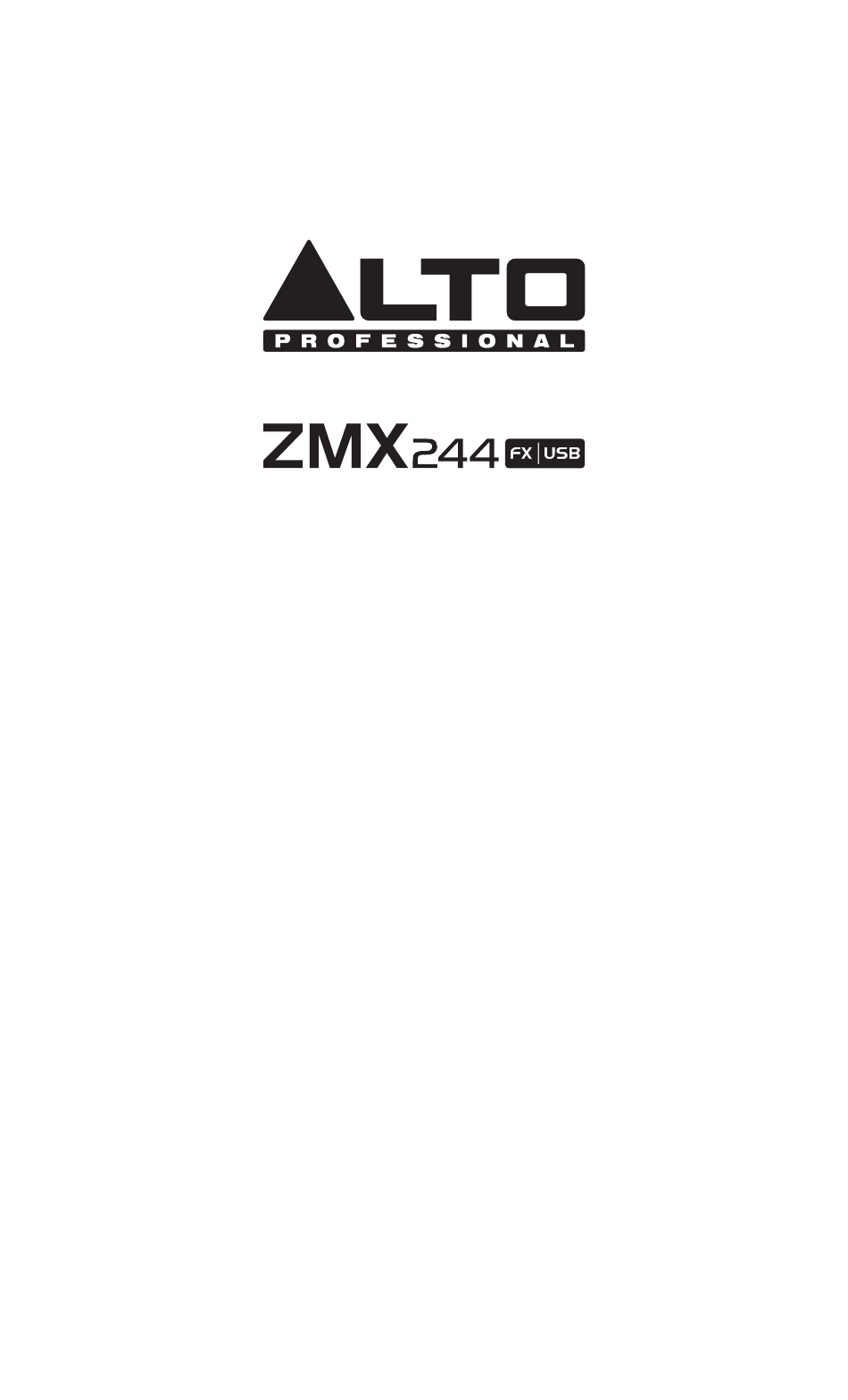

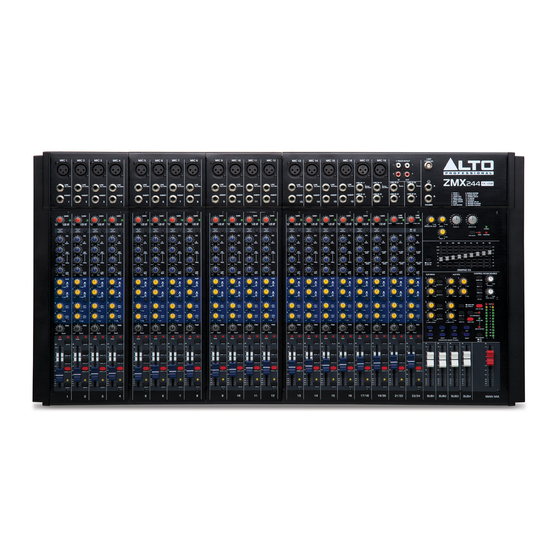

- Page 1 QUICKSTART GUIDE ENGLISH ( 2 – 6 ) MANUAL DE INICIO RÁPIDO ESPAÑOL ( 7 – 11 ) GUIDE D’UTILISATION RAPIDE FRANÇAIS ( 12 – 16 ) GUIDA RAPIDA ITALIANO ( 17 – 21 ) SCHNELLSTART-ANLEITUNG DEUTSCH ( 22 – 26 ) SNELSTARTGIDS NEDERLANDS ( 27 –...
-
Page 2: Box Contents
BOX CONTENTS ZEPHYR mixer Power cable USB cable Quickstart Guide Safety Instructions & Warranty Information booklet CONNECTION DIAGRAM External effects rack, Microphones* Headphones* Keyboard* compressor, etc.* octave push accomp store volume pitch Lamp* phrase latch a n a l o g m o d e l i n g s y n t h TOP PANEL... -
Page 3: Rear Panel Features
REAR PANEL FEATURES 13 14 POWER IN – Use the included power adapter to connect the mixer to a power outlet. While the power is switched off, plug the power supply into the mixer first, then plug the power supply into a power outlet. POWER SWITCH –... -
Page 4: Top Panel Features
TOP PANEL FEATURES Note: The channels have essentially the same controls with some minor variations between Channels 1-16, 17-20, and 21-24. The three different channel types are shown here. MIC INPUT – Connect a microphone to these inputs with an XLR Channel types: cable. - Page 5 2-TRACK INPUTS – You may connect these inputs to the outputs of an external sound source using a standard stereo RCA cable (sold separately). You can send this channel to the Solo Channel (using the CTRL ROOM SOURCE "2 TK IN"...
- Page 6 EFFECTS TO HEAR THE EFFECTS ON A CHANNEL: Use the EFFECTS SELECTOR to choose one of the effects below, adjust the parameter with the VARIATIONS SELECTOR, then turn up the AUX SEND CHANNEL VOLUME 4 for that channel. PRESET DESCRIPTION PARAMETER RANGE Decay time...
-
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS MONO INPUT CHANNELS: Microphone inputs (electronically balanced, discrete input configuration) Frequency response: 20 Hz – 20 kHz, ±1 dB THD+N: 0.03% at 0 dBu, 1 kHz Gain range: 0 dB to 50 dB (MIC) SNR: 114 dB Line inputs (electronically balanced) Frequency response: 20 Hz –...
