Connect to the network and power
1 Plug the Ethernet cable from the home network connection
into the HDMI switch IP control port.
2 Connect the included power adapter into the HDMI switch
power connector. When the power adapter is connected, the
HDMI switch powers on.
Set up the connections
Use Composer Pro to set up the bindings. See the Composer
Pro User Guide (ctrl4.co/cpro-ug) for details, or refer to the
Documentation tab in the device driver.
NOTE:
A zone must be locked to enable 3D features and multi-
channel audio (including lossless formats).
3

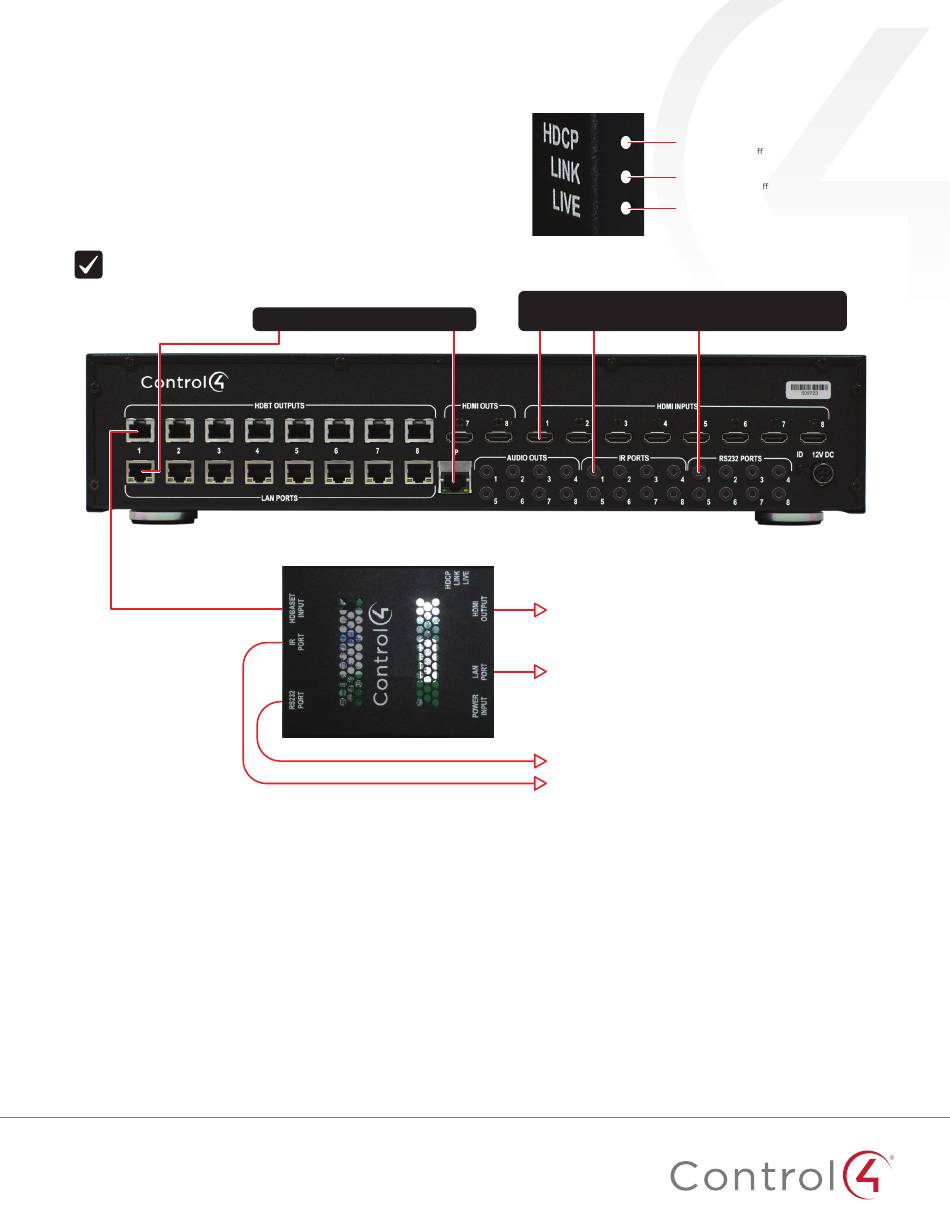

Network Switch
HDBaseT Receiver
Using the HDBaseT Receiver
Indicators
Source Device
(example: controller)
HDMI (output)
LAN (pass-through)
RS-232
IR (pass-through)
HDCP video (solid=HDCP-protected
video passing through, flashing=un-
protected video, o =no video)
HDBaseT link (solid=active,
steady flash=power saving,
random flickering/o =error)
Power (slow blink=power on)
